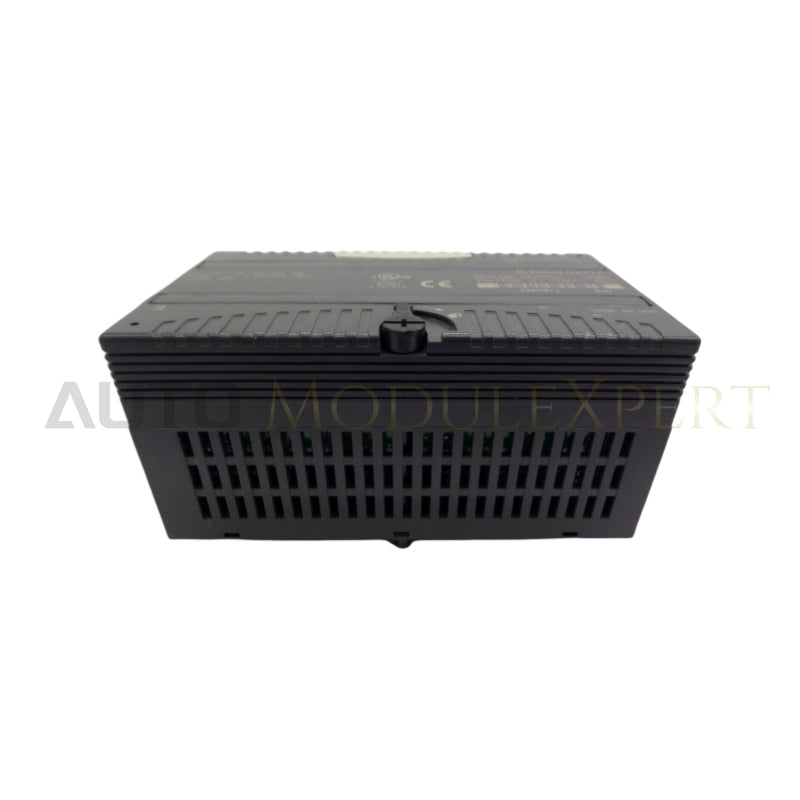

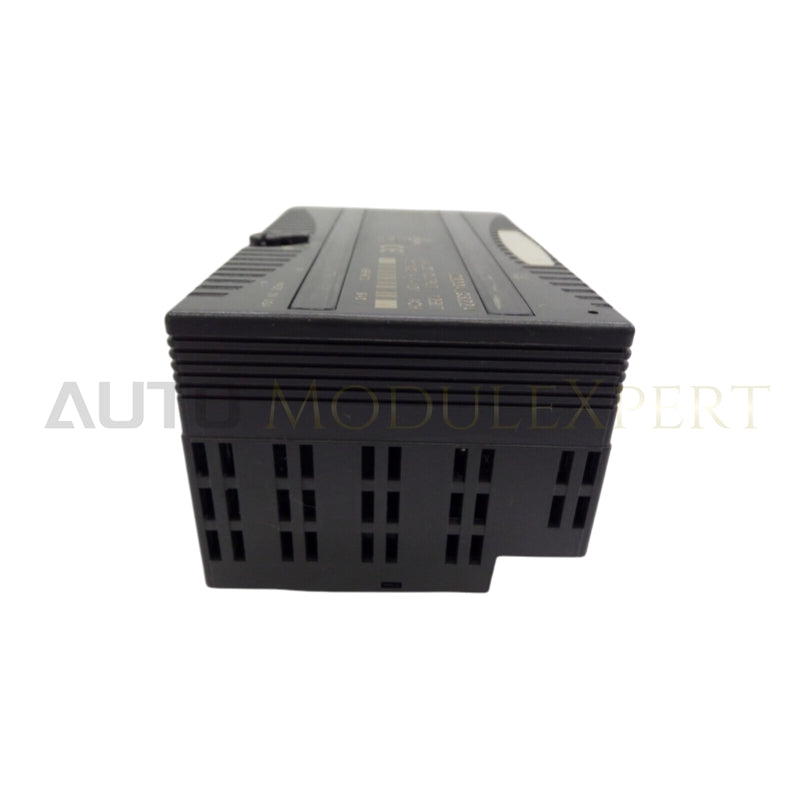

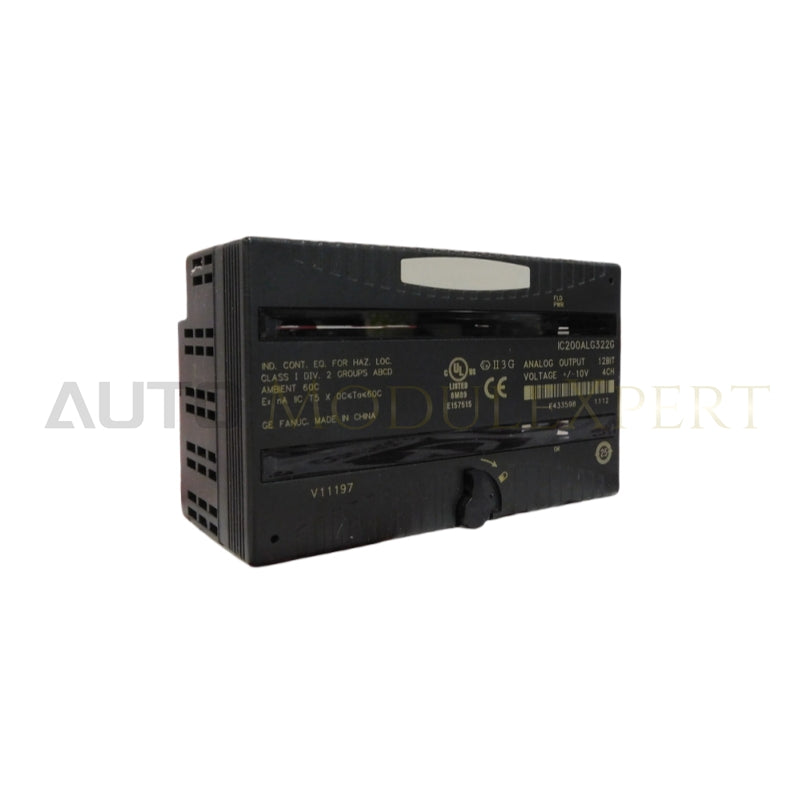

IC200ALG322 Analog Output Module
The IC200ALG322 is a 12-bit analog output module that provides four voltage outputs, each with a range of -10 to +10 VDC. To operate the outputs, an external 24V power supply is required. The module processes intelligent data through the CPU or Network Interface Unit, receiving four words of analog output data.
Specifications
Module Characteristics:
- Channels: 4 single-ended, one group
- Module ID: FFFF9040
-
Isolation:
- User input to logic (optical) and to frame ground: 250VAC continuous; 1500VAC for 1 minute
- Group to group: Not applicable
- Channel to channel: None
-
LED Indicators:
- FLD PWR LED indicates field power is present
- OK LED indicates backplane power is present
- Backplane Current Consumption: 5V output: 50mA maximum
- Thermal Derating: None
- Configuration Parameters: Output default
- Diagnostics: Loss of User Side Power
-
External Power Supply:
- Recommended range: +18 to +30VDC (including ripple)
- Current consumption at recommended range: 160mA max. (including load current)
- 12V operation range: 9.6 to 15VDC, 12VDC nominal (including ripple)
- Current consumption at 12V range: 210mA max. (including load current)
Output Characteristics:
- Output Voltage: +/-10.24VDC
-
Load Characteristics:
- Resistive: 5000 Ohms minimum
- Capacitive: 1.0µF maximum
-
Accuracy:
- At 25 degrees C: +/- 0.3% typ. of full scale, +/- 0.5% max. of full scale
- At 0 to 60 degrees C: +/-1% maximum of full scale
- Resolution: 5mV = 16 counts
- Update Rate per Module: 0.3ms maximum
- Channel-to-Channel Crosstalk Rejection: 70dB minimum
- Output Default: Hold Last State (default), 0 (configurable)
