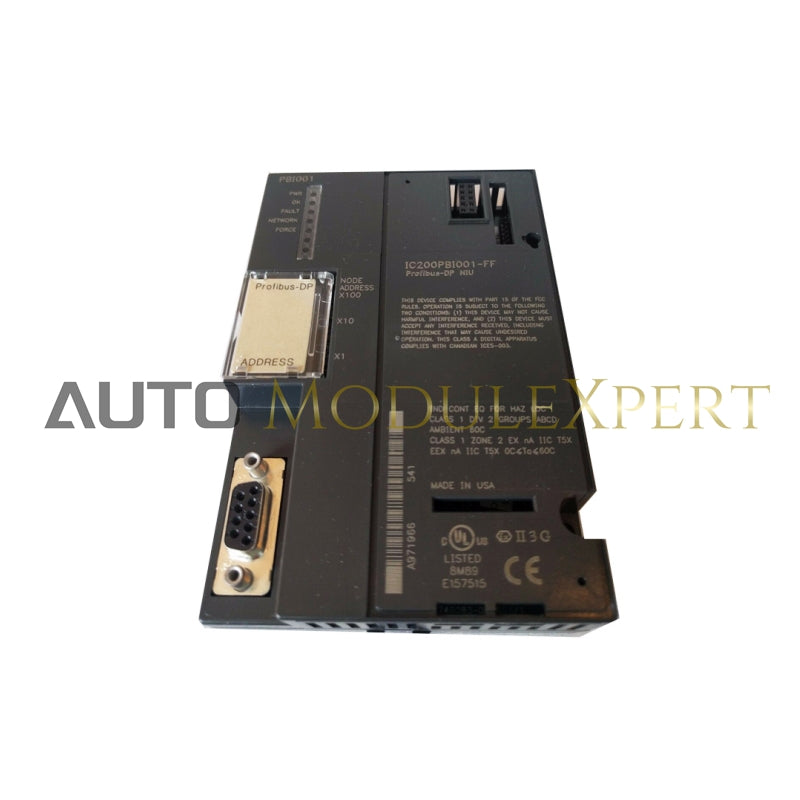

Remote I/O Unit
A Remote I/O Unit connects VersaMax I/O modules to a host PLC or computer via various networks, making it easy to integrate VersaMax I/O into installations such as Genius, PROFIBUS-DP, DeviceNet, or Ethernet. Together with its modules, the Remote I/O Unit forms an I/O station capable of providing up to 256 points of I/O.
Specifications
- Lifecycle Status: Active
- Protocol Supported: PROFIBUS DP
Distance Specifications:
- 96Kbits: 1,200 meters
- 192Kbits: 1,200 meters
- 9375Kbits: 1,200 meters
- 1875Kbits: 600 meters
- 500Kbits: 400 meters
- 15Mbits: 200 meters
- 3Mbits, 6Mbits, 12Mbits: 100 meters
I/O Points:
-
Discrete I/O Points:
- Maximum of 375 bytes
- Up to 244 bytes of inputs or 244 bytes of outputs
-
Analog I/O Words:
- Maximum of 375 bytes
- Up to 244 bytes of inputs or 244 bytes of outputs
-
I/O Data:
- Maximum of 375 bytes
- Up to 244 bytes of inputs or 244 bytes of outputs
Data Update Rate:
- Not Available (N/A)
Network Topology:
- Linear bus (terminated at both ends)
- Stubs are possible
Transmission Media:
- Shielded, twisted pair cable
Connector:
- 9-pin D-sub connector
User Diagnostic Data:
- 2 bytes of status/control
- 5 bytes of standard PROFIBUS diagnostics
Number of Modules:
- 8 modules per NIU/station
Redundancy:
- Not Available (N/A)
Power Consumption:
- 5V Backplane Current: 250 mA
- 33V Backplane Current: 10 mA
Dimensions:
- Width: 133.4 mm (5.25 in)
- Height: 85.9 mm (3.38 in)
- Depth: Not including the height of the power supply
