Overview

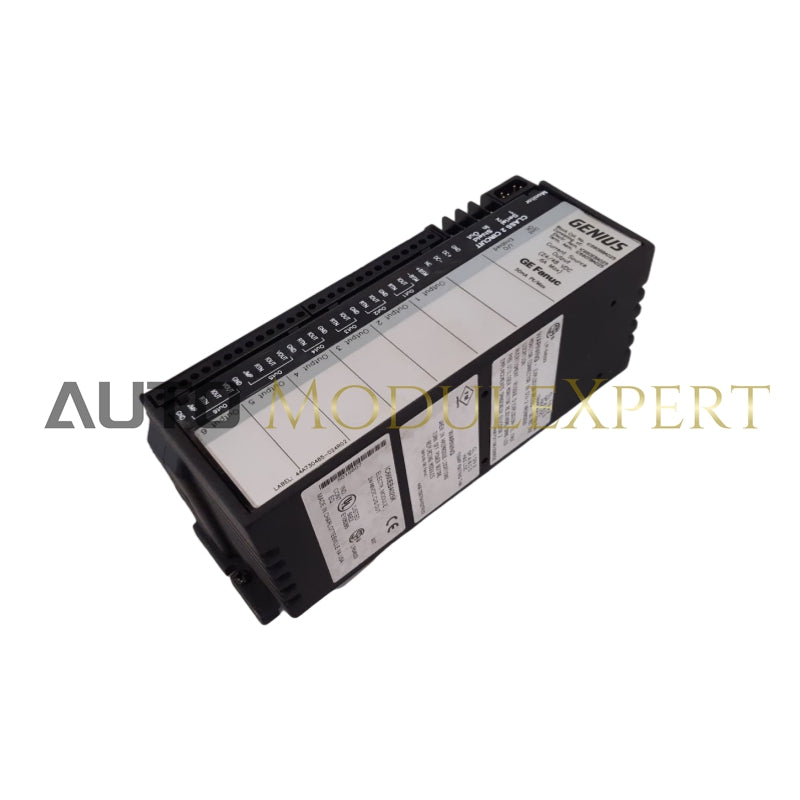

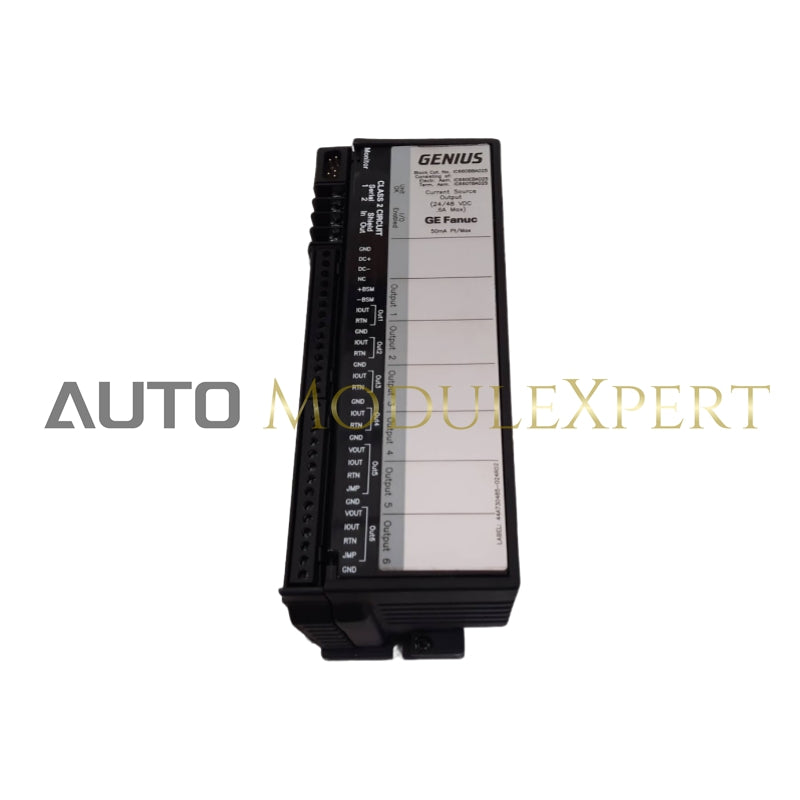

Current-source Analog Output Blocks provide six output circuits for devices requiring 4-20mA signals. Additionally, outputs 5 and 6 can be configured for voltage applications. Two models are available based on power requirements:
- 115 VAC Current-source Analog Output Block (IC66*BBA105)
- 24/48 VDC Current-source Analog Output Block (IC66*BBA025)
Both blocks are identical in functionality, differing only in their power supply specifications.
Block Specifications
-
Size:
- Height: 8.83” (22.44 cm)
- Width: 3.34” (8.48 cm)
- Depth: 3.91” (9.93 cm)
-
Weight: 4 lbs. (1.8 kg)
-
LEDs (I/O Block):
- Unit OK
- I/O Enabled
-
Block to Block Isolation: 1500V for one minute
-
Heat Dissipation: 12 Watts maximum
-
Block Power (nominal):
- 115 VAC
- 125 VDC
- 24/48 VDC
-
Power Supply Voltage:
-
Maximum Current:
- 98-132 VAC: 250mA
- 105-145 VDC: 140mA
- 18-56 VDC: 600mA
-
Frequency/Ripple:
- 47-63 Hz, 10% max. ripple
-
PS Dropout Time:
- 1 cycle (for AC)
- 10 ms min. (for DC)
-
Maximum Current:
Output Specifications
-
Output Accuracy at 25° C: 0.15% of full scale reading
-
Output Resolution: 6 µA
-
Output Update Frequency: 25 ms
-
Range:
- 4 mA to 20 mA
- Overrange capacity: 0 mA to 24 mA
-
Output Diagnostics:
- Underrange
- Overrange
- Feedback error
-
Output Load:
- 0 Ohms to 850 Ohms (current application)
- 0 to 10 mA: 0 to 5-volt application
- 0 to 10 mA: 0 to 20-volt (maximum) voltage application
-
Thermal Drift (from 25°C): 35 PPM per degree C typical
Environmental Specifications
-
Operating Temperature: 0° C to +60° C (+32° to +140° F)
-
Storage Temperature: -40° to +100° C (-40° to +212° F)
-
Humidity: 5% to 95% (non-condensing)
-
Vibration:
- 5-10 Hz: 0.2” (5.08 mm) displacement
- 10-200 Hz: 1G
