Overview

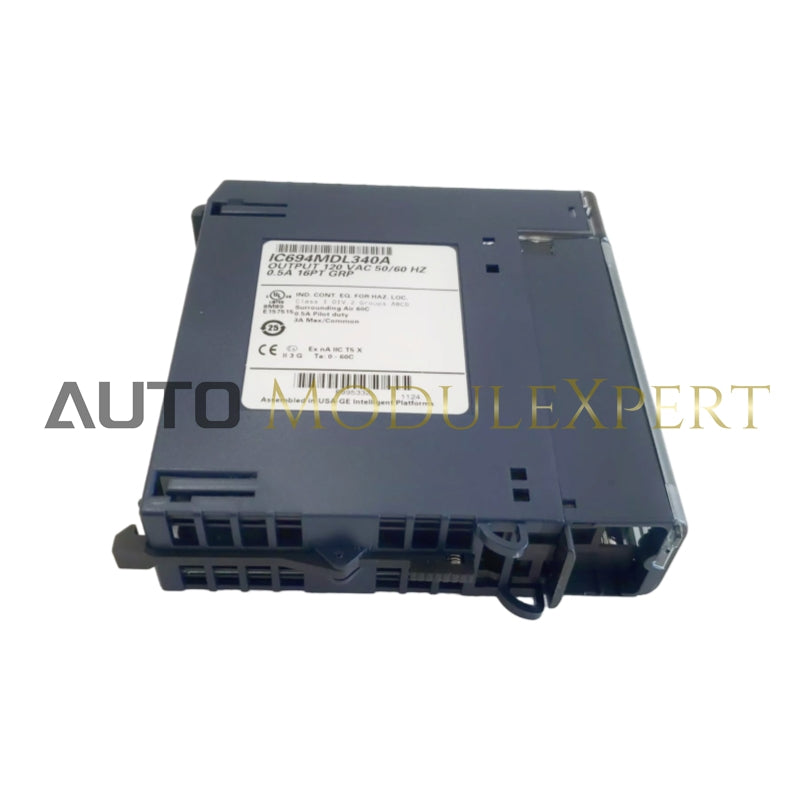

- The IC694MDL340 is a 120 Volt, 0.5 Amp AC Output Module.
- Provides 16 output points in two isolated groups of eight points each.
- Each group has a separate common, with the two commons not tied together inside the module.
- The groups can be used on different phases of the AC supply or powered from the same supply.
- Each group is protected by a 3 Amp fuse.
- RC snubber protects each output against transient electrical noise on the power line.
- Provides high inrush current, allowing it to control a wide range of inductive and incandescent loads.
- AC power to operate loads must be supplied by the user.
- AC power source is required to operate this module.
Specifications
- Rated Voltage: 120 Volts AC
- Output Voltage Range: 85 to 132 Volts AC, 50/60 Hz
- Outputs per Module: 16 (2 groups of 8 outputs each)
Isolation:
- Field to Backplane: Optical, 250 VAC continuous; 1500 VAC for 1 minute
- Field to Frame Ground: 250 VAC continuous; 1500 VAC for 1 minute
- Group to Group: 250 VAC continuous; 1500 VAC for 1 minute
Output Characteristics:
-
Output Current:
- 0.5 Amp maximum per point
- 3 Amps maximum per group
- Inrush Current: 20 Amps maximum for one cycle
- Minimum Load Current: 50 mA
- Output Voltage Drop: 1.5 Volts maximum
- Output Leakage Current: 2 mA maximum at 120 Volts AC
- On Response Time: 1 ms maximum
- Off Response Time: 1/2 cycle maximum
Power Consumption:
- 315 mA (all outputs ON) from the 5-Volt bus on the backplane
