Overview

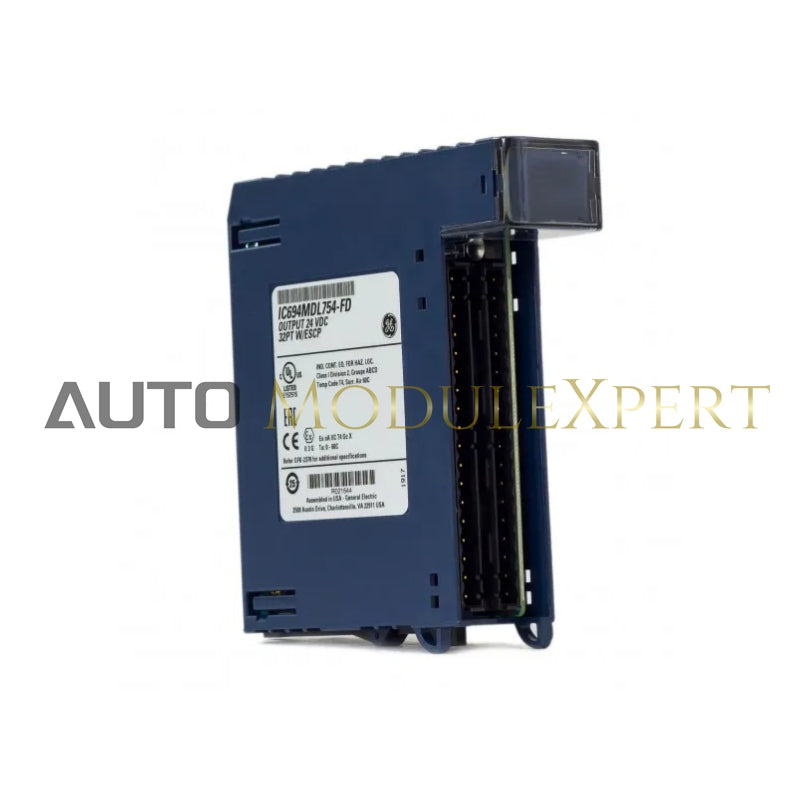

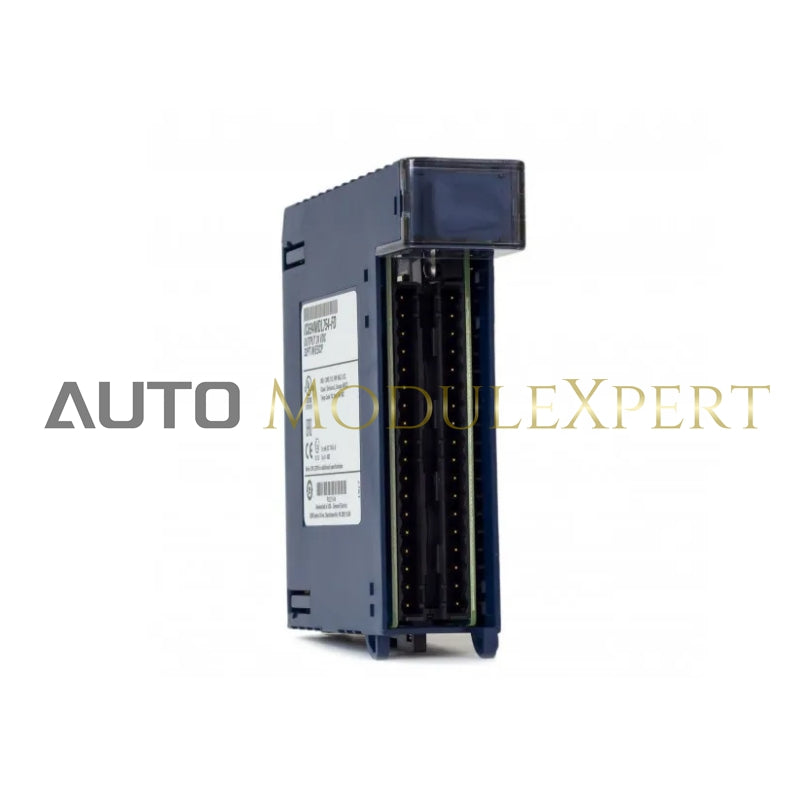

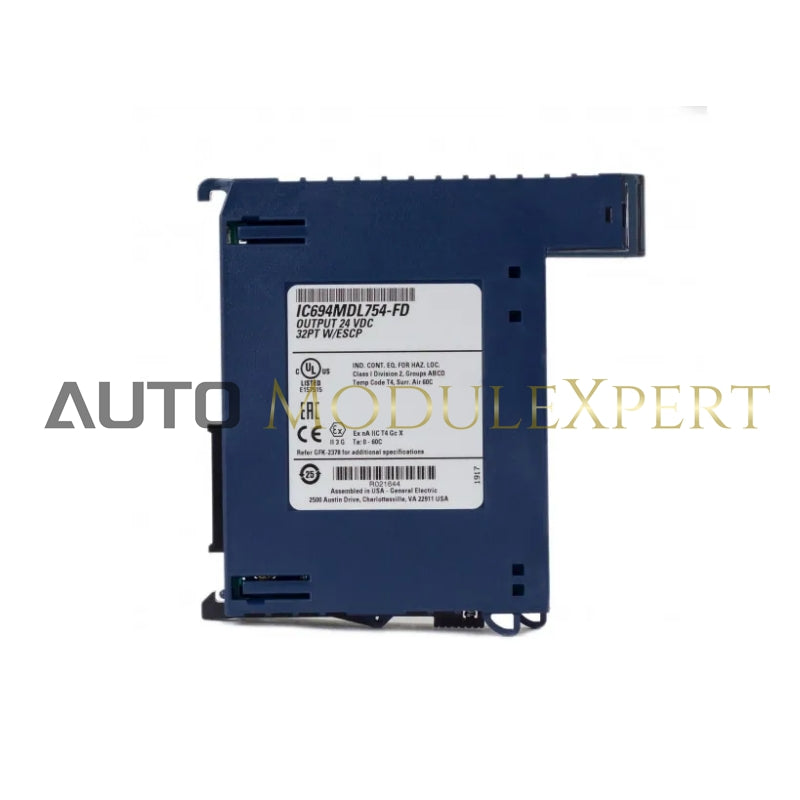

The IC694MDL754 is a 12/24V DC Positive Logic Output module designed to provide 32 discrete outputs, organized into two isolated groups of 16 outputs each. These outputs are sourcing-type, meaning they switch the loads on the positive side of the power supply and supply current to the load. The module operates within a voltage range of +12V to +24V DC (with a tolerance of +25%, -15%) and can source a maximum of 0.75 Amps per output point.
Specifications
- Rated Voltage: 12/24 VDC nominal
- Output Voltage Range: 10.2V to 30V DC
- Outputs per Module: 32 (divided into two isolated groups of 16)
Isolation
- Field to Backplane: 250 VAC continuous; 1500 VAC for 1 minute (optical isolation)
- Group to Group: 250 VAC continuous; 1500 VAC for 1 minute
Output Characteristics
- Output Current per Point: 0.75 Amps
-
Power Consumption:
- Maximum: 300 mA from 5V bus on backplane
- External Power Supply: +12V DC to +30V DC (nominal 12/24V DC)
-
Current Draw for External Power Supply:
- Module Version –CC and later:
- 72 mA per group (with all outputs off)
- 132 mA per group (with all outputs on)
- Module Version –BC and earlier:
- 72 mA per group (with all outputs off)
- 100 mA per group (with all outputs on)
- Module Version –CC and later:
Output Protection and Safety Features
- Inrush Current: 3 Amps for 10 ms without triggering the ESCP trip
- Output Voltage Drop: 0.3 V DC maximum
- Steady-state Overcurrent Trip: 5 Amps typical per point
- Output Leakage Current: 0.1 mA maximum
- On/Off Response Time: 0.5 ms maximum for both on and off transitions
- Protection: Includes short-circuit protection, overcurrent protection, and overtemperature protection, all with auto-recovery functionality.
Thermal Derating
- No derating required at 24V DC. At 30V DC, outputs are derated above 42°C, as specified in the datasheet.
Additional Details
- Module ID: 0x059h
- Environmental: Suitable for operation in environments with typical industrial conditions.
