Overview

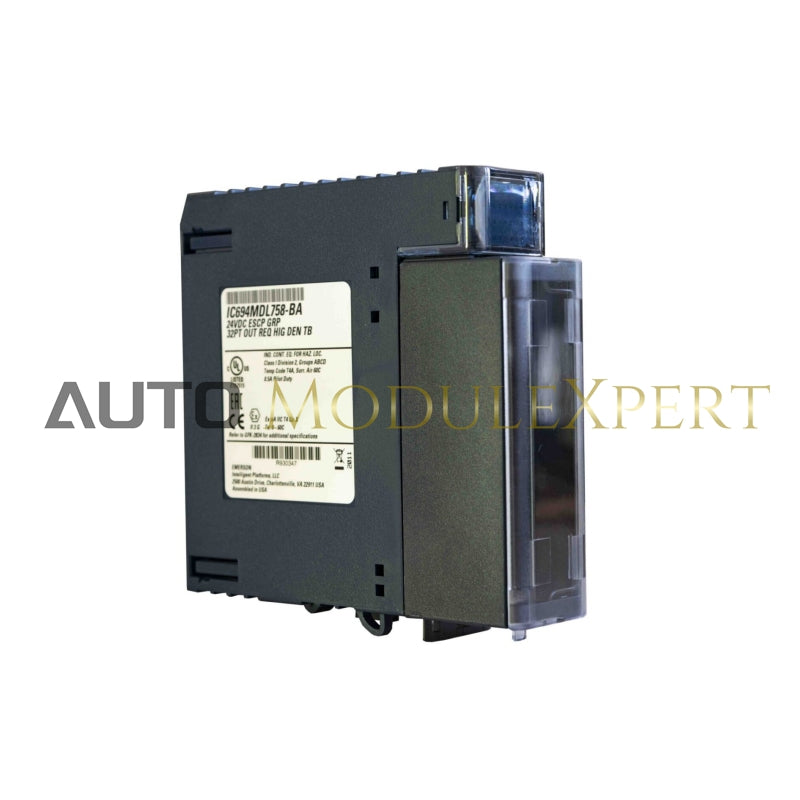

The PACSystems IC694MDL758 is a 12/24 Volt DC, Positive Logic Output module, providing 32 discrete outputs grouped into two isolated groups of 16 outputs each. Each group has its own dedicated common. These outputs are positive logic or sourcing-type outputs, meaning they switch loads on the positive side of the power supply and supply current to the load. The outputs can handle user loads in the voltage range of +12V to +24V DC (with a tolerance of +20% / -15%) and can source a maximum of 0.5 Amps per point.
Specifications
- Rated Voltage: 12V to 24V DC, positive logic
- Output Voltage Range: 10.2V to 28.8V DC
- Outputs per Module: 32 (divided into two groups of 16 outputs each)
-
Isolation:
- Field to Backplane: Optical isolation, 250 VAC continuous; 1500 VAC for 1 minute
- Group to Group: 50 VAC continuous; 500 VAC for 1 minute
-
Output Current (UL Approved Load Ratings):
- 0.5 Amps per point with a maximum of 8 Amps per group without triggering the ESCP (Enhanced Short Circuit Protection)
- 0.5 Amps per point for pilot duty
- 0.5 Amps per point for resistive loads
-
Power Consumption:
- 250 mA (maximum) from the 5V bus on the backplane
- 33 mA (maximum) per group from a user-supplied isolated 24V DC when all 16 outputs in the group are ON
- 20 mA (maximum) per group from a user-supplied isolated 12V DC when all 16 outputs in the group are ON
-
Output Characteristics:
- Inrush Current: 5.4 Amps for 10 ms without triggering ESCP trip
- On-State Voltage Drop: 0.3V DC
- Off-State Leakage Current: 0.1mA maximum
- On-Response Time: 0.5ms maximum
- Off-Response Time: 0.5ms maximum
-
Installation Environment:
- Surrounding Air Temperature: Maximum 60˚C
- Pollution Degree: Rated for use in Pollution Degree 2 environments
