Overview

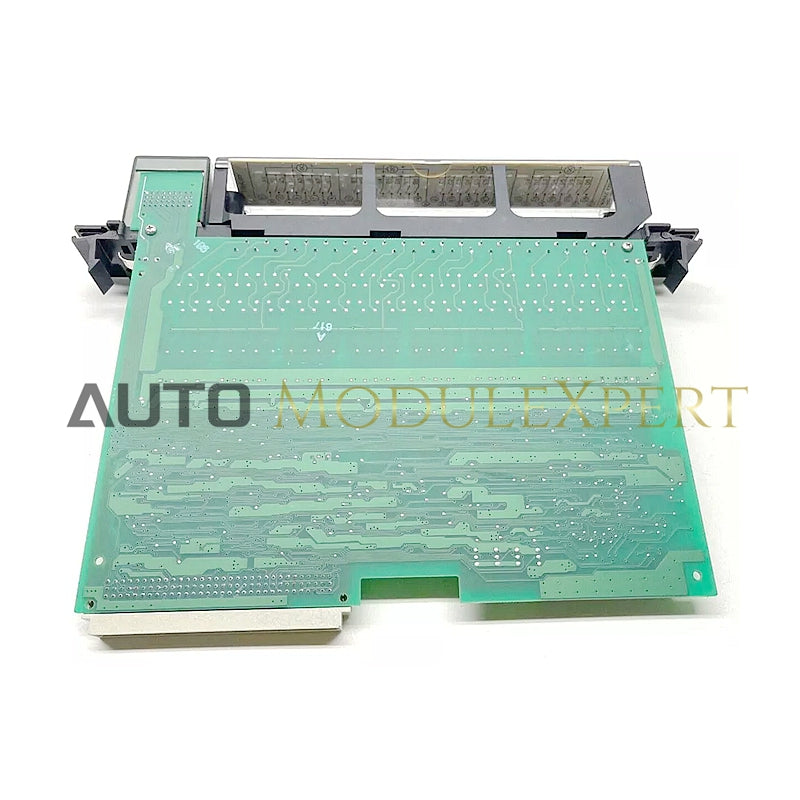

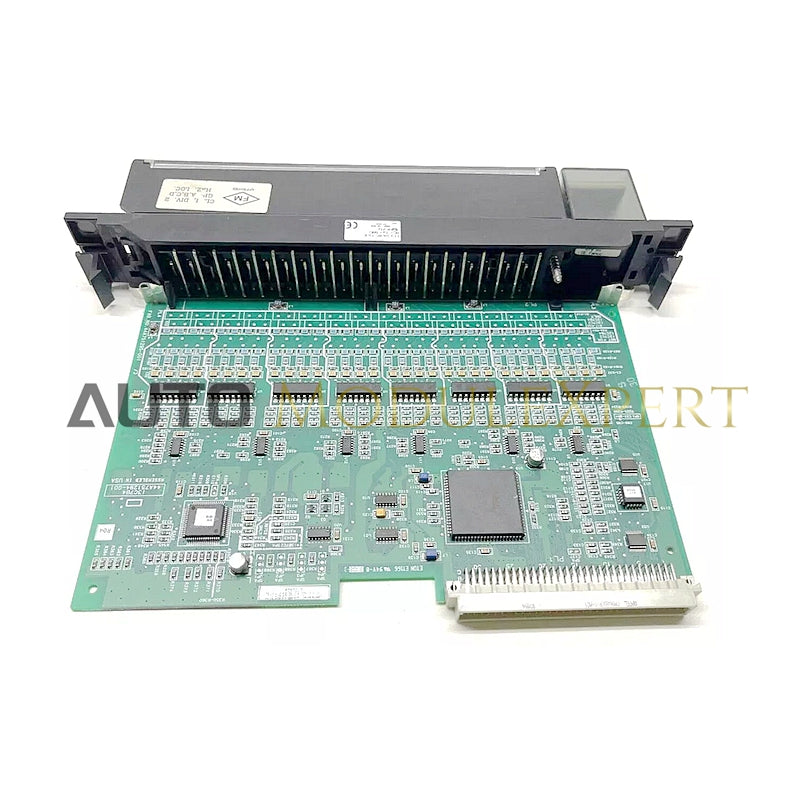

The IC697MDL653 is a 24 VDC discrete input module from GE Fanuc, designed for the Series 90-70 Programmable Logic Controller (PLC) systems. It features 32 discrete input channels, grouped into 4 sets of 8 channels, supporting both positive and negative logic wiring configurations.
Technical Specifications
- Input Voltage Range: -3 to +30 VDC
- Rated Voltage: 24 VDC
- Input Current: 10 mA per channel
- On-State Voltage: 13.5 to 30 VDC
- Off-State Voltage: 0 to 5 VDC
- On-State Current: 6 to 15 mA
- Off-State Current: 0 to 2 mA
- Input Delay: 1 ms or 10 ms (configurable)
- Isolation: 1500 VDC between input and backplane; 500 VDC between input groups
- Required Current: 300 mA
Features
- Groups: Four (4) groups of eight (8) channels each
- Input Type: Positive / Negative Logic

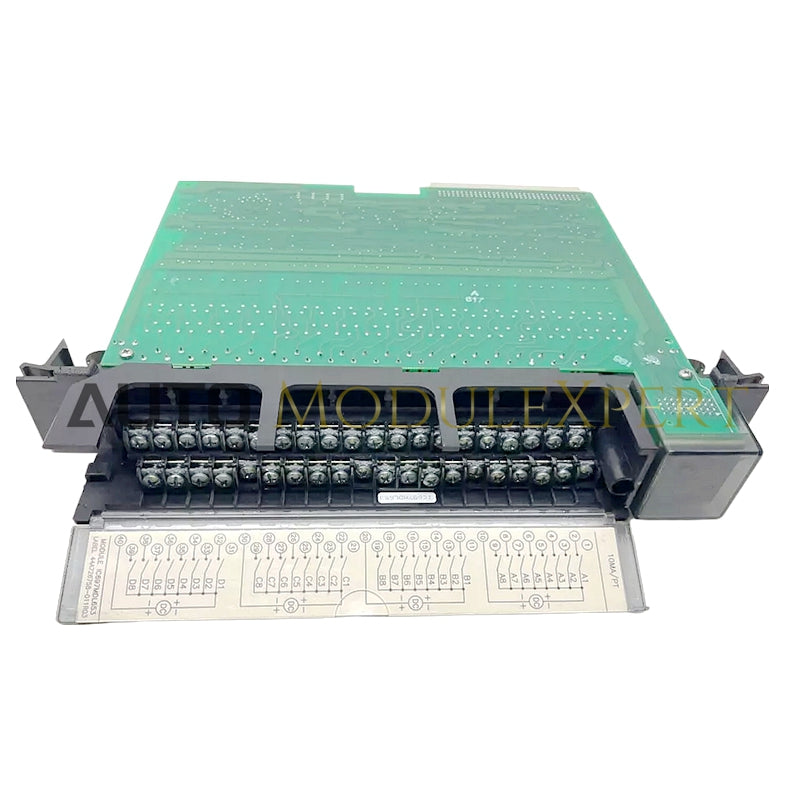

- Connector: Dedicated common terminal for each input group
- Input Impedance: 2.6 KΩ
- LED Indicators: Top status LED indicators for each input
- Software: Configured using MS-DOS software compatible with Windows 95
- Interrupt Capable: Single input capable of functioning as an interrupt when used with compatible PLCs
Installation & Maintenance
- Wiring Configuration: Selectable positive/negative logic at the group level
- Status LEDs: Provide insight into the status of each input channel
- Configuration: No need for DIP switches or jumpers for I/O configuration
