Overview

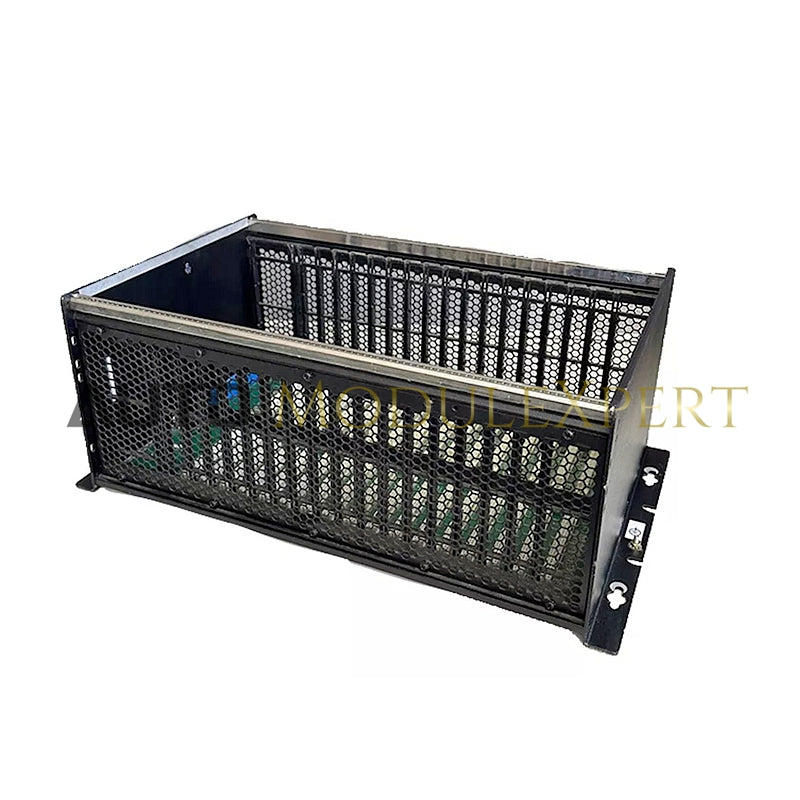

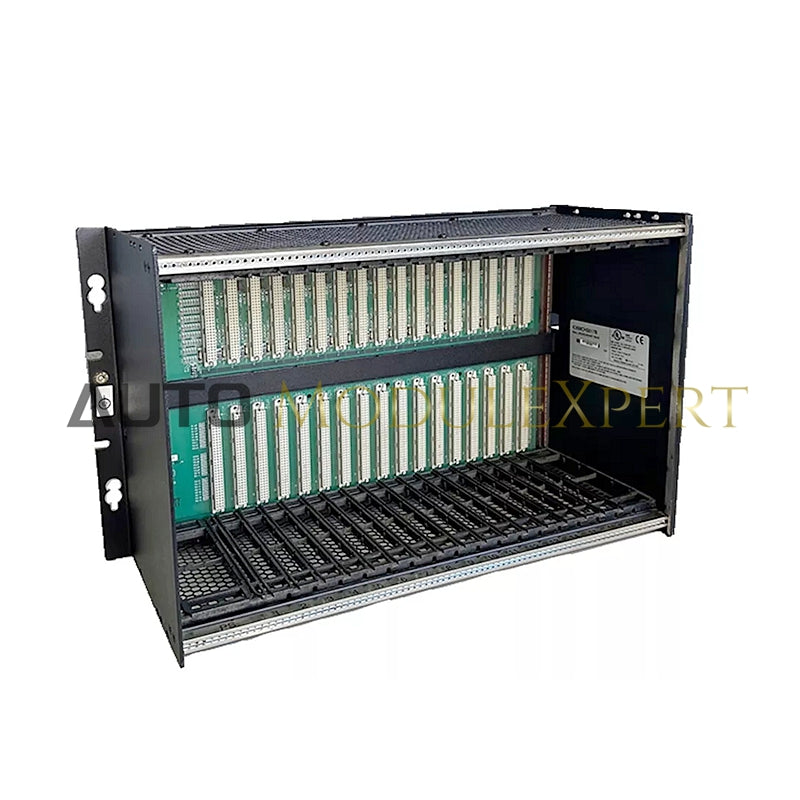

The GE Fanuc IC698CHS017 is a 17-slot I/O Rack designed for the Rx7i PACsystem. This rear-mounted rack offers software configurability and supports the VME64 backplane system for all Rx7i CPUs and I/O configurations, as well as Series 90-70 I/Os and VME modules.
Key Features
- I/O Capacity: 17 slots for versatile configuration.
- VME64 Backplane: Delivers speeds nearly four times faster than standard VME systems.
- Built-in Slot-Sensing Capability: Eliminates the need for jumpers or DIP switches for I/O reference addressing.
- Power Supply Support: Compatible with high-wattage Rx7i power supplies (350 Watts).
- Open-Style Design: Requires an enclosure with an IP 54 rating or higher for factory floor use.
Technical Specifications
- Brand: GE Fanuc
- Series: Rx7i PACsystem
- Part Number: IC698CHS017
- Description: I/O Rack
- Application: Rx7i System
- Operating Voltage: 5 to 12 Volts DC
- Current Rating: 60 Amps at 5 Volts DC, 4.0 Amps at 12 Volts DC
- Approximate Dimensions: 11.2 x 19.0 x 7.5 inches (H x W x D)
- Mounting Type: Rear Mounting
Additional Information
-
Slot Configuration:
- Slots 1-17 spaced 0.8 inches apart for single-slot I/O modules.
- Slot 1 reserved for CPU modules; Slot 0 reserved for power supply.
- Supports 15 single-width I/O modules, 8 double-width modules, or a combination thereof.
-
Software Compatibility:
- Configurable using Windows-based CIMPLICITY Machine Edition Logic Developer-PLC software.
-
Operating Temperature Range: 0 °C to 60 °C
