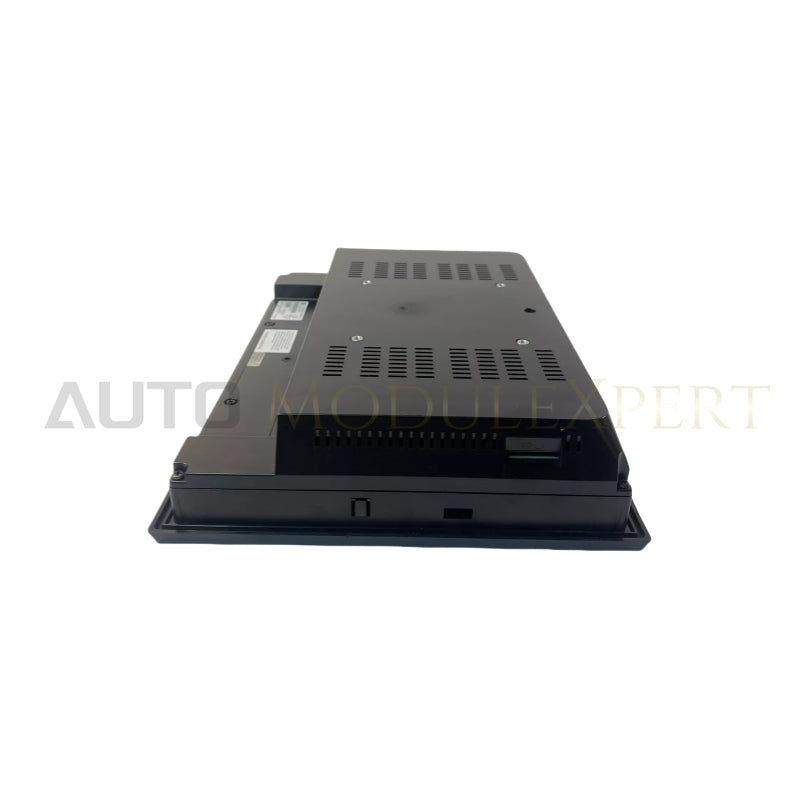

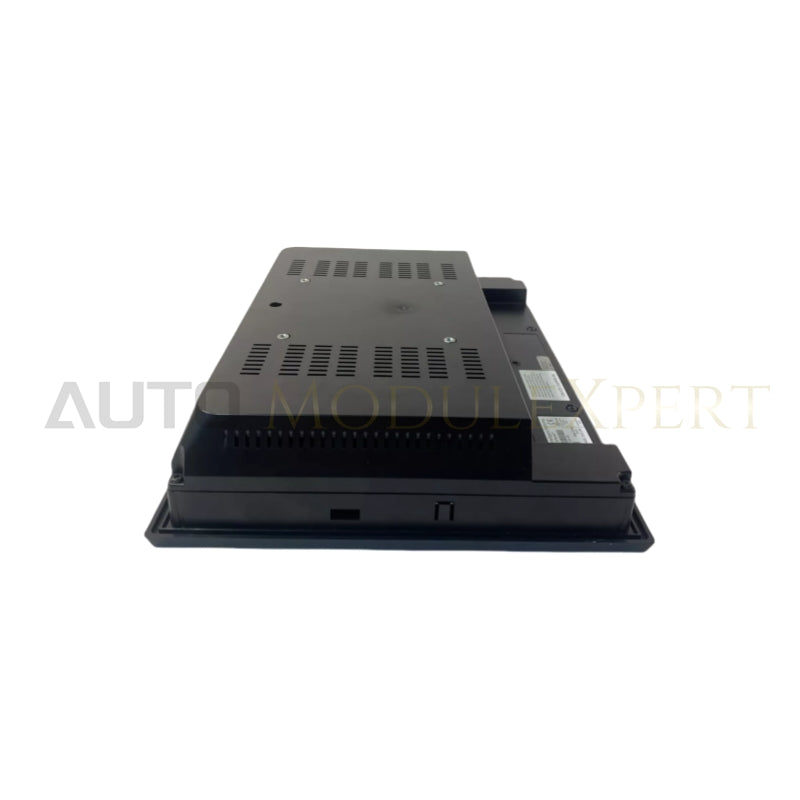

Overview
The QuickPanel+ operator interface is a versatile all-in-one microcomputer designed for maximum flexibility. Built on an advanced ARM core microprocessor, it combines a high-resolution touchscreen with multiple communication options, allowing seamless connections to most industrial equipment through its various communication ports.
To meet the demands of complex applications, the QuickPanel+ features multiple types of memory. A portion of DRAM is allocated between the operating system, object storage, and application memory. Acting as a virtual hard drive, a segment of non-volatile flash memory is dedicated to both the operating system and persistent storage for application programs. Additionally, the device includes retentive memory, consisting of battery-backed SRAM, which safeguards your valuable data during power outages.
Specifications
Processor: Freescale i.MX535 (1GHz ARM Cortex A8)
Memory
- RAM: DDR3 SDRAM 1 GB
- ROM: SLC NAND 512 MB
- SRAM: 512 KB (with Battery backup)
Operating System: Microsoft Windows Embedded Compact 7
Display
- Type: IC755CSS12CDA: 12.1” Std TFT LCD
- Resolution: 800(W) x 600(H) pixels (SVGA)
- Color: 65,536 colors
- Brightness: 450 cd/m²
- Backlight: LED
Touchscreen
- Touch Panel Type: Projected Capacitive
- Multi-touch: Two-point

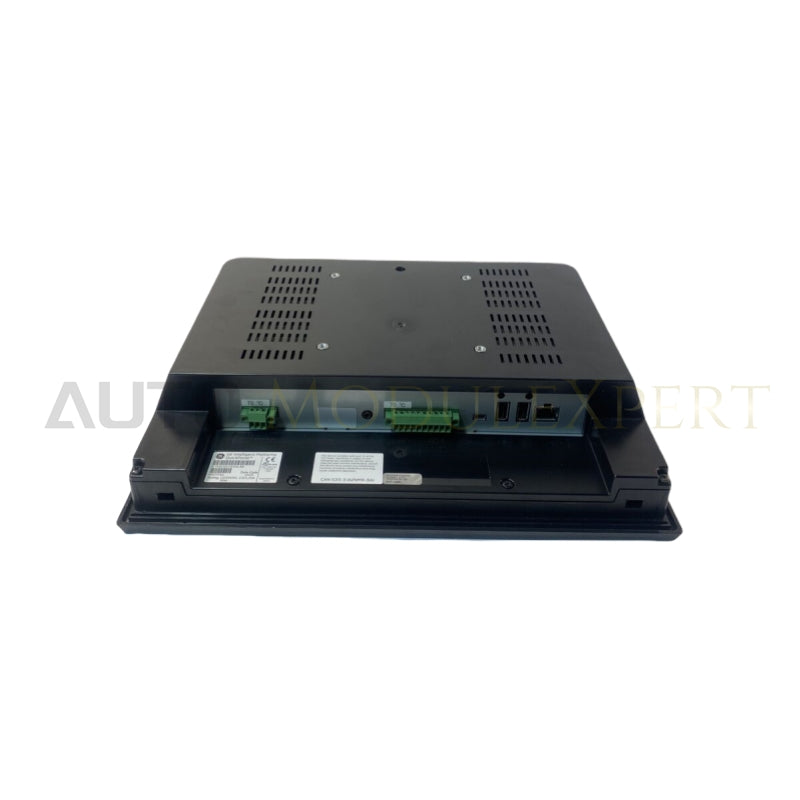

Communications
- Ethernet Port: 1x 10/100BaseT (RJ-45)
- Serial Port: 1x RS-232 UART Port, 1x RS-232/422/485 Port (10-Pin Connector)
-
USB Host:
- 2x USB 2.0 (Type-A)
- Max. Power: 5 V at 0.5 A
- USB Device: 1x USB 2.0 (Mini Type-B)
- Storage: 1x SD/SDHC Card Slot
Audio
- Audio Ports: 1x Line Out (Stereo) (3.5 mm Jack)
Noise Immunity
- Noise Voltage: 1500 V p-p
- Pulse Duration: 1 µs
- Rise Time: 1 ns
Input Power
- Rated Voltage: +12/24 V dc ±20% (3-Pin Connector)
Power Consumption: 30 W (max), 2.5/1.25 A
Frame Ground: Frame GND is connected to Signal GND internally
Dimensions (L × W × D): 314 × 248 × 65 mm (12.36 × 9.76 × 2.56 in)
Weight: 3 kg (6.61 lbs)
Mounting Options
- Panel Cutout Dimensions: 302 × 228 mm (11.89 × 8.98 in)
- VESA Mount: 100 × 100 mm (3.94 × 3.94 in)
