Overview

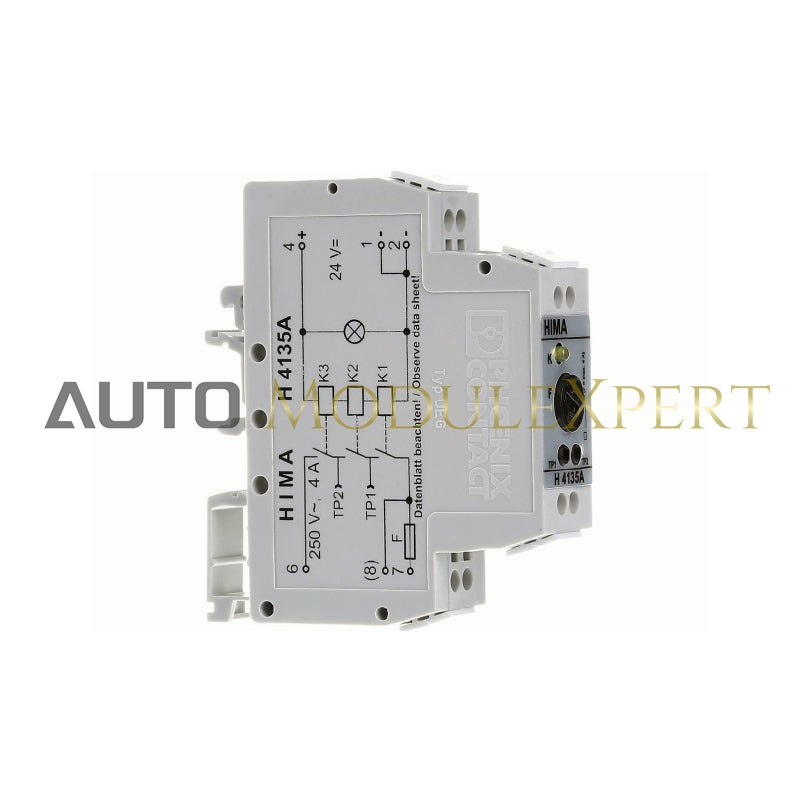

H 4135A: Relay Amplifier in a Terminal Case
For safety-related circuits in RC1...RC6 according to DIN V 19250 / 01.89.
Specification
-
Input:
- 24 V DC / -15...+20 %
- ≤ 40 mA
-
Output:
- Floating NO (Normally Open) contact
-
Relay Data:
- Refer to reverse (specific relay data details not provided)
-
Switching Time:
- Approx. 8 ms
-
Reset Time:
- Approx. 6 ms
-
Ambient Conditions:
- Temperature: -25...+60 °C
-
Degree of Protection:
- IP 20 according to DIN 40050
-
Wiring:
- Max. cross-section: ≤ 2.5 mm² (AWG 14) connecting wires
-
Mounting:
- Mounts on top-hat rail (DIN 32 mm) or C-profile
- Mounting position: Horizontal or Vertical
- Assembling distance: Not required
-
Dimensions:
- 70.5 x 80 x 20 mm
