System Overview
- System H41q-HS / B 4237-1: Includes slots for communication modules
- System H41q-HRS / B 4237-2: Includes slots for communication modules
- Compact PES: Designed for high and highest availability
Parts Included in the Assembly Kit B 4237-1/-2:
-

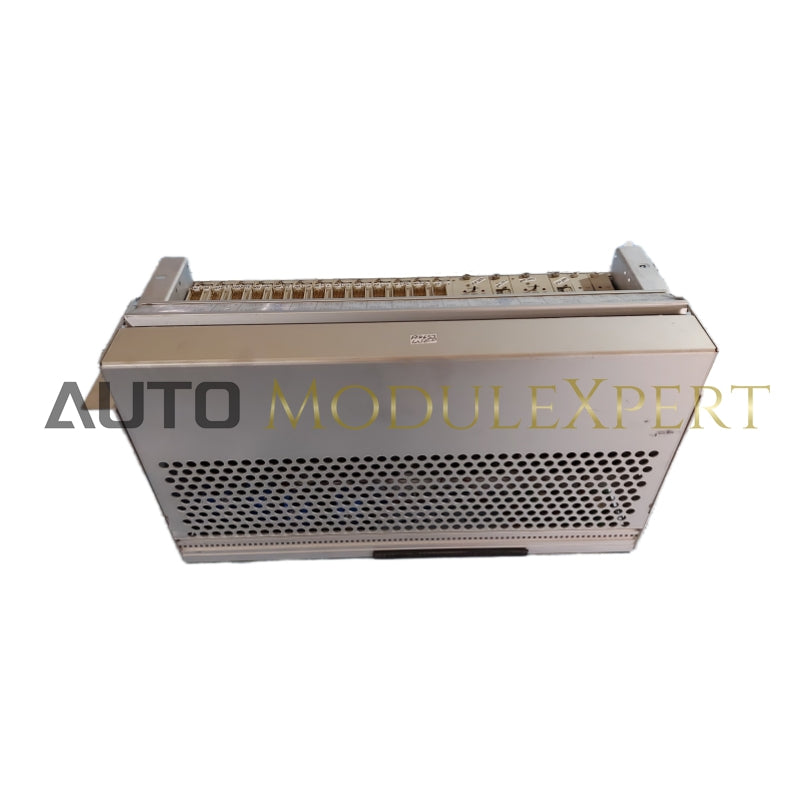

1 x K 1409 System Rack
- 5 units high, 19-inch
- Integrated cable tray
- Hinged receptacle for label
- Rear buffer batteries (G1, G2)
- HIMA Part No.: 44 0000016
- Recommendation: Change buffer batteries every 4 years
-

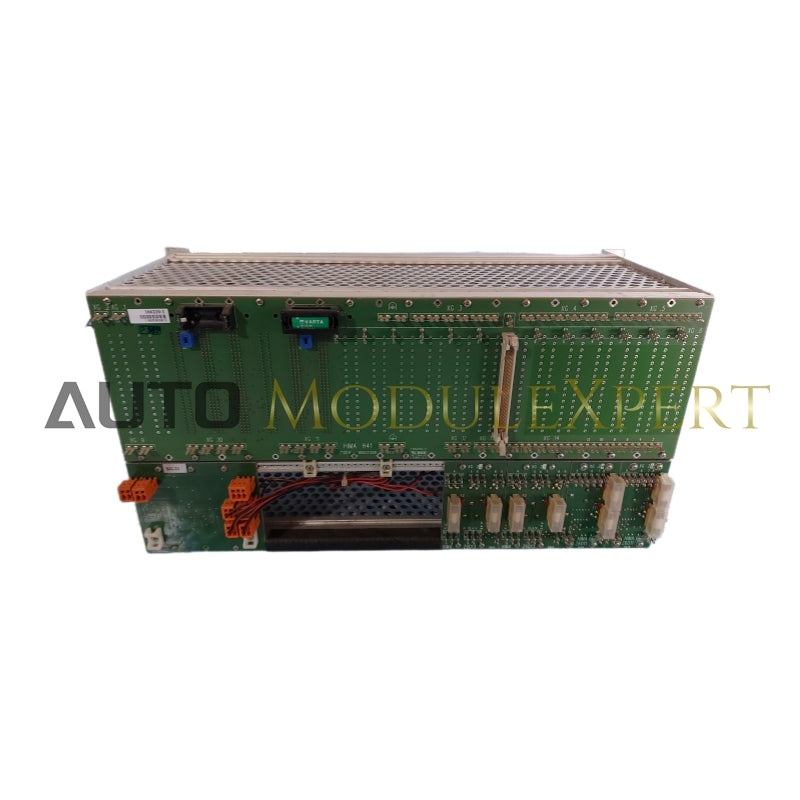

Additional Modules on the Rear:
- 2 x Z 6011: Decoupling and fusing for power supply modules
- 1 x Z 6012: Fan with fan run monitoring and fuse monitoring
- 2 x Z 6013: Decoupling and fusing for the supply voltage of the WD signal
- 1 x Z 6007: Jumper plug (included only in B 4237-1)
- 1 x Z 6017: Jumper plug (included only in B 4237-2)
-

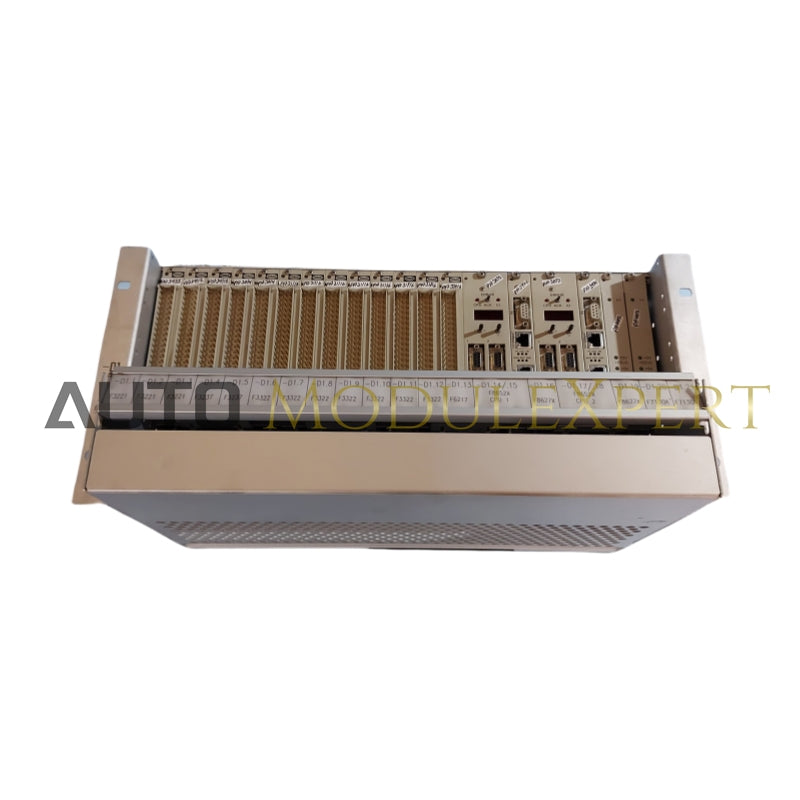

Modules Included:
- 2 x F 8652A: Central module (CU1, CU2)
-
2 x F 7130A: Power supply module 24/5 V DC (PS1, PS2)
- The 5V outputs of both power supplies are connected in parallel
Optional Modules (Separate Order):
- 2 x F 8621A, F 8625, or F 8626: Communication modules (CM1, CM2)
-
Max. 13 I/O Modules
- Slot 1 to 13 for central modules (if using B 4237-2 assembly kit):
- Slot 1 to 7 related to Central Module 1
- Slot 8 to 13 related to Central Module 2
- Slot 1 to 13 for central modules (if using B 4237-2 assembly kit):
System Compatibility:
- Usable with operating system BS 41q/51q V7.0-7 or later
