Overview

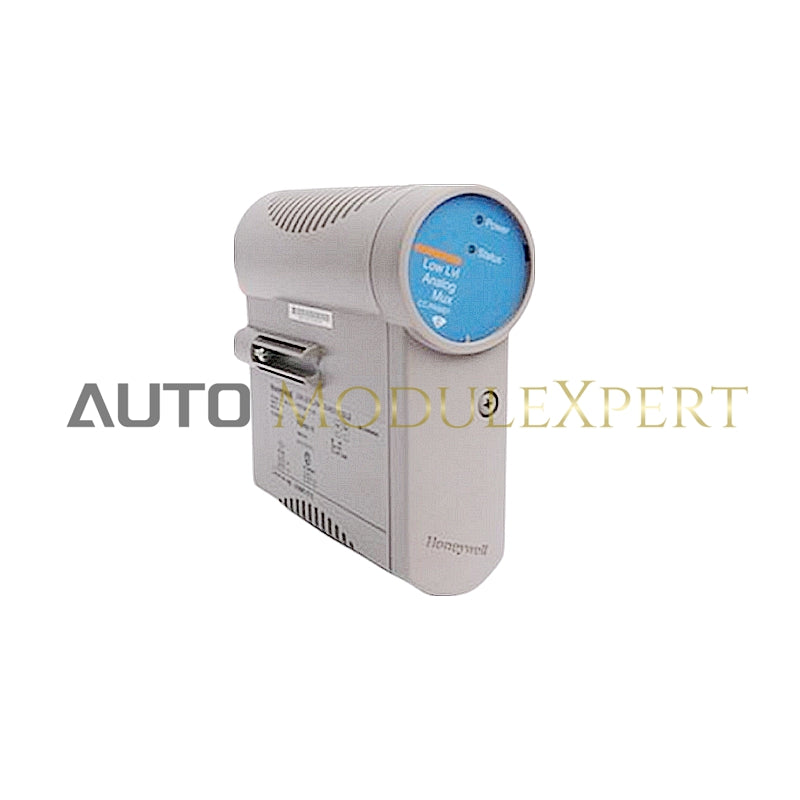

The 8C-PAIMA1 is a low-level analog input module designed for measuring thermocouple (TC) and resistance temperature detector (RTD) temperature signals. It offers high accuracy, reliability, and versatility, making it suitable for a wide range of industrial applications.
Technical Specifications
- Input Voltage Rating: 24 VDC
- Module Current Rating: 120 mA
- Input Scan Rate: 1 second fixed by IOM (up to 16 channels/sec max.)
- Channel Bandwidth: 0 to 4.7 Hz (-3 dB)
- Nominal Input Range (TC only): -20 to +100 millivolts
-
Maximum Normal Mode Continuous Input Non-Damaging:
- -10 to +10 volts (TC)
- -1 to +2 volts @ 100 milliamps (RTD)
- Gain Error: 0.050% full scale max
-
Temperature Stability:
- TC, millivolt inputs +/-20 ppm per deg C max
- RTD inputs +/-20 ppm per deg C max
- Long Term Drift: 500 ppm
- Input Impedance: 1 megohm at dc (TC only)
- Cold Junction Compensation Range: -20 to +60 deg C (± 0.5 deg C typical)
- TC Linearization Accuracy: 1 ± 0.05 Ω / deg C
-
Open Thermocouple Detection:
- Each conversion qualified
- ≤ 1000 Ω = guaranteed no-trip
- ≥ 1500 Ω = guaranteed trip
- RTD Max Lead Resistance: 15 Ω
- Surge Protection: EN 61000-4-5 (for Industrial locations, 1kV line to line, 2kV line to gnd)
