Overview

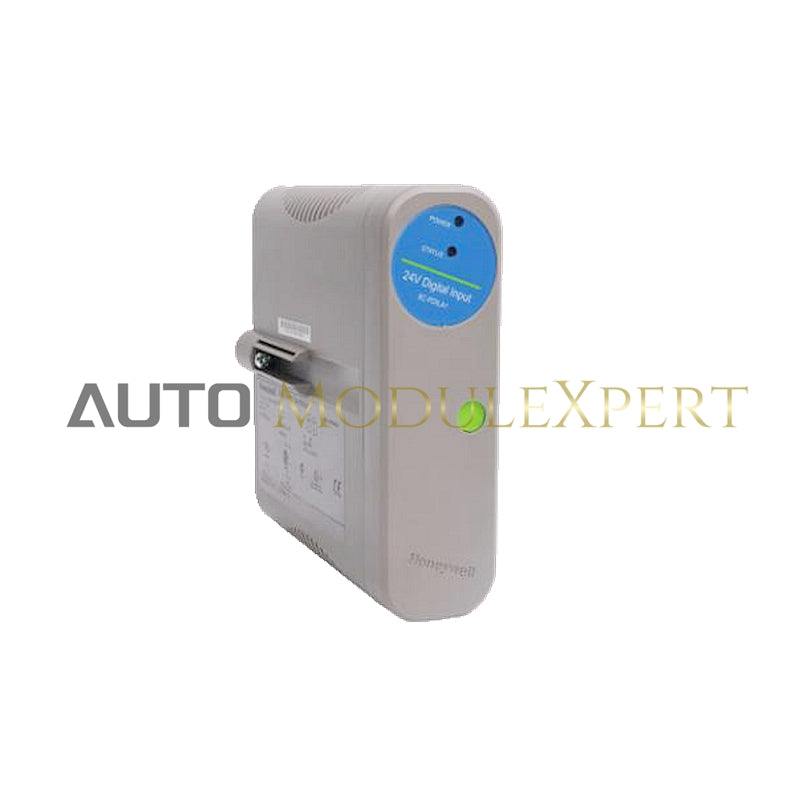

The 8C-PDILA1 is a digital input module designed to provide 24 VDC input for monitoring various devices. It offers high reliability, versatility, and ease of use, making it suitable for a wide range of industrial applications.
Technical Specifications
- Input Channels: 32
- Galvanic Isolation (any input terminal referenced to common): 1000 VAC RMS or ±1500 VDC for System
- Isolation Technique: Optical (In IOM)
- Voltage Rating: 24 VDC
- DI Power Voltage Range: 18-30 VDC
- Module Current Rating: 95 mA
- DI Power Voltage Range: 18 to 30 VDC (For user supplied field power)
- ON Sense Voltage/Current: 13 VDC (min) or 3 mA (min)
- OFF Sense Voltage/Current: 5 VDC (max) or 1.2 mA (max)
- Input Impedance: 4.2 KΩ
- Absolute Delay Across Input Filter and Isolation: 5 ms ± 20%
- Field Resistance for Guaranteed ON Condition: 300 Ω max @ 15 VDC
- Field Resistance for Guaranteed OFF Condition: 30 KΩ min @ 30 VDC
- Module Removal and Insertion Under Power: Supported
