Description

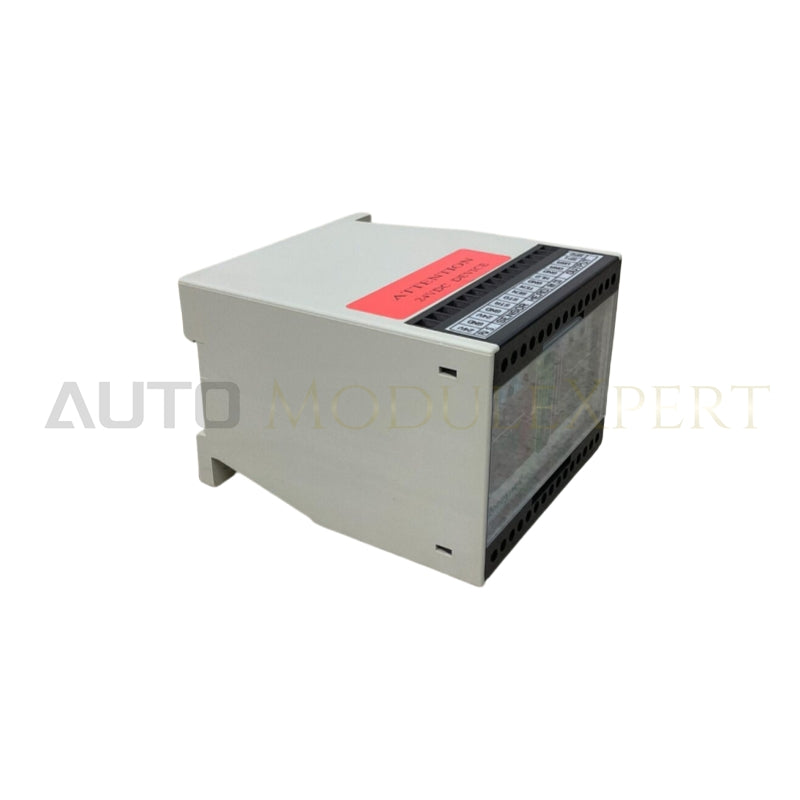

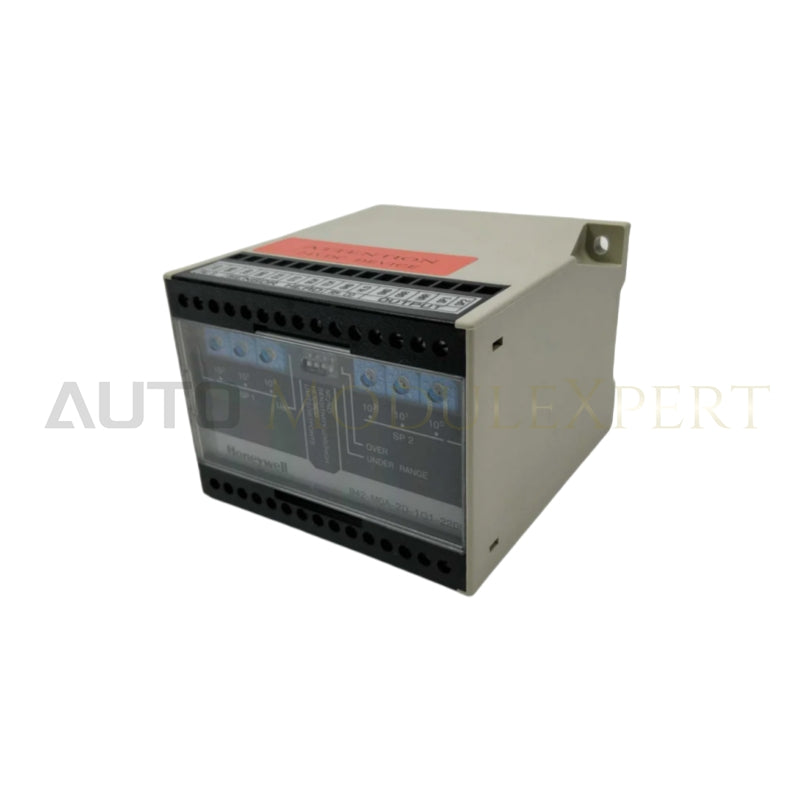

The 942 series industrial controls utilize ultrasonic beams for distance measurement. The sensor head requires no adjustments and can be mounted in remote or challenging locations such as the tops of tanks or inside machinery. The control box, which is mountable on a DIN rail, houses all adjustments. Basic adjustments can be quickly made using coding wheels and switches on the front panel, while advanced programming is accomplished via a PC connected through the RS-232 link. The software, compatible with Microsoft Windows, provides a user-friendly interface and extended capabilities such as Digital Signal Processing parameters, cycle time, slope, and more.
Features
- Scan Ranges: Four models available with scan ranges from 0.9 m to 3.0 m (2.95 ft to 9.84 ft)
- Durability: Stainless steel M30 heads with an IP65 rating; Plastic control box with screw terminals and an IP40 rating
- Synchronising/Hold Input: Prevent mutual interference from multiple sensors by connecting their synchronising/hold inputs (pin 4). To stop measurement, connect the synchronising/hold input to the ground, stabilizing the output.
- Adjustable Sensitivity: Ultrasonic beam power (sensitivity) can be adjusted via a switch
- Switching Outputs: Four open collector PNP switching outputs with set points 1 and 2 adjustable by coded wheels; Close (target close), Overrange (target far or absent). NO/NC settings adjustable by switch.
- Analog Outputs: Two analog outputs (4 mA to 20 mA and 0 V to 10 V)
- Temperature Compensation: Built-in temperature compensation for accurate measurements
Typical Applications
- Loop Control: Maintain constant loop operations
- Tank Level Measurement: Measure levels of liquids, crops, etc.
- Reel Diameter Measurement: Ensure correct reel diameters
- Tire Manufacturing: Optimize tire production processes
This versatile sensor series is designed for precise and reliable distance measurement in a variety of industrial applications.
Specifications
- Sensing Range: 150 mm to 1,500 mm (6.0 in to 59.0 in)
- Range Type: Middle range: 1.0 m to 2.0 m (39.0 in to 79.0 in)
- Supply Voltage: 19 Vdc to 30 Vdc
- Oscillating Frequency: 220 KHz
- Integrated Temperature Compensation: Yes
- Repeatability: ± 0.2%, ± 1.0 mm (0.039 in)
- Output Type: Analog 4 mA to 20 mA, RS-232 Interface, Switching 2 x P; Analog 0 Vdc to 10 Vdc
- Switching Output Type: 1 Normally Open / 1 Normally Closed
- Response Time: 60 ms (target moving < 1 m/s), 300 ms (target present/absent)
- Max. Switching Frequency: 8 Hz
- Adjustment Method: Thumb Wheels or PC software
- Analog Output Slope Selection: Thumb Wheels or PC software
- Operating Temperature Range: 0 °C to 50 °C (32 °F to 122 °F)
- Storage Temperature: -25 °C to 85 °C (-13 °F to 185 °F)
- Linearity: 0.3%, ± 2.0 mm (0.079 in)
- Load Resistance: > 1.45 Kohm (Voltage), < 250 Ohm (Current)
- Maximum Output Current: 100 mA
- Hysteresis: Programmable by software (default 1%)
- Adjustable Sensitivity Switch: 33% or 100%
- Indicators: 5 LED
- Additional Inputs/Outputs: Overrange, underrange, parallel outputs, Hold/Synchronize
- Computer Interface: RS-232, 3 wire
- Memory: EEPROM (non-volatile)
- Current Consumption: 50 mA maximum
- Circuit Protection: Reverse polarity, voltage spikes on supply and output line, short circuit on switching output
- Housing Style: Separate head and control box
- Housing Material: Polyethylene terephthalate
- Sealing: IP 40
- Mounting: DIN rail or 2 holes dia. 4 mm
- Termination Type: Screw terminals
- Availability: Global
- Normally Open/Normally Closed Selection: Switch or software
- UNSPSC Code: 41111926
- UNSPSC Commodity: 41111926 Proximity sensors
- Series: 942 Series
