Overview

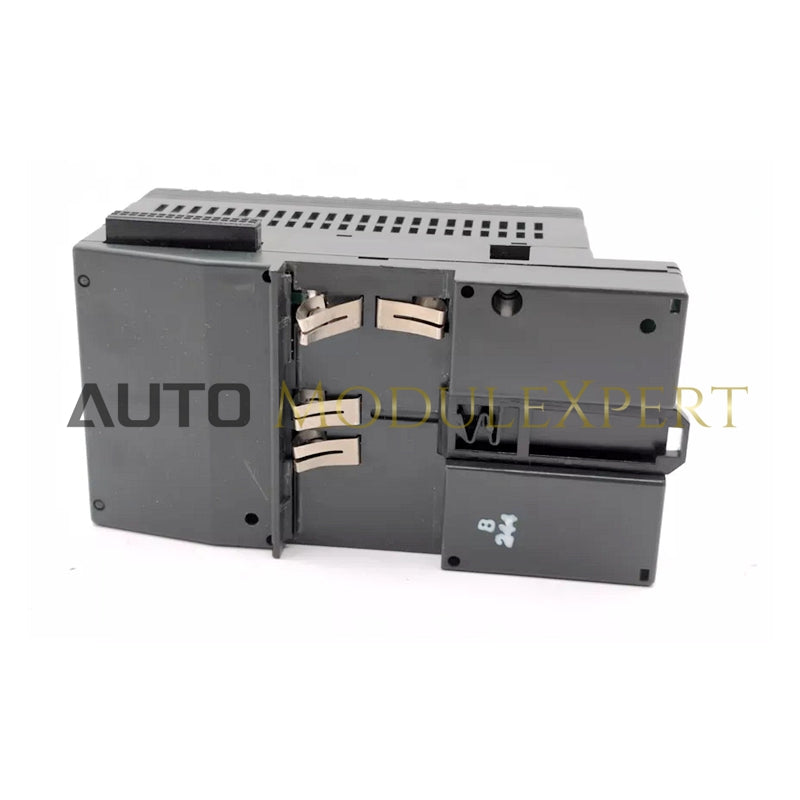

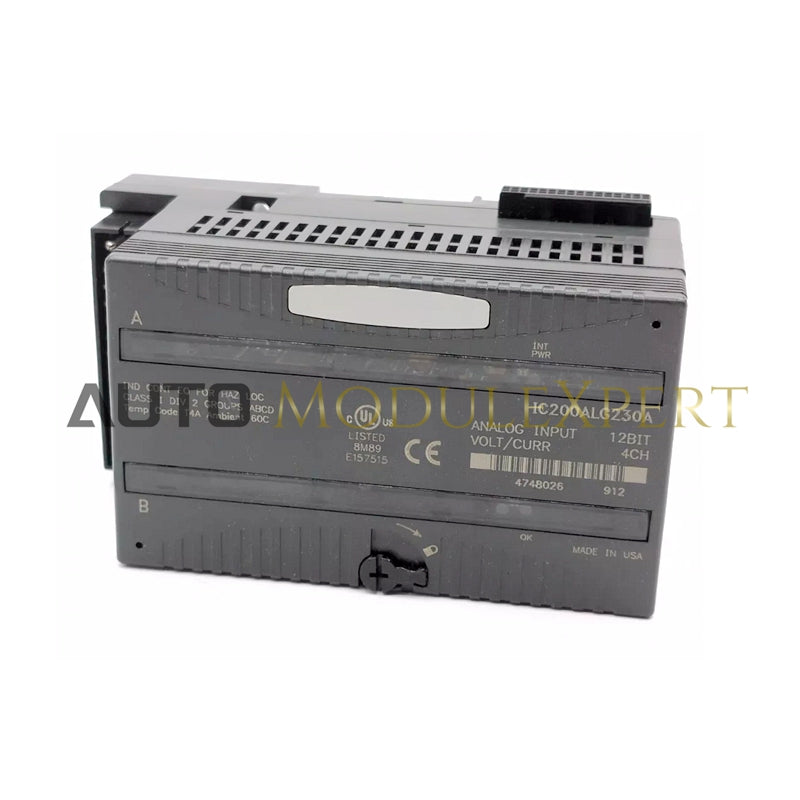

The IC200ALG230 is a versatile analog input module from the Versamax series, designed by GE Fanuc. It offers four (4) configurable analog input channels, which can handle either current (4-20 mA) or voltage (-10V to +10V DC) signals. The module features a 12-bit resolution, making it suitable for high-precision industrial applications.
Technical Specifications
- Voltage Type: Bipolar or Unipolar.
- Input Channels: 4 total channels.
- Analog Input Range: 4-20 mA or ±10 VDC.
- Input Resolution: 12 bits.
- Backplane Power: 125 mA at 5VDC.
- Configuration: 2 jumpers for range and mode selection.
- Update Rate: 0.4 ms.
- Diagnostics: Loss of internal power.
- LED Indicators: INT PWR LED (internal power), OK LED (backplane power).
Installation and Wiring
- Wiring: Compatible with auxiliary I/O terminals (part numbers: IC200TBM001, 002, 005).
- Module Error Response: Hold last state or revert to a predefined value.
- External Grounding: Recommended for safety, especially at the source device or I/O module.
Application and Use Cases
The IC200ALG230 is ideal for industrial and commercial automation systems requiring precise analog data acquisition. It interfaces seamlessly with Versamax PLCs and is widely used in systems involving temperature, pressure, or flow measurement, among other analog signal applications.
