Overview

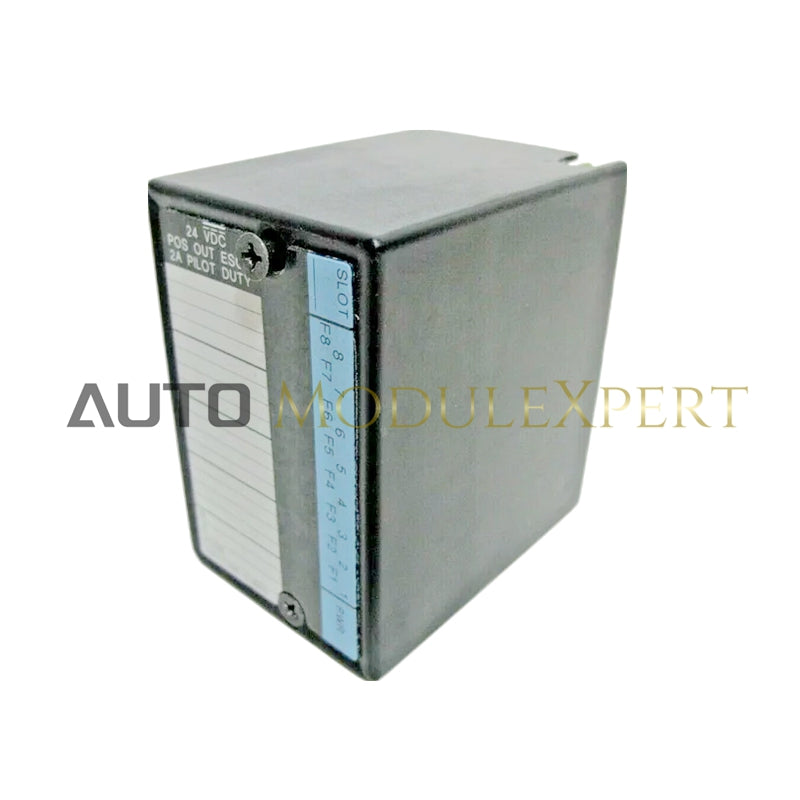

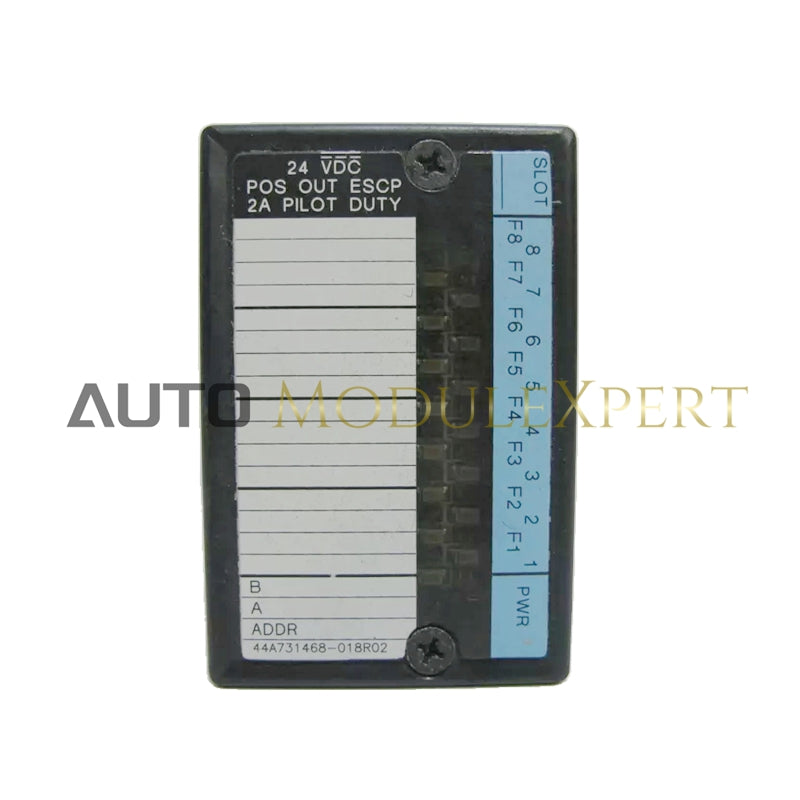

The IC670MDL730 from GE Fanuc is a Field Control Module designed to provide high-performance input and output control for industrial automation systems, with features focused on reliability, precision, and protection.
Features
- Output Per Module: 8 outputs per module
- Individual Point Status Indicators: Green for active, Yellow for fault
- Internal and External Power Supply: Green status indicator for both
- Protection: Short-circuit and overcurrent protection for each output
Technical Specifications
Electrical Characteristics
- User Input Voltage: 18-30 VDC, 24 VDC nominal
- Output Voltage Range: 17.5 VDC to 29.5 VDC
- Continuous Load Current: 2.0 Amps maximum per point, 8 Amps maximum per module
- Inrush Current per Point: 10 Amps maximum for 10ms
- Steady State Overcurrent Trip Point: 2.25 to 2.75 Amps
- Output Voltage Drop: 0.5 volts maximum
- Output Leakage Current: 0.5mA at 30 VDC maximum
-
Response Time:
- On: 500 µs maximum
- Off: 500 µs maximum
- Short Circuit Response Time: 20 Amps for 100 µs
- Time Between Retries: 1.5 ms maximum
Isolation and Protection
-
Isolation:
- User terminal to logic: 250 VAC continuous, 1500 VAC for 1 minute
- User terminal to frame ground: Group to group
- No isolation between individual points in a group
-
Protection for Each Output:
- Short-circuit protection
- Overcurrent protection
- MOV (Metal Oxide Varistor) protection
Current and Power
- Current Drawn from Bus Interface: 125 mA maximum
- Unit Power Supply: Supported by output characteristics
Indicators and Status Monitoring
-
Point Status Indicators:
- Green: Active
- Yellow: Fault
- Internal 5V Status: Green status indicator for both BIU and external supply
Environmental and Performance Considerations
- Designed for use in industrial automation systems where high reliability, fast response times, and protection against faults are critical.
- Ensures smooth, uninterrupted operation with short-circuit and overcurrent safeguards in place, contributing to long-term system reliability.
