Overview

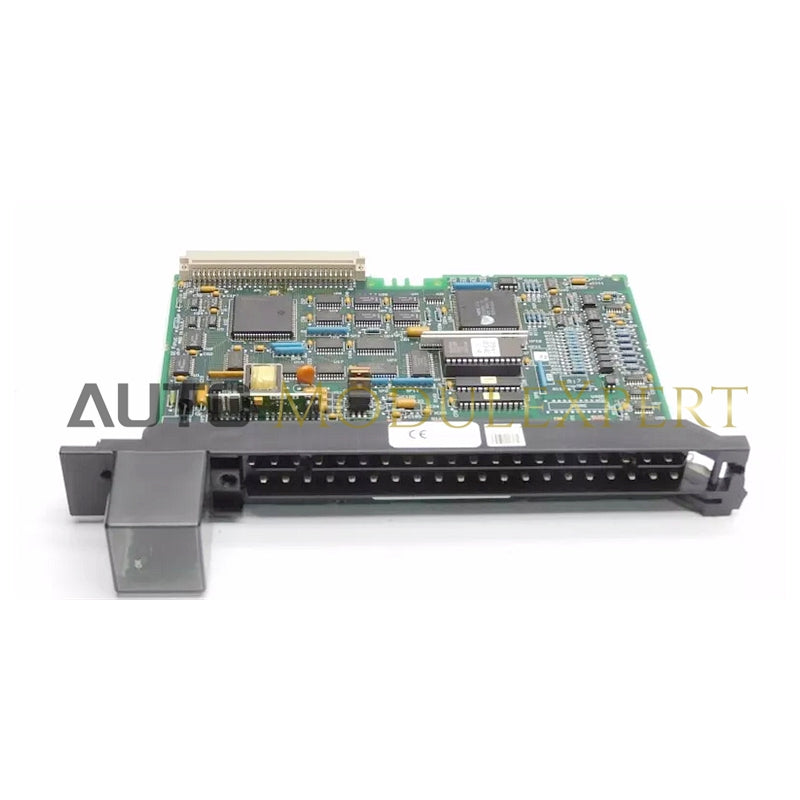

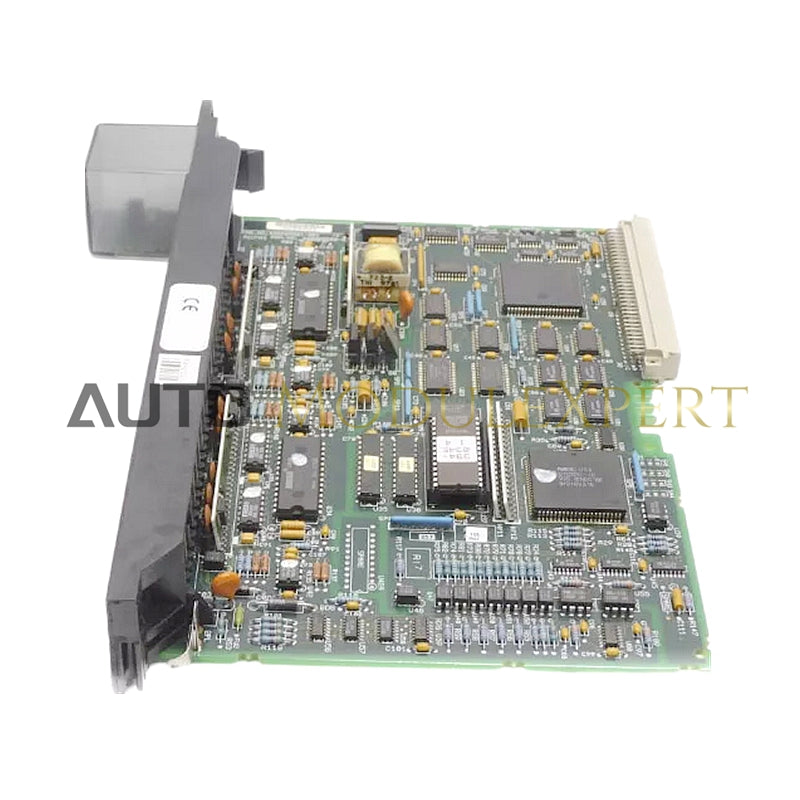

The GE Fanuc IC697ALG320 is an analog output module designed for the Series 90-70 PLC. It provides both current (0-20 mA / 4-20 mA) and voltage (-10VDC / +10 VDC) output signals, with four output channels.
Technical Specifications
- Model Number: IC697ALG320
- Series: 90-70
- Type: Analog output module
- Number of Channels: 4 output channels
- Output Signal Types: 0-20 mA / 4-20 mA (current), -10VDC to +10VDC (voltage)
-
Output Ranges:
- Voltage: -10V to +10V
- Current: 0 to 22.2 mA
- Analog Output Resolution: 16-bit with 14-bit monotonicity
- Conversion Rate: 2 ms for all channels
-
Calibration:
- Voltage: Factory set at full scale = 10 volts ±2.5 mV
- Current: Factory set at 4.0 mA ±5 µA, 20 mA ±5 µA
-
Accuracy:
- Voltage: ±2.5 mV at full scale
- Current: ±5 µA at 4 mA and 20 mA
Additional Features
- Max Number of Modules per Rack: 7
- Maximum Output Channels: 252 channels
- External Supply Voltage Range: 10V to 30V DC (24V DC typical)
- Current Draw: 1.66A (8.3 watts) at +5V DC
- User Power Requirement: 150 mA of DC user power required for current outputs
- Module Width: 1-slot
- Weight: 0.84 kg
