Overview

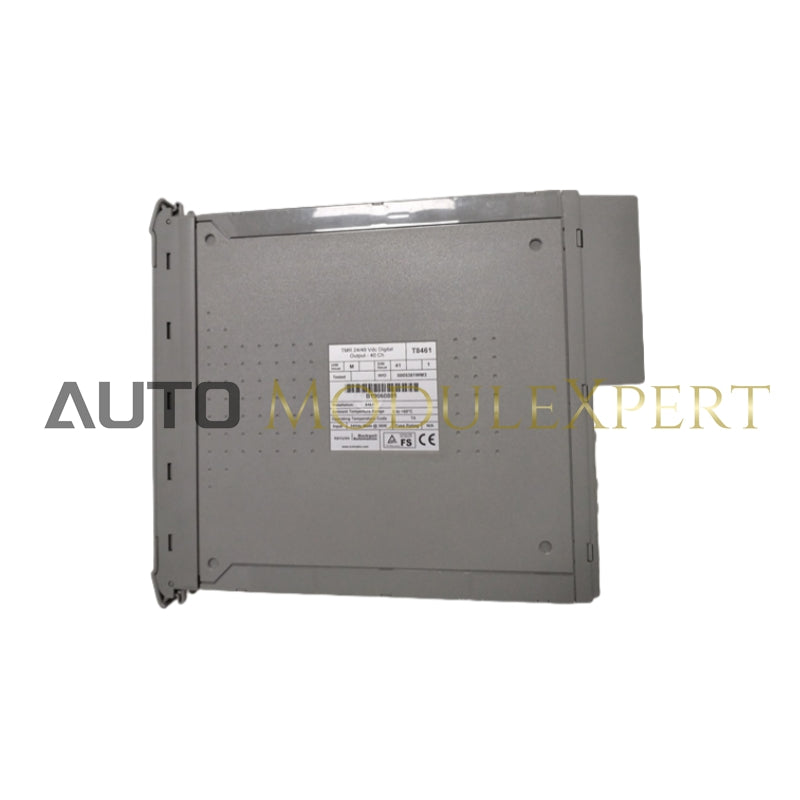

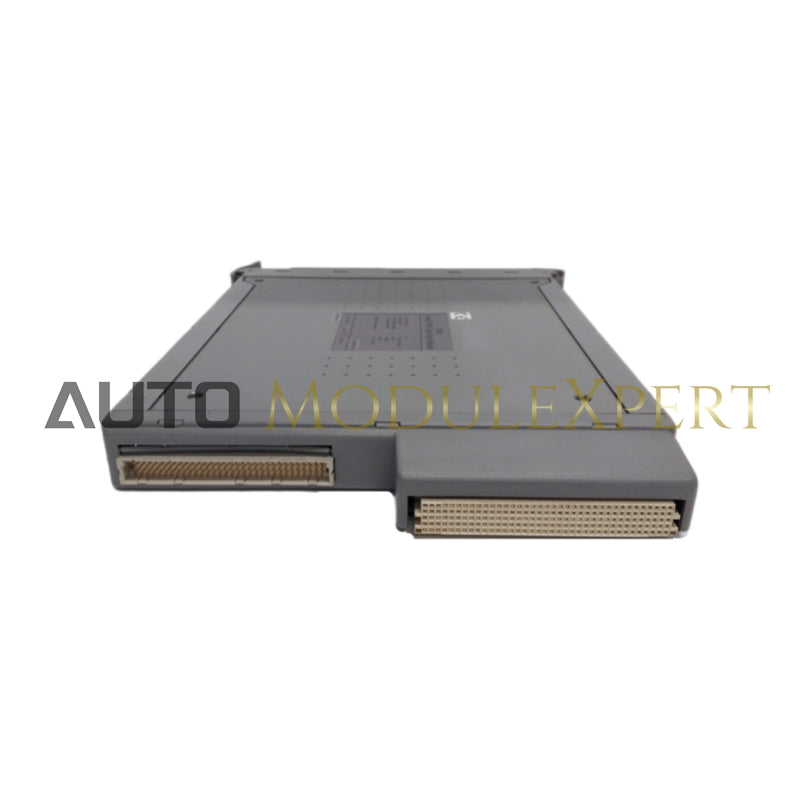

The Trusted™ TMR 24V DC Digital Output Module connects to 40 field output devices, organized into five groups, each containing eight outputs. All outputs within a group share a common power supply and return path. Fault tolerance is ensured by employing Triple Modular Redundancy (TMR) within the module, providing redundancy for each of the 40 output channels.Specifications
- Number of Outputs: 40 Channels
- Number of Independent Power Groups: 5 (each with 8 outputs)
-
Field Common Isolation:
- Sustained Working: ±250V DC
- Maximum Withstanding: ±2.5kV DC
-
Output Voltage Field Supply:
- Measurement Range: 0 to 36V DC
- Maximum Withstanding: -1 to 60V DC
- Output Current Rating: Continuous: 2A
- Output Off Resistance (effective leakage): 33kΩ
- Power Consumption (1A per channel): 24W
- Output Turn On/Off Delay: 0.5ms
- Self-Test: Internal, 2 minutes
- Output Short Circuit Protection: Automatic
- Fusing: Not required
- Intrinsic Safety: External barrier
- Circuit Type: Fault-tolerant, fully triplicated with optional line monitoring
- Dimensions (HxWxD): 241mm x 30mm x 300mm (9.5ins x 1.2ins x 11.8ins)
- Weight: 1.13kg (2.5lbs)
- Operating Temperature: -5°C to 60°C (23°F to 140°F)
- Operating Humidity: 5 to 95%, non-condensing
-
Vibration:
- 10 to 57Hz: ±0.075mm
- 57 to 150Hz: 1.0g
- Shock: 15g, ½ sine wave, 11ms
-
EMI (IEC 801):
-
ESD:
- Air Discharge: Up to 15kV
- Contact Discharge: Up to 8kV
- Radiated Fields: 10V/m, 27MHz to 500MHz
- Transients and Bursts: 2kV, 2.5kHz for t=60 seconds
-
ESD:
