Overview

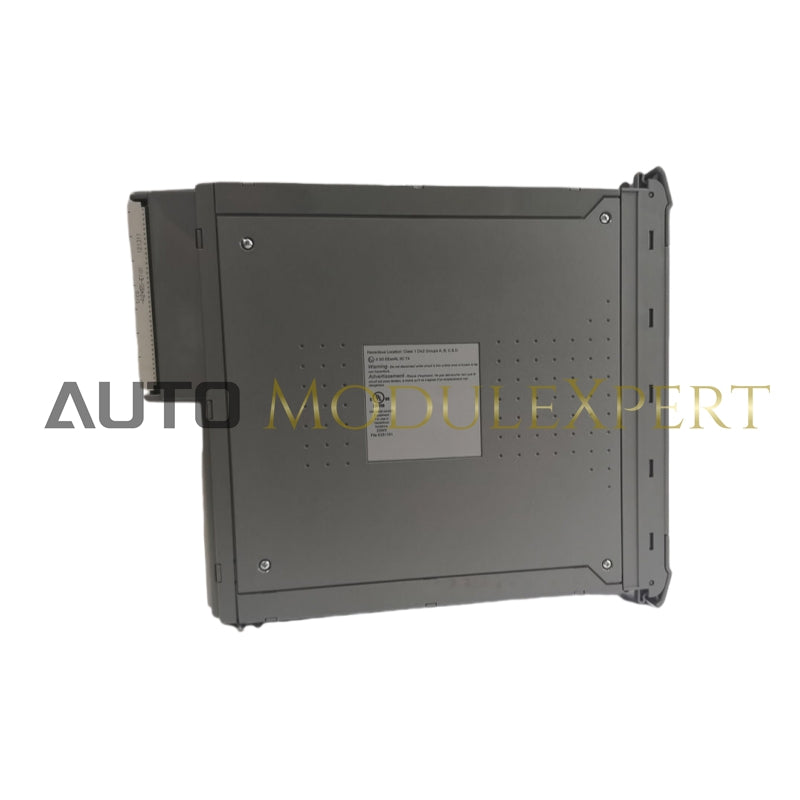

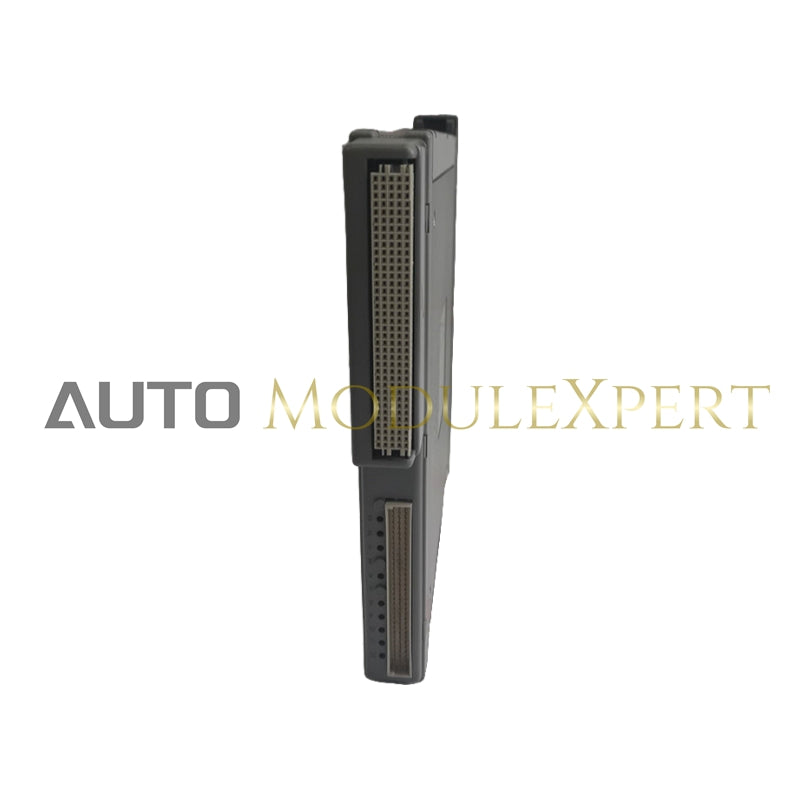

The Trusted® Triple Modular Redundant (TMR) 24V DC / 48V DC Digital Output Module provides interfaces for up to 40 field devices. It incorporates triplicated diagnostics, continuously monitoring parameters such as current and voltage for each voted output channel. These diagnostics detect and address potential failures, such as "stuck on" or "stuck off" conditions. The module’s TMR architecture ensures fault tolerance by applying redundancy across all 40 output channels, enhancing reliability and ensuring continuous operation even in the event of individual component failures.Specifications
Backplane (IMB) Supply
-
Voltage: 20V DC to 32V DC
-
Power: 26 W
Field Supply
-
Voltage: 18V DC to 58V DC
-
Maximum Current: 30 A
-
Power Dissipation:
-
Field Supply at maximum power group current: 36 W
-
System Supply: 26 W
-
Module Location
-
Slot: T8100, T8300 I/O Module Slot
Isolation
-
Power Group to Power Group: 50V Reinforced (continuous)
-
[Type tested at 1411V DC for 60 s]
-
-
Field Common:
-
50V Reinforced (continuous)
-
250V Basic (fault)
-
[Type tested at 2436V DC for 60 s]
-
-
Channel to Channel: None
Fusing: Not user serviceable
Number of Outputs: 40
Number of Power Groups: Each Power Group comprises 8 channels
Output
-
Output On-State Resistance: 1.6 Ω
-
Maximum Current Rating (Continuous): 0.75 A per channel
-
Minimum On-State Load Current: 25 mA
-
Current Measurement Range: 0 A to 1.35 A ±5% / ±5 mA
-
Voltage Measurement Range: 0V DC to +58V DC ±2V DC
-
Maximum Withstanding Voltage: -1V DC to +60V DC
-
Channel to Channel Crosstalk: < 1%
-
Maximum Load Capacitance: 500 μF
-
Output Short Circuit Protection: Electronic latching
Sequence of Events
-
Event Resolution (LSB): 1 ms
-
Time Stamp Accuracy: ±10 ms
Operating Conditions
-
Operating Temperature: 0 °C to +60 °C (+32 °F to +140 °F)
-
Storage Temperature: -25 °C to +70 °C (-13 °F to +158 °F)
-
Relative Humidity (Operating and Storage): 10% – 95%, non-condensing
Dimensions
-
Height: 266 mm (10.5 in)
-
Width: 31 mm (1.2 in)
-
Depth: 303 mm (12.0 in)
-
Weight: 1.3 kg (2.7 lb)
