System Chassis Overview

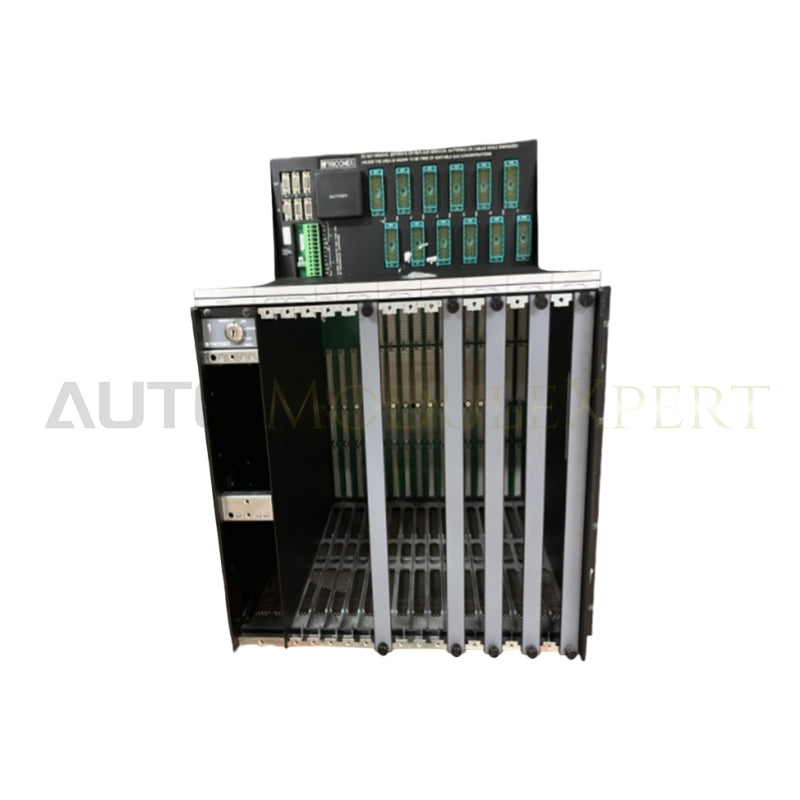

Main Chassis
-
Power Supplies: Located on the left side, one above the other.
-
Main Processors: Positioned immediately to the right of the power supplies.
-
Slots for Modules:
- Six logical slots for I/O and communication modules.
- One COM slot with no hot-spare position.
- Each logical slot includes two physical spaces for modules: one for the active module and one for its optional hot-spare module.
Expansion Chassis
-
Layout: Similar to the main chassis.
-
Slots for Modules:
- Eight logical slots for I/O modules.
- The spaces used by the main processors and the COM slot in the main chassis are available for other purposes.
Interconnection
-
I/O Bus Cables: The main and expansion chassis are interconnected using triplicated I/O bus cables.
-
Cable Length:
- Standard maximum length: 100 feet (30 meters).
- Extended length (restricted applications): Up to 1,000 feet (300 meters).
- For configurations exceeding 30 meters, consult a Triconex Customer Support representative.
RXM Chassis
-
Usage: For systems where the total cable distance between the first and last chassis exceeds the supportable distance by copper.
-
RXM Modules: Each RXM chassis houses a set of three RXM modules in the same position as the main processors in the main chassis.
-
Slots for Modules:
- Six remaining logical slots.
- One blank (unused) slot.
