Overview
Each Tricon chassis is equipped with two power modules, either of which can independently operate the Tricon at full load and rated temperature. These power modules are hot-swappable, allowing for online replacement without system downtime. Positioned on the left side of the chassis, the power modules convert incoming line power to the appropriate DC power required by all Tricon modules. The terminal strips for system grounding, incoming power, and hardwired alarms are located in the lower left corner of the backplane. The incoming power should have a minimum rating of 240 watts per power supply.Power Module Specifications
- Isolation: >1000 VAC or 1500 VDC, Input to Output
-
Input Terminations:
- Protected by safety cover
- Accepts three 12-gauge wires (3.310mm²): neutral, hot, and protective earth (chassis ground)
-
Over-Temp. Sensor:
- Temperature warning monitor—trips when internal temp. is greater than 181°F (83°C)
- Typically occurs at ambient temperature 140°F (60°C) or higher
-
Alarm Contacts:
- Normally open, normally closed, and common
- Each contact supports 120 VAC @ 1 amp
- Accepts 12-gauge (3.310mm²) wire
- Protected by safety cover
- Input Power Required: 240 watts minimum per Power Module
- Output Power: 175 watts at 140°F (60°C)
- Output Voltage: 6.5 VDC, ±1% under all operating conditions
- Output Current: 27 amps maximum at 140°F (60°C) ambient

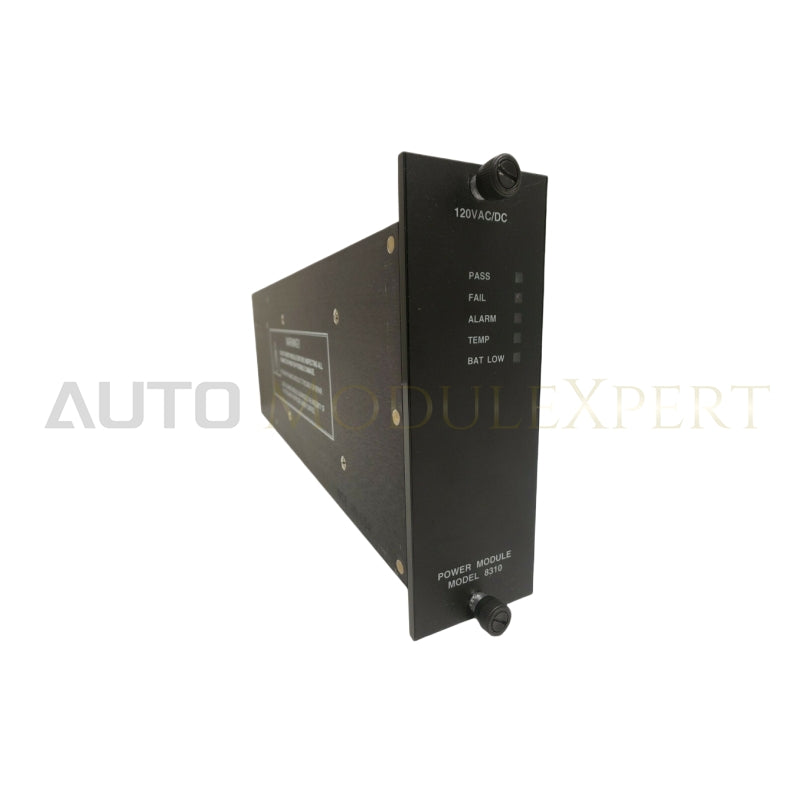

| Power Module Model | 8310 | 8311 | 8312 |
| Chassis Type | Main/Expansion/RXM | Main/Expansion/RXM | Main/Expansion/RXM |
| Nominal Voltage | 120 VAC/VDC | 24 VDC | 230 VAC |
| Input VAC @ 47-63 Hz | 85-140 | n/a | 185-285 |
| Input VDC | 95-180 | 22-31 | n/a |
| Fuse Rating and Type | 5 amps, time-delay | 15 amps, time-delay | 2.5 amps, time-delay |
| Output Hold Time (nominal to 0 volts) |
20 ms minimum | 2.8 ms minimum | 20 ms minimum |
| Diagnostic Indicators | PASS, FAULT, ALARM, TEMP, BAT LOW | PASS, FAULT, ALARM, TEMP, BAT LOW | PASS, FAULT, ALARM, TEMP, BAT LOW |
