Overview

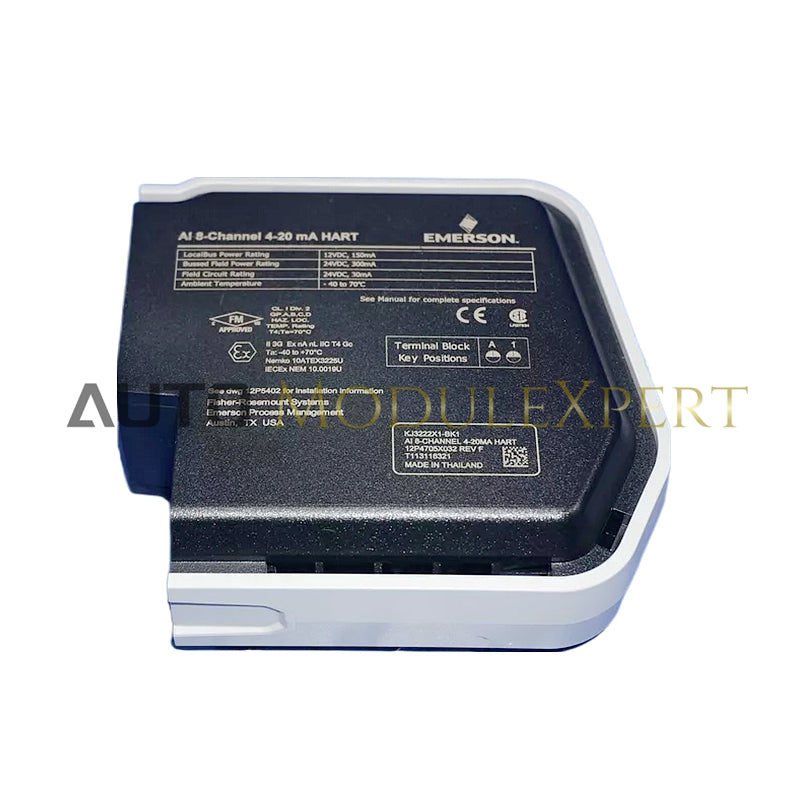

The Emerson KJ3222X1-BK1 is an 8-channel, 4-20mA HART input module designed for high-precision process control applications. It is capable of receiving analog signals and supporting HART communication, providing accurate data for industrial processes.
Power Specifications
-
Local Bus Power:
12 VDC at 150 mA -
Bussed Field Power:
24 VDC at 300 mA -
Field Circuit Power:
24 VDC at 30 mA per Channel
Environmental Specifications
-
Ambient Temperature:
-40°C to +70°C -
Shock:
10 g half-sine wave for 11 ms -
Vibration:
1 mm peak to peak from 2 to 13.2 Hz; 0.7 g from 13.2 to 150 Hz -
Airborne Contaminants:
ISA-S71.04 –1985 Airborne Contaminants Class G3 -
Relative Humidity:
5% to 95% Non-Condensing
Maintenance and Adjustment
- This unit contains no user-serviceable parts and should not be disassembled for any reason.
- Calibration is not required.
Removal and Insertion
- Field power supplied to this device, either at the field terminal or as bussed field power through the carrier, must be removed before removing or connecting the device.
- An I/O loop assessment must be complete on all energy-limited nodes.
- This unit cannot be removed or inserted with system power energized.
- Non-sparking field circuits MUST be de-energized before removing and inserting, including the fused terminal block.
- A rotary keying system ensures compatibility between I/O cards and terminal blocks after installation is complete. The terminal block must have the keys set for the I/O card with which it is to be used.
