Overview

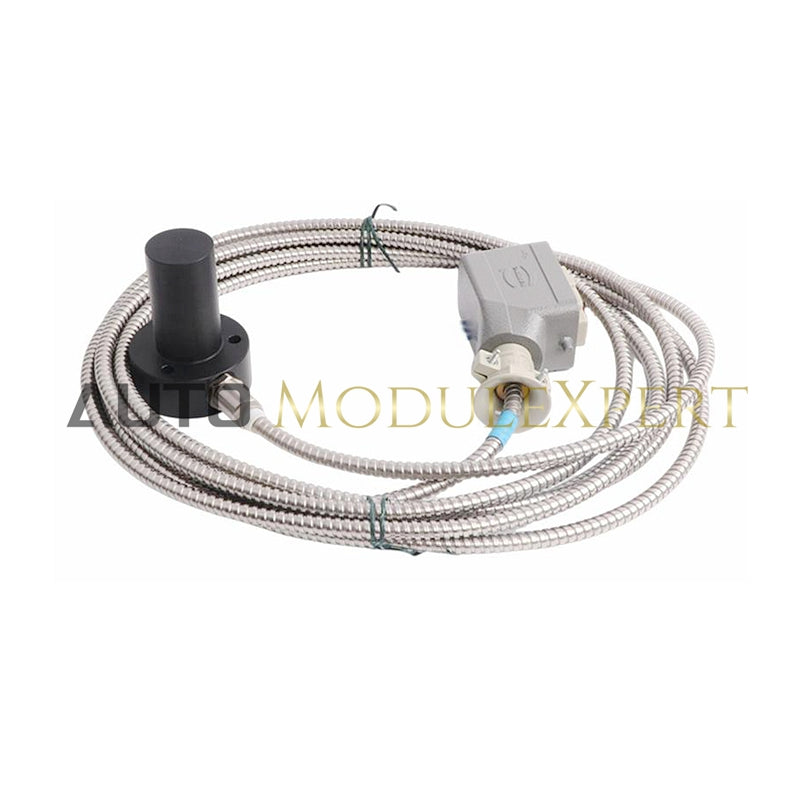

The PR9268/201-000 is an electrodynamic velocity sensor from EPRO, designed for precise vibration measurement in various industrial applications.
Features
- Vertical Orientation: Operates effectively within ±30° without sinking current.
- High Sensitivity: Delivers a sensitivity of 28.5 mV/mm/s (723.9 mV/in/s).
- Wide Frequency Range: Measures vibrations from 4 to 1000 Hz.
- Low Transverse Sensitivity: Offers 0.13 for PR9268/20x-x00 and 0.27 for PR9268/30x-x00 at 110 Hz.
- Mechanical Limits: Handles vibration amplitudes up to 3000 µm (4000 µm peak-to-peak).
Technical Specifications
- Natural Frequency: 4.5 Hz ± 0.75 Hz at 20°C (68°F)
- Amplitude Linearity: Less than 2%
-
Maximum Acceleration:
- 10 g (98.1 m/s²) peak-to-peak continuous
- 20 g (196.2 m/s²) peak-to-peak intermittent
- Maximum Transverse Acceleration: 2 g (19.62 m/s²)
- Damping Factor: ~0.56 at 20°C (68°F) and ~0.42 at 100°C (212°F)
- Resistance: 1875 Ω ± 10%
- Inductance: ≤ 90 mH
- Active Capacity: Less than 1.2 nF
Environmental & General
- Power Source: Self-powered
-
Operating Temperature Range:
- PR9268/01x-x00, PR9268/20x-x00, PR9268/30x-x00: -20 to +100°C (-4 to 212°F)
- PR9268/60x-000, PR9268/70x-000: -20 to +200°C (-4 to 392°F)
-
Protection Class:
- PR9268/20x-x00, PR9268/30x-x00: IP55
- PR9268/01x-x00, PR9268/60x-000, PR9268/70x-000: IP65
- Relative Humidity: 0 to 100%, non-condensing
Material
- Composition: Al Mg Si Pb F 28
- Cable: PTFE, 3x 0.5 mm²
- Armor: Stainless steel
- Connector: Harting plug, die-cast aluminum
Dimensions & Weight
- Weight: 930 g
