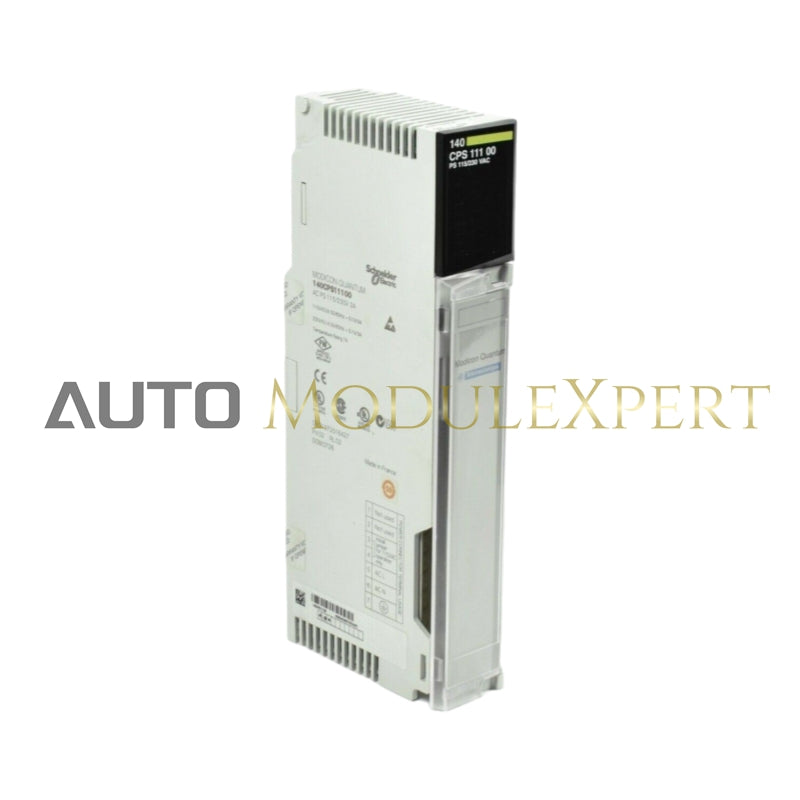

Specifications of Modicon Quantum Power Supply Module
Main Features:
- Range of Product: Modicon Quantum automation platform
- Product Type: Power supply module
- Power Supply Type: Standalone
Electrical Characteristics:
- Input Voltage: 120...230 V AC (100...276 V) AC, 47...63 Hz
-
Input Current:
- 200 mA at 230 V
- 400 mA at 115 V
-
Inrush Current:
- 10 A at 230 V
- 20 A at 115 V
- Rated Power: 50 VA
- Associated Fuse Rating: 1.5 A, slow-blow
- Harmonic Distortion: ≤ 10% of fundamental RMS value
- Output Voltage: 5.1 V DC
- Output Current: 3 A standalone
- Output Overvoltage Protection: Internal
- Output Overload Protection: Internal
- Power Dissipation: 2 + (3 × Iout) where Iout is in A
Signaling and Indicators:
- Local Signaling: Power (PWR OK) LED (green)
Physical Characteristics:
- Module Format: Standard
- Net Weight: 1.43 lb (0.65 kg)
Environmental Specifications:
-
Standards:
- UL 508
- CSA C22.2 No 142
-
Product Certifications:
- cUL
- FM Class 1 Division 2
-
Resistance to Electrostatic Discharge:
- 4 kV contact (IEC 801-2)
- 8 kV on air (IEC 801-2)
- Resistance to Electromagnetic Fields: 9.1 V/m (10 V/m) at 80…2000 MHz (IEC 801-3)
- Ambient Temperature for Operation: 32…140 °F (0…60 °C)
- Ambient Temperature for Storage: -40…185 °F (-40…85 °C)
- Relative Humidity: 95% without condensation
- Operating Altitude: ≤ 16,404.2 ft (5000 m)
Ordering and Shipping Details:
- Category: US1PC2118155
- Discount Schedule: PC21
- GTIN: 3595861135208
- Returnability: No
- Country of Origin: US
Packaging:
- Unit Type of Package 1: PCE
- Number of Units in Package 1: 1
-
Package Dimensions:
- Height: 6.42 in (16.3 cm)
- Width: 1.77 in (4.5 cm)
- Length: 12.28 in (31.2 cm)
- Package Weight: 23.5 oz (665.0 g)
