Main Information
- Range of Product: Modicon Quantum automation platform

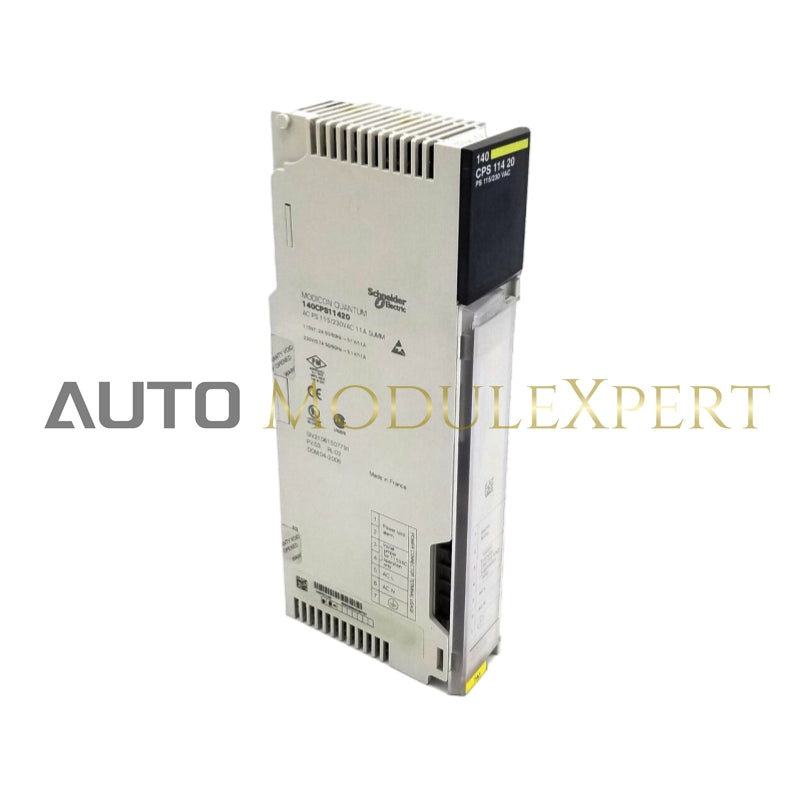

- Product or Component Type: Power supply module
- Power Supply Type: Summable or standalone
Complementary Information
-
Input Voltage:
- 230 V AC (170...276 V)
- 115 V AC (93...132 V)
- Frequency: 47...63 Hz
-
Input Current:
- 750 mA at 230 V
- 1300 mA at 115 V
-
Inrush Current:
- 38 A at 115 V
- 19 A at 230 V
-
Rated Power: 130 VA
-
Associated Fuse Rating: 2 A slow-blow
-
Harmonic Distortion: ≤ 10% of fundamental RMS value
-
Output Voltage: 5.1 V DC
-
Power Supply Output Current:
- 20 A at 60°C (summable)
- 11 A at 60°C (standalone)
-
Protection Features:
- Output overvoltage protection: Internal
- Output overload protection: Internal
-
Power Dissipation: 6 + (1.5 x Iout), where Iout is in A
-
Alarm Output: 1 NC, 6 A, 220 V power supply fault
-
Local Signalling: 1 green LED for power (PWR OK)
-
Marking: CE
-
Module Format: Standard
-
Product Weight: 0.65 kg
Environment
-
Standards:
- CSA C22.2 No 142
- UL 508
-
Product Certifications: CUL
-
Resistance to Electrostatic Discharge:
- 8 kV on air (IEC 801-2)
- 4 kV contact (IEC 801-2)
-
Resistance to Electromagnetic Fields: 10 V/m, 80...2000 MHz (IEC 801-3)
-
Ambient Air Temperature for Operation: 0...60 °C
-
Ambient Air Temperature for Storage: -40...85 °C
-
Relative Humidity: 95% without condensation
-
Operating Altitude: ≤ 5000 m
