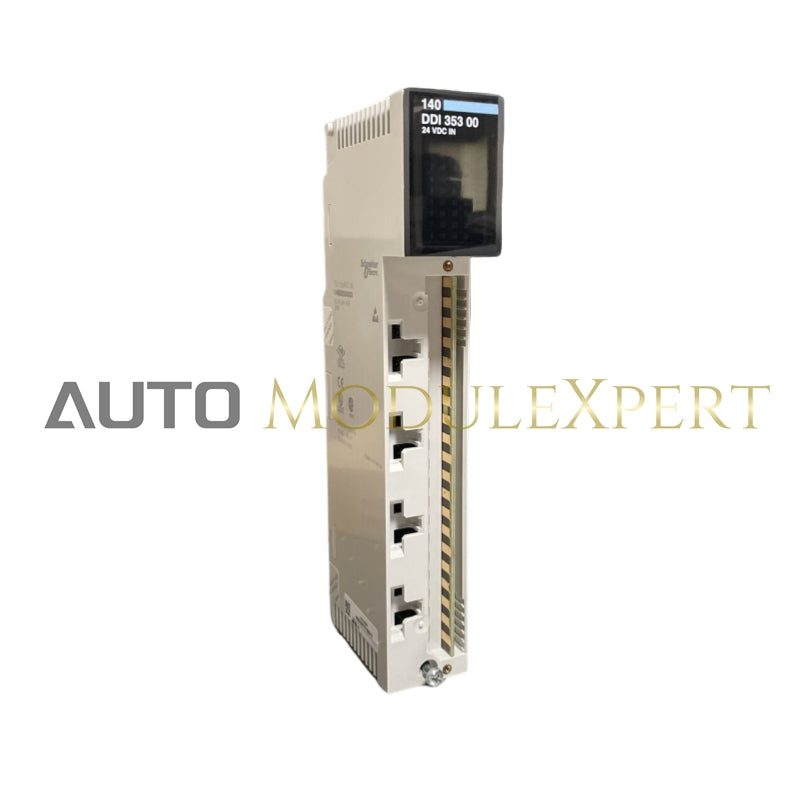

Product Overview
- Type: Low Voltage DC Discrete Input Modules
- Discrete Input Number: 32
- Input Type: Positive (sink)
Electrical Specifications
- Discrete Input Voltage: 24 V DC
- Input Voltage Limits: 19.2 to 30 V
- Voltage State 1 Guaranteed: 15 to 30 V DC
- Voltage State 0 Guaranteed: -3 to 5 V DC
- Current State 1 Guaranteed: ≥ 2 mA at Us = 5.5 V and Uin = 0 V
- Current State 0 Guaranteed: ≤ 0.5 mA
- Input Impedance: 2500 Ohm
- Leakage Current: 200 mA at Us = 5.5 V and Uin = 4 V
- Absolute Maximum Input: 56 V (1.3 ms decaying pulse), 30 V continuous
- Response Time: ≤ 1 ms (state 1 to state 0), ≤ 1 ms (state 0 to state 1)
Protection and Isolation
- Protection Type: Input protection by resistor limited
- Power Dissipation: 1.7 W + (0.36 x number of points on)
- Isolation Between Group and Bus: 1780 Vrms for 1 minute
- Isolation Between Groups: 500 Vrms for 1 minute
Signaling and Indicators
-
Local Signaling:
- 32 Green LEDs (input status)
- 1 Red LED (external fault detected)
- 1 Green LED (bus communication present)
- Marking: CE
Current and Weight
- Bus Current Requirement: 330 mA
- Module Format: Standard
- Product Weight: 0.3 kg
Environmental Standards
-
Standards:
- CSA C22.2 No 142
- UL 508
-
Certifications:
- ABS
- BV
- C-Tick
- DNV
- GOST
- RINA
- RMRS
Resistance and Operating Conditions
-
Resistance to Electrostatic Discharge:
- 8 kV (air, IEC 801-2)
- 4 kV (contact, IEC 801-2)
- Resistance to Electromagnetic Fields: 10 V/m (80-2000 MHz, IEC 801-3)
- Ambient Air Temperature for Operation: 0 to 60 °C
- Ambient Air Temperature for Storage: -40 to 85 °C
- Relative Humidity: 95% without condensation
- Operating Altitude: ≤ 5000 m
