Main

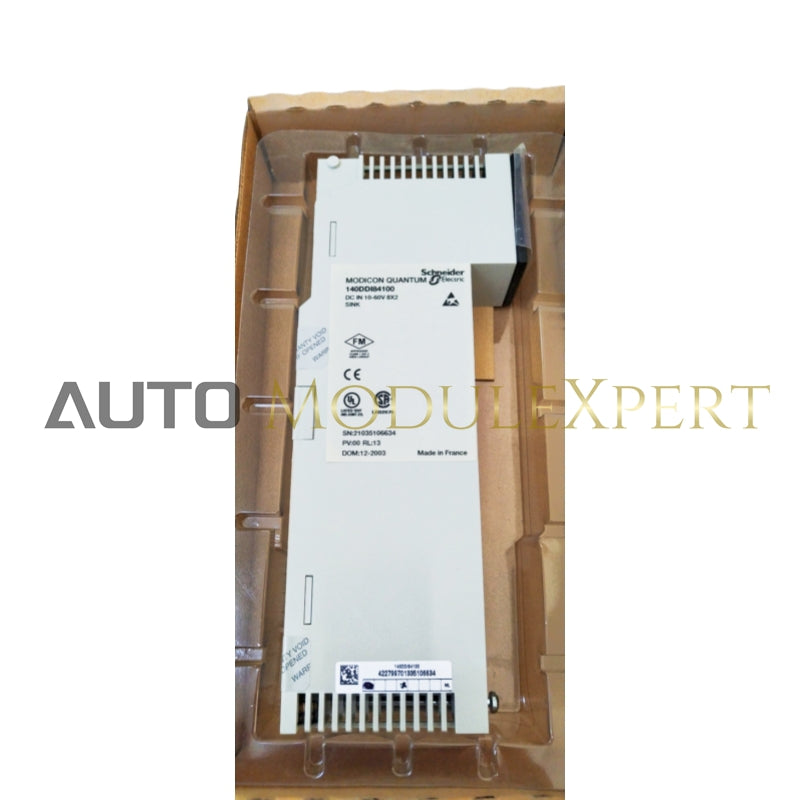

- Range of product: Modicon Quantum automation platform
- Product or component type: DC discrete input modules
- Discrete input number: 16
Complementary
- Group of channels: 8
- Logic input: Positive (sink)
- Input voltage limits: 10...60 V
-
Input voltage:
- 12 V: 5…10 mA DC
- 24 V: 6…30 mA DC
- 48 V: 2…15 mA DC
- 60 V: 1…5 mA DC
-
Voltage state 1 guaranteed:
- 11...24 V: 24 V ± 20%
- 34...48 V: 48 V ± 20%
- 45...60 V: 60 V ± 20%
- 9...12 V: 12 V ± 5%
-
Voltage state 0 guaranteed:
- 0...1.8 V: 12 V ± 5%
- 0...10 V: 48 V ± 20%
- 0...5 V: 24 V ± 20%
- 0...9 V: 60 V ± 20%
- Absolute maximum voltage: 75 V
- Addressing requirement: 1 input word
-
Response time:
- 4 ms from state 0 to state 1
- 4 ms from state 1 to state 0
- Switching frequency: ≤ 100 Hz
- Isolation between group and bus: 2500 Vrms DC for 1 minute
- Isolation between group: 700 Vrms DC for 1 minute
- Power dissipation: 1 W + (0.62 x number of points on)
- Marking: CE
-
Local signaling:
- 1 LED (green) for bus communication is present (Active)
- 1 LED (red) for external fault detected (F)
- 16 LEDs (green) for input status
- Bus current requirement: 200 mA
- Module format: Standard
- Net weight: 0.3 kg
Environment
-
Standards:
- UL 508
- CSA C22.2 No 142
-
Product certifications:
- FM Class 1 Division 2
- C-Tick
-
Resistance to electrostatic discharge:
- 4 kV contact conforming to IEC 801-2
- 8 kV on air conforming to IEC 801-2
-
Resistance to electromagnetic fields:
- 10 V/m 80…2000 MHz conforming to IEC 801-3
- Ambient air temperature for operation: 0…60 °C
- Ambient air temperature for storage: -40…85 °C
- Relative humidity: 95% without condensation
- Operating altitude: ≤ 5000 m
Packing Units
-
Unit Type of Package 1: PCE
- Number of Units in Package 1: 1
- Package 1 Height: 4.64 cm
- Package 1 Width: 16.64 cm
- Package 1 Length: 31.21 cm
- Package 1 Weight: 0.44 kg
-
Unit Type of Package 2: S03
- Number of Units in Package 2: 7
- Package 2 Height: 30 cm
- Package 2 Width: 30 cm
- Package 2 Length: 40 cm
- Package 2 Weight: 3.749 kg
