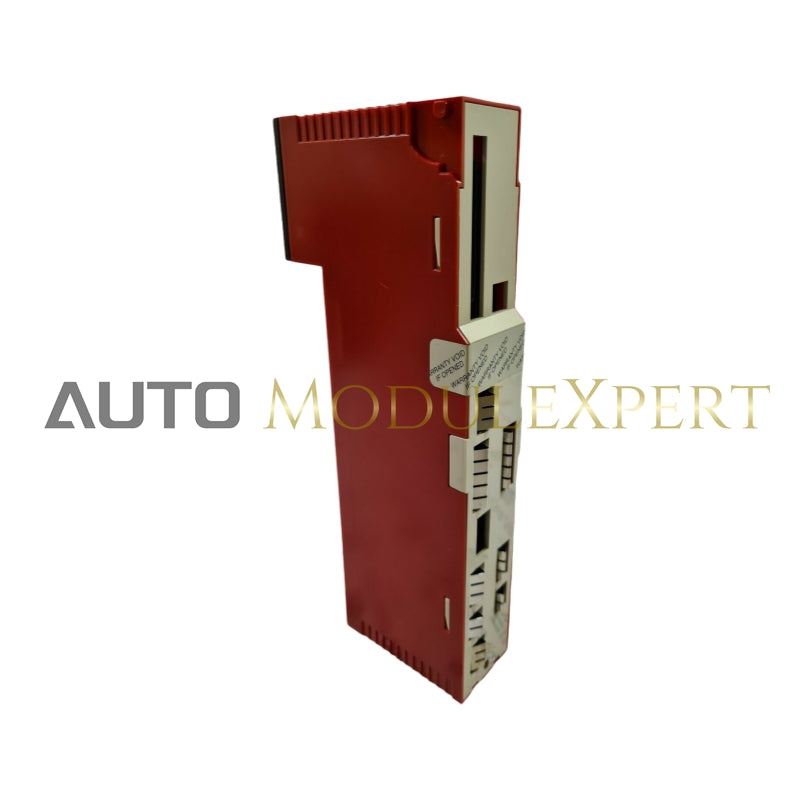

Modicon Quantum Analogue Safety Input Module Specifications
Main Features:
- Product Range: Modicon Quantum automation platform
- Product Type: Analogue safety input module
- Filter Type: Single pole low pass (3 dB at 15 Hz)
Technical Specifications:
- Number of Analogue Inputs: 8
- Addressing Requirement: 13 input words
- Analogue Input Resolution: 16 bits
- Linear Measuring Range: 0 to 25 mA
- Maximum Input: 35 mA (absolute maximum)
- Input Impedance: 287 Ohm
-
Absolute Accuracy Error:
- +/- 0.3%
- +/- 0.35% of full scale maximum
- Linearity Error: +/- 2 µA (between 32°F and 140°F / 0°C to 60°C)
-
Common Mode Rejection:
- -65 dB at 60 Hz
- -70 dB at 50 Hz
- Isolation between Channels and Bus: 1500 V AC (for 60 seconds)
- Isolation between Channels: 500 V AC (for 60 seconds)
- Update Time: 15 ms
- Fault Type: Overtracking scale
Indicators & Signalling:
-
LED Indicators:
- Bus Communication: 1 green LED (Active)
- External Fault Detected: 1 red LED (F)
- Input Status: 8 green LEDs
- System Failure/Internal Channel Fault: 8 red LEDs
Power & Environmental Requirements:
- Bus Current Requirement: 400 mA
- Power Dissipation: 3.5 W
-
Certifications:
- UL
- C-tick
- CSA HazLoc
- TÜV Rheinland (SIL2)
- CSA
Physical Characteristics:
- Country of Origin: France
-
Package 1:
- Type: PCE
- Quantity: 1 unit
- Dimensions: 4.7 cm (Height) x 16.2 cm (Width) x 31.5 cm (Length)
- Weight: 500 g
-
Package 2:
- Type: S03
- Quantity: 7 units
- Dimensions: 30 cm (Height) x 30 cm (Width) x 40 cm (Length)
- Weight: 3.9 kg
Ordering Information:
- GTIN: 3595863953534
- Category: US1PC2118151
- Discount Schedule: PC21
- Returnability: No
