Overview

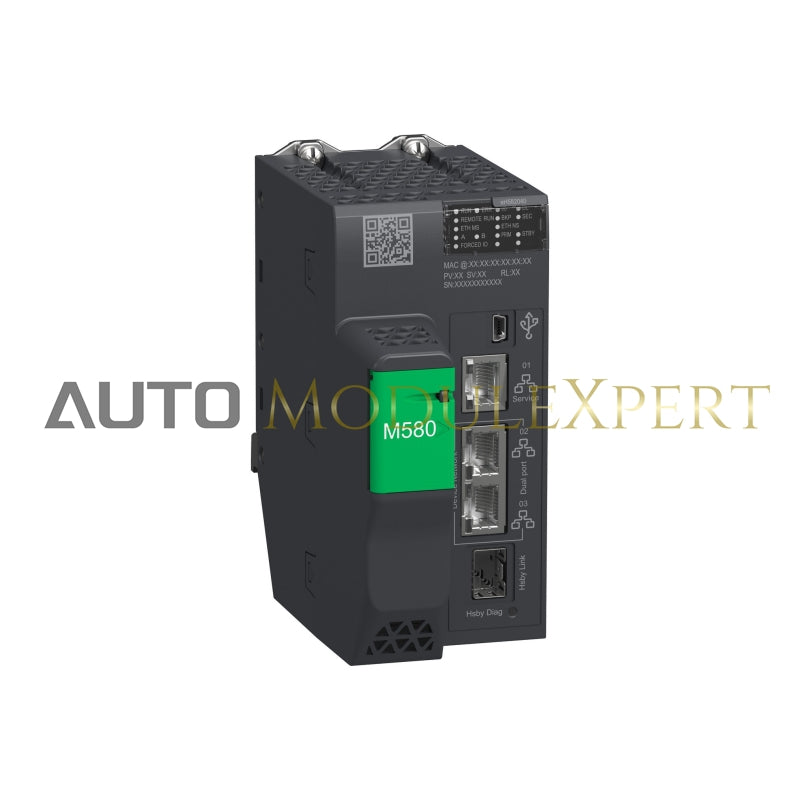

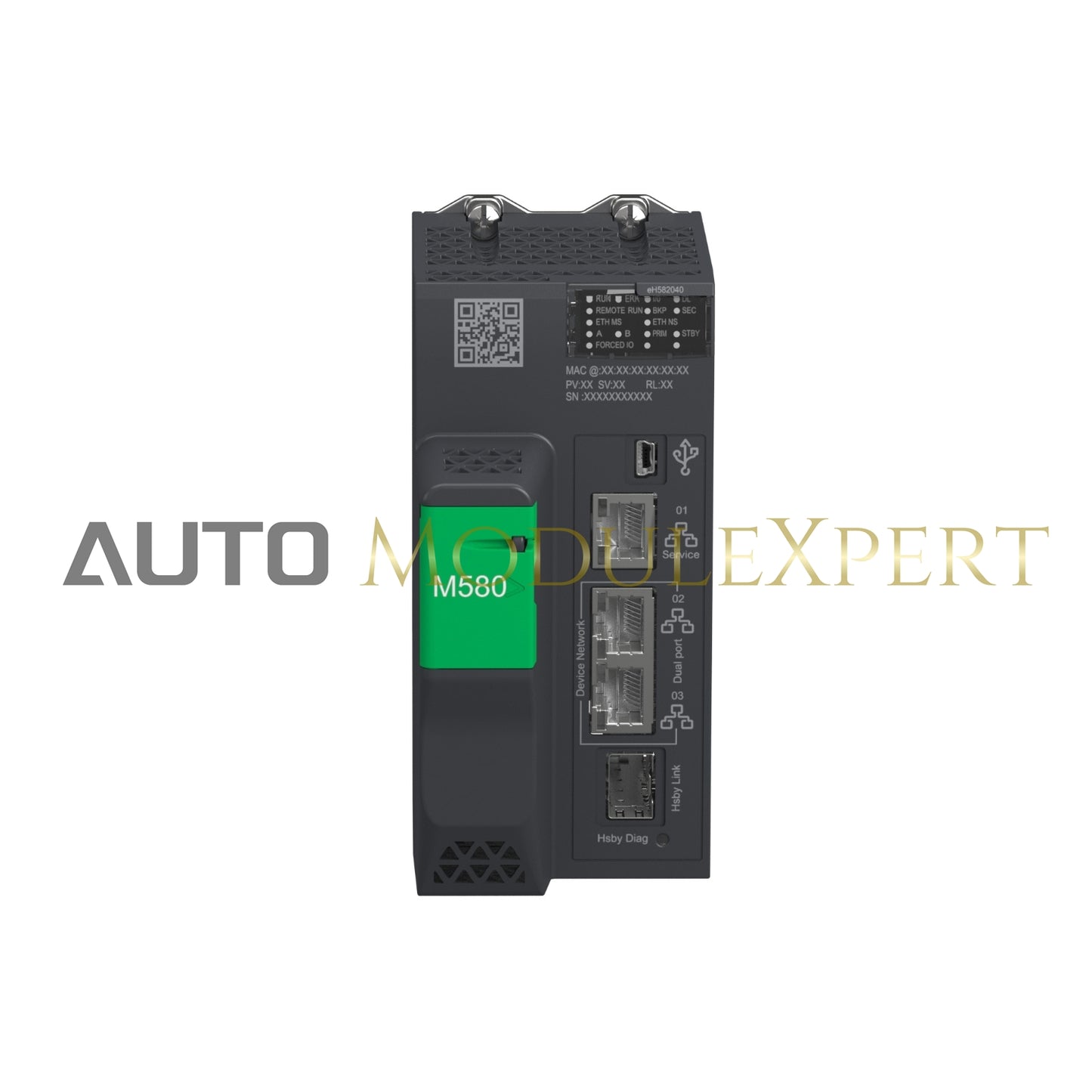

The Modicon M580 Redundant Processor Module is part of the Modicon M580 range of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. It is designed for medium to large process applications and offers the following key features:
- Redundant Processor Module with 1 rack configuration
-
Maximum I/O Capacity:
- 8192 discrete I/O channels
- 2048 analog I/O channels
- Supports 64 distributed equipment
-
Integrated Memory:
- 8MB RAM for program
- 768KB RAM for data
- 10KB system memory
- Expandable 4GB flash for data storage
-
Ethernet Connectivity:
- 1 Ethernet TCP/IP service port
- 2 Ethernet TCP/IP device network ports
- 1 Ethernet HSBY (Hot Standby) port
- USB Type Mini B for integrated connections
-
Reliability & Performance:
- MTBF (Mean Time Between Failures): 600,000 hours
- 30 Kinst/ms (65% Boolean, 35% fixed arithmetic) processing speed
- 40 Kinst/ms (100% Boolean) processing speed
- Certifications: CE, Merchant Navy, UL, RCM, CSA, EAC
- Compliance: Meets EN 61131-2, EN 61000-6-4, EN 61000-6-2, EN 61010-2-201 standards
- Security: Achilles certified, DoS prevention, IPSec, SNMP logging, HTTPS, embedded firewall, password protection, and more
Specifications
General Specifications
- Product Type: Redundant processor module
- Range: Modicon M580
- Number of Racks: 1
- Current Consumption: 270mA at 24V DC
- MTBF Reliability: 650,000 hours
- IP Protection: IP20
- Vibration Resistance: 3 gn
- Shock Resistance: 30 gn
Memory and Performance
- Expandable Flash: 4GB for data storage
-
Integrated RAM:
- 8MB for program
- 768KB for data
- 10KB for system memory
-
Instructions per millisecond:
- 30 Kinst/ms (65% Boolean + 35% fixed arithmetic)
- 40 Kinst/ms (100% Boolean)
Environmental Specifications
- Operating Temperature: 32…140 °F (0…60 °C)
- Storage Temperature: -40…185 °F (-40…85 °C)
- Operating Altitude: 0...6561.68 ft (0...2000 m), 2000...5000 m with derating factor
- Relative Humidity: 5%…95% at 131 °F (55 °C) without condensation
Communication
-
Integrated Communication Ports:
- 1 Ethernet TCP/IP service port
- 2 Ethernet TCP/IP device network ports
- 1 Ethernet HSBY port
- USB Type Mini B for integrated connections
- Remote I/O Stations: Up to 8, 2 X80 remote drops
- Distributed Equipment: Up to 64
Cybersecurity
-
Key Features:
- Achilles certified
- DoS prevention
- IPSec encryption
- SNMP logging
- Syslog protocol support
- Transport Layer Security (TLS)
- Audit trail
- Embedded firewall
- Firmware signature verification
- Password protection
- Port hardening
- Secure communication (HTTPS)
- Security log
LED Indicators
-
Processor LED Indicators:
- Green: Processor running (RUN)
- Red: Processor/system fault (ERR)
- Red: I/O module fault (I/O)
- Green: Download in progress (DL)
- Red: Memory card/CPU flash fault (BACKUP)
- Green/Red: Ethernet port configuration status (ETH MS)
- Green/Red: Ethernet network status (ETH NS)
- Green: Peer processor running (REMOTE RUN)
- Green: Processor ID set to A (A)
- Green: Processor ID set to B (B)
- Green: Processor acting as Primary (PRIM)
- Green: Processor acting as Standby (STBY)
- Green: I/O values overridden by user (FORCED IO)
- Green: Hot standby link status (HSBY Diag)
Mechanical Specifications
- Net Weight: 0.849 kg (1.872 lb)
-
Dimensions:
- Height: 8.8 cm (3.46 in)
- Width: 17.8 cm (7.01 in)
- Length: 25 cm (9.84 in)
Ordering Information
- Product Category: US1PC3418161
- GTIN: 3606485439976
- Country of Origin: France
- Discount Schedule: PC34
- Returnability: Yes
Packaging
-
Package 1:
- Type: PCE
- Units per Package: 1
- Height: 8.8 cm (3.46 in)
- Width: 17.8 cm (7.01 in)
- Length: 25 cm (9.84 in)
- Weight: 883 g (31.146 oz)
-
Package 2:
- Type: S03
- Units per Package: 6
- Height: 30 cm (11.81 in)
- Width: 30 cm (11.81 in)
- Length: 40 cm (15.75 in)
- Weight: 5.795 kg (12.776 lb)
