Overview

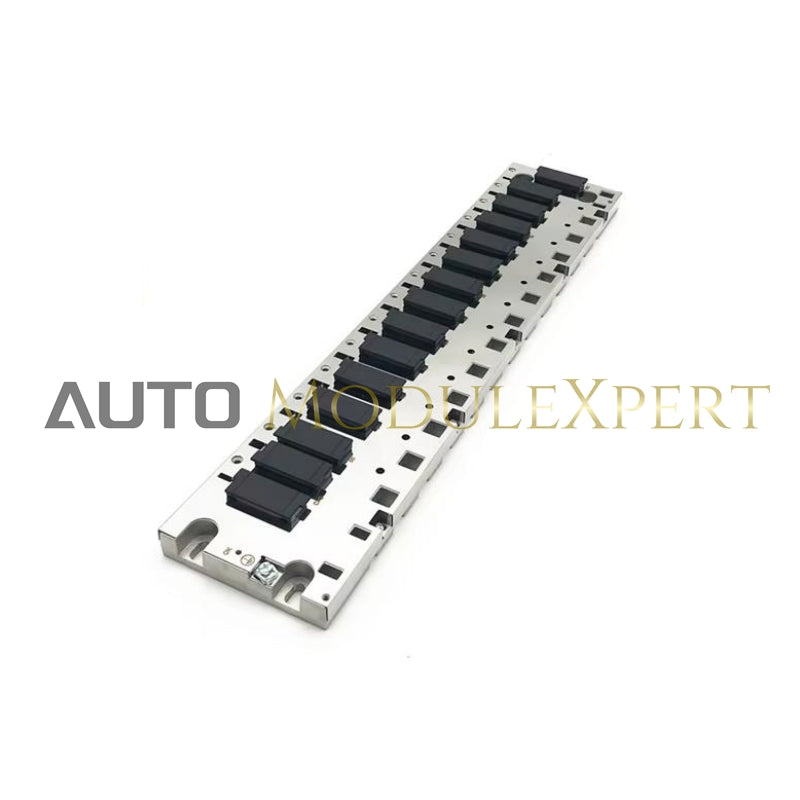

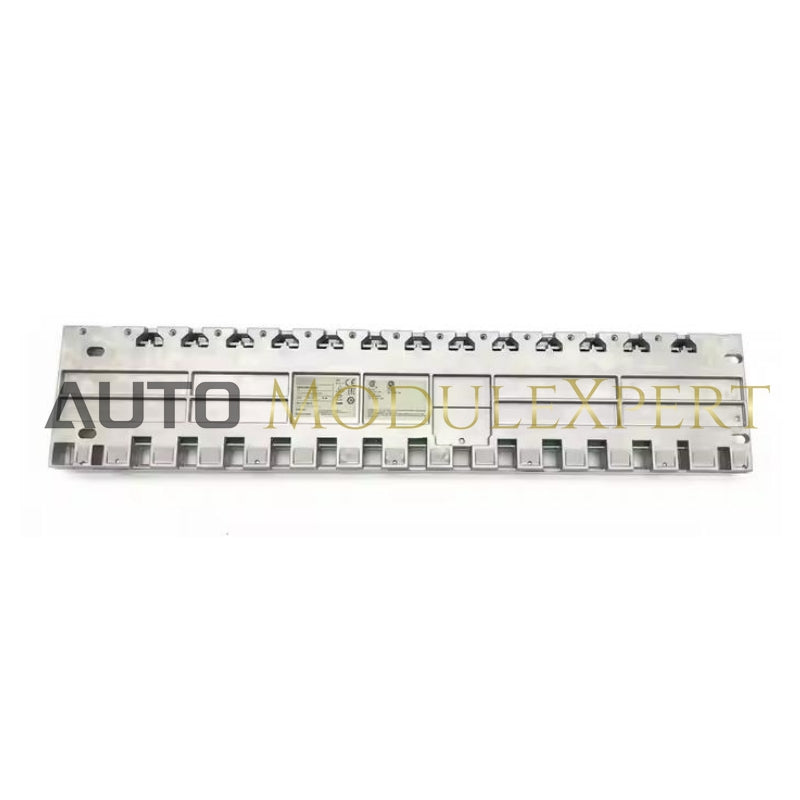

The Modicon X80 Ethernet Backplane Rack is an essential accessory for Modicon M580 and M340 Programmable Automation Controllers (PAC). It is part of the Modicon X80 platform, designed to provide a reliable, high-quality solution for industrial automation. This dual Ethernet and X-bus backplane features a 12-slot configuration, with 8 slots for Ethernet and X-bus modules and 4 slots dedicated to X-bus modules.
Key features of the product include:
- High robustness and cutting-edge technology.
- Current consumption: 164 mA at 24V DC and 86 mA at 3.3V DC.
- MTBF (Mean Time Between Failures) of 1,500,000 hours, ensuring long-term reliability.
- IP20 protection rating for safety and durability.
- Weighs 1.377 kg (3.036 lb).
- Designed for medium to large process applications, meeting EN 61131-2, EN 61000-6-4, EN 61000-6-2, and EN 61010-2-201 standards.
The Modicon X80 backplane offers ease of maintenance, compatibility with a wide range of I/O and application modules, and reduces training costs by utilizing a common platform for various PAC systems.
Specifications
Main Specifications:
- Range: Modicon X80
- Accessory Type: Rack
-
Number of Slots:
- 8 slots for X-bus + Ethernet
- 4 slots for X-bus
-
Compatibility:
- I/O modules
- Specific application modules
- BMXCPS power supply
- BMX processor
- BME processor
-
Power Consumption:
- 3.9 W at 24 V DC
- 283 mW at 3.3 V DC
- Electrical Connection: 1 XBE connector expansion module
-
Mounting:
- 4 M6 screws plate
- 4 screws (0.17–0.25 in or 4.32–6.35 mm) for panel mounting
-
Current Consumption:
- 164 mA at 24 V DC
- 86 mA at 3.3 V DC
- MTBF Reliability: 1,166,108 hours
- Net Weight: 1.377 kg (3.036 lb)
Environmental Specifications:
- IP Protection: IP20
- Ambient Operating Temperature: 32–140 °F (0–60 °C)
- Relative Humidity: 5–95%, non-condensing
Compliance:
- Low Voltage Directive: 2014/35/EU
- Electromagnetic Compatibility: 2014/30/EU
Ordering and Shipping Details
- Category: US1PC3418160
- Discount Schedule: PC34
- GTIN: 3595864173924
- Returnability: Yes
- Country of Origin: France
Packaging Information:
-
Package 1 (PCE):
- Quantity: 1 unit
- Height: 7.000 cm (2.76 in)
- Width: 16.000 cm (6.30 in)
- Length: 56.500 cm (22.24 in)
- Weight: 1.376 kg (3.034 lb)
-
Package 2 (S04):
- Quantity: 8 units
- Height: 30.000 cm (11.81 in)
- Width: 40.000 cm (15.75 in)
- Length: 60.000 cm (23.62 in)
- Weight: 11.860 kg (26.147 lb)
-
Package 3 (P06):
- Quantity: 32 units
- Height: 75.000 cm (29.53 in)
- Width: 60.000 cm (23.62 in)
- Length: 80.000 cm (31.50 in)
- Weight: 54.000 kg (119.050 lb)
