Overview

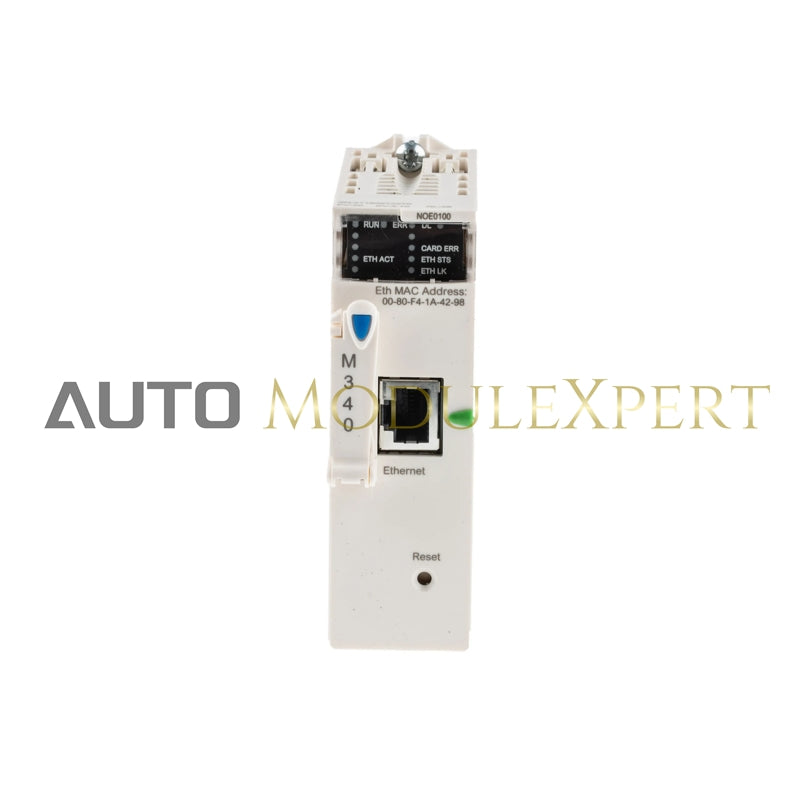

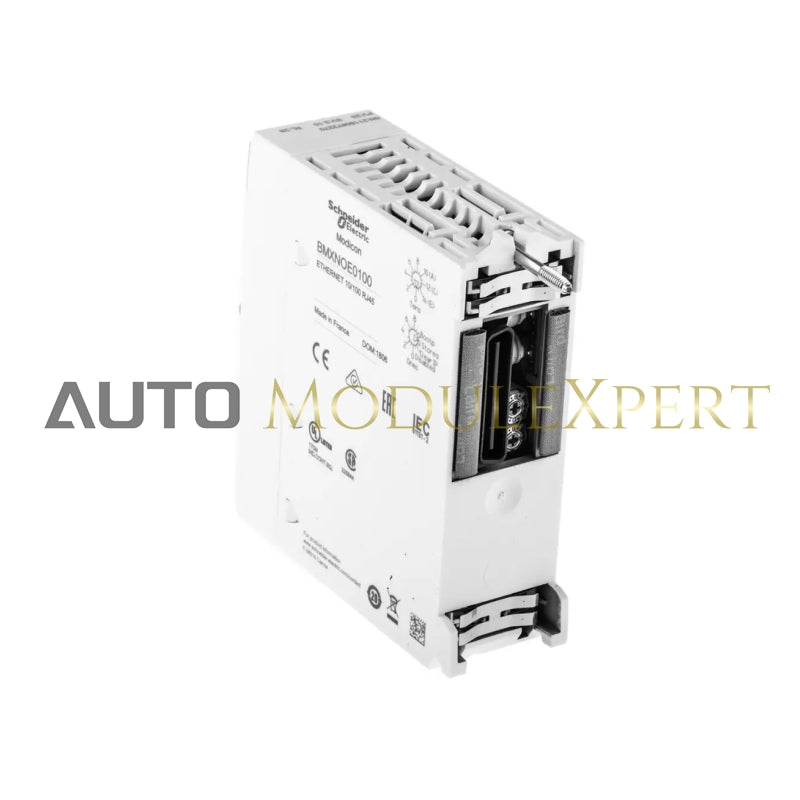

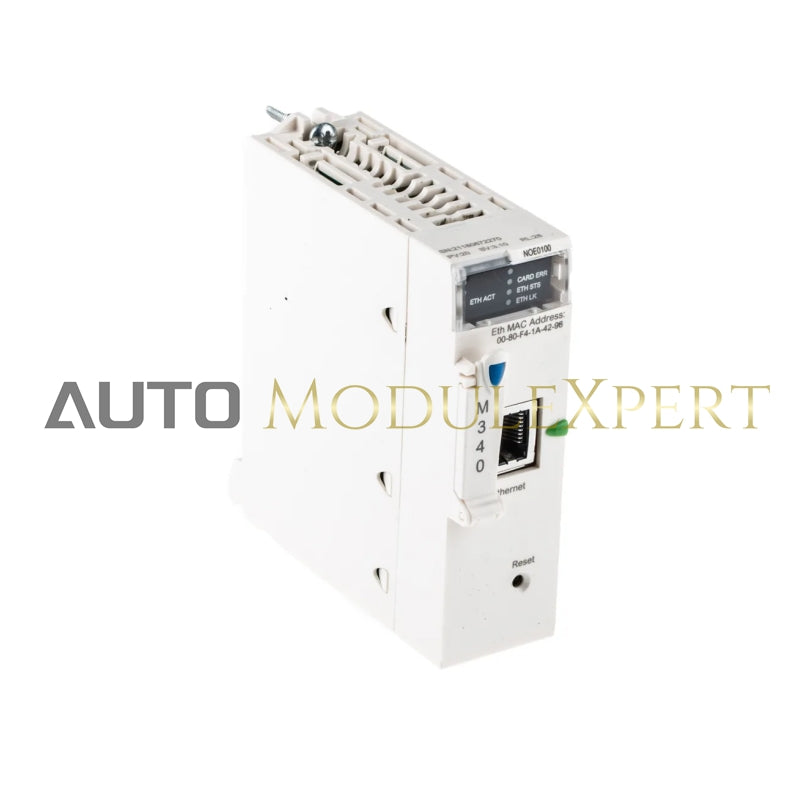

The Ethernet TCP/IP Network Module is part of the Modicon M340 range, a series of Programmable Automation Controllers (PAC). It offers robust and high-quality performance based on the latest innovative technology. The module features an RJ45 Ethernet TCP/IP connection with 10/100Mbps speed and is designed for industrial automation environments.
- Connection Type: Ethernet TCP/IP RJ45, 10/100 Mbit/s, 1 twisted pair
- Power Supply: Internal power supply via rack (90mA at 24V DC)
- IP Rating: IP20
- Weight: 0.2 kg
- Certifications: CE, UL
This network module is suitable for various industries including process automation, renewable energy, water treatment, cement, manufacturing, infrastructure, and machine applications.
Key Features
-
Communication Services:
- Bandwidth management
- Data editor (via PC terminal)
- FDR server (Fault Detection and Recovery)
- Rack viewer
- SNMP network administrator
- Global data
- I/O scanning
- Modbus TCP messaging
- Configurable web server
-
LED Indicators:
- ETH ACT: Activity on Ethernet network (green)
- RUN: Processor running (green)
- ETH STS: Ethernet network status (green)
- ETH 100: Data rate (red)
- CARD ERR: Memory card fault (red)
- ERR: Processor or system fault (red)
-
Memory:
- Supplied with Flash memory card (BMXRWSC016M)
- Used for application saving and activating the standard web server
Technical Specifications
- Current Consumption: 90 mA at 24V DC
- Module Format: Standard
- Operating Temperature: 32°F to 140°F (0°C to 60°C)
- Humidity: 10% to 95% (without condensation)
- Protection: IP20
Standards and Certifications
-
Compliance:
- CE Mark
- UL certification
-
Industry Standards:
- UL 508
- EN 61131-2
- EN 61000-6-4
- EN 61000-6-2
- EN 61010-2-201
Compatibility
- Compatible with Modicon M340 Programmable Logic Controllers (PLC).
- Supports both Schneider Electric and third-party devices.
Packaging and Shipping Details
-
Unit Type: PCE
-
Units per Package: 1
-
Package Dimensions:
- Height: 5.1 cm
- Width: 11.0 cm
- Length: 11.5 cm
- Weight: 235 g
-
Package Type: S02
-
Units per Package (2): 15
-
Package Dimensions:
- Height: 15.0 cm
- Width: 30.0 cm
- Length: 40.0 cm
- Weight: 3.868 kg
Ordering Information
- Category: US1PC3418160
- GTIN: 3595863910674
- Country of Origin: France
- Discount Schedule: PC34
- Returnability: Yes
