Specifications
Main Information

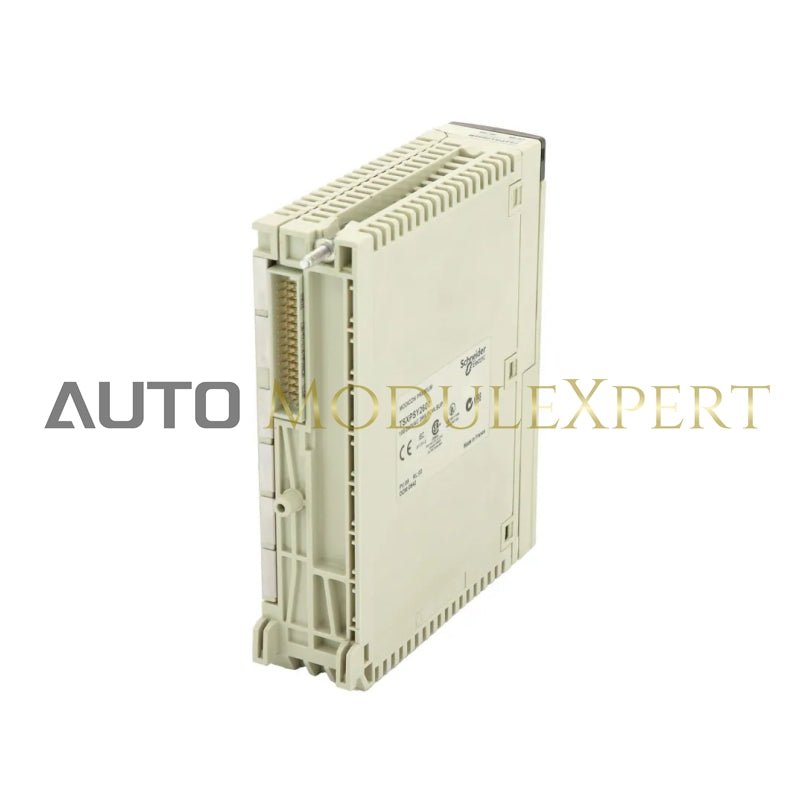

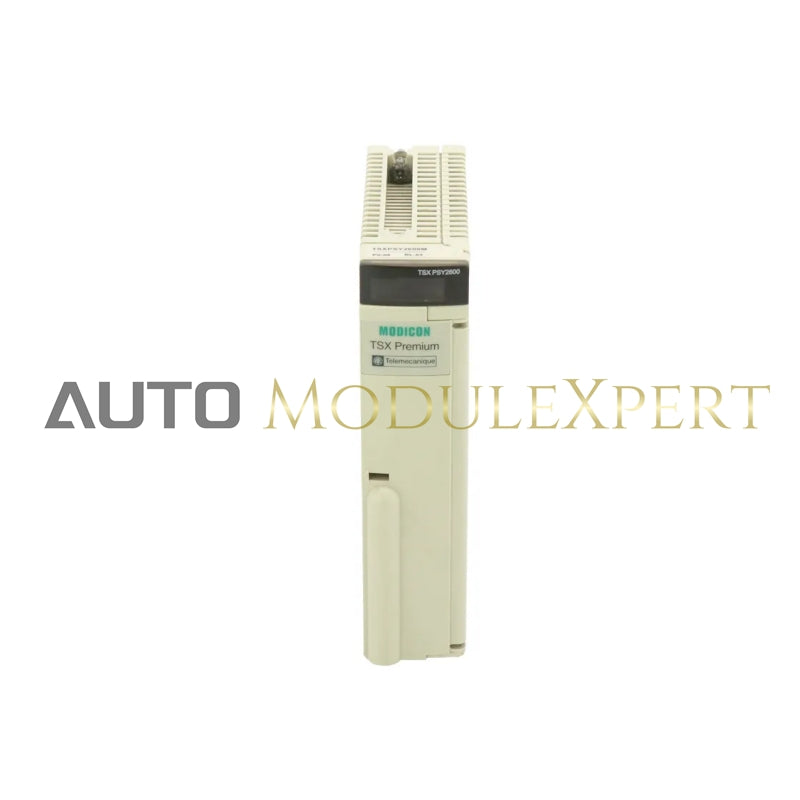

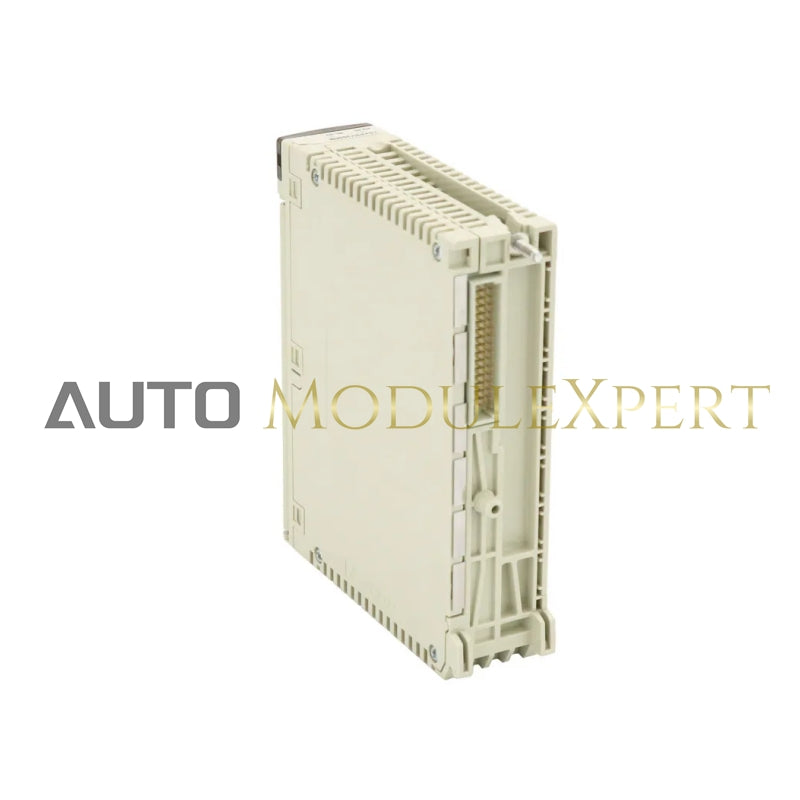

- Range of Product: Modicon Premium Automation Platform
- Product Type: Power Supply Module
Electrical Specifications
- Primary Voltage: 100...240 V AC (85...264 V)
- Network Frequency: 50/60 Hz
- Network Frequency Limits: 47…63 Hz
-
Input Current:
- 300 mA @ 240 V
- 500 mA @ 100 V
-
Inrush Current:
- 37 A @ 100 V
- 75 A @ 240 V
-
I²t on Activation:
- 0.63 A².s @ 100 V
- 2.6 A².s @ 240 V
-
It on Activation:
- 0.034 A.s @ 100 V
- 0.067 A.s @ 240 V
Protection Features
-
Protection Type:
- Internal Fuse 4 A (5 x 20 mm time-delayed primary circuit)
- Overload Protection (secondary circuit)
- Overvoltage Protection (secondary circuit)
- Short-circuit Protection (secondary circuit)
Power Specifications
- Total Useful Secondary Power: 26 W
-
Secondary Power:
- 15 W @ 24 V DC
- 25 W @ 5 V DC
-
Current at Secondary Voltage:
- 0.5 A @ 24 V DC (sensor power supply)
- 0.6 A @ 24 V DC (relay power supply)
- 5 A @ 5 V DC
Insulation and Safety
-
Insulation Resistance:
-
= 100 MΩ primary/ground
-
= 100 MΩ primary/secondary
-
-
Dielectric Strength:
- 2000 V primary/earth
- 2000 V primary/secondary
Indicators
-
Local Signalling:
- Green LED for presence of sensor voltage (24V)
- Green LED for presence of voltages (OK)
- Red LED for battery fault (BAT)
Physical Characteristics
- Module Format: Standard
- Net Weight: 1.12 lb (0.51 kg)
Environmental Conditions
- Immunity to Microbreaks: 10 ms
-
Ambient Air Temperature:
- Operation: 32…140 °F (0…60 °C)
- Storage: -13…158 °F (-25…70 °C)
-
Relative Humidity:
- Operation: 10…95 % without condensation
- Storage: 5…95 % without condensation
- Operating Altitude: 0...6561.68 ft (0...2000 m)
- Protective Treatment: TC
- IP Degree of Protection: IP20
- Pollution Degree: 2
Compliance and Standards
-
Standards:
- CSA C22.2 No 142
- CSA C22.2 No 213 Class I Division 2 Group A
- IEC 61131-2
- UL 508
- 89/336/EEC
- CSA C22.2 No 213 Class I Division 2 Group B
- 92/31/EEC
- 93/68/EEC
- CSA C22.2 No 213 Class I Division 2 Group D
- 73/23/EEC
- CSA C22.2 No 213 Class I Division 2 Group C
-
Certifications:
- RMRS
- BV
- RINA
- GL
- ABS
- DNV
- LR
Ordering and Shipping Details
- Category: US1PC2222558
- Discount Schedule: PC22
- GTIN: 3389110725605
- Returnability: No
- Country of Origin: US

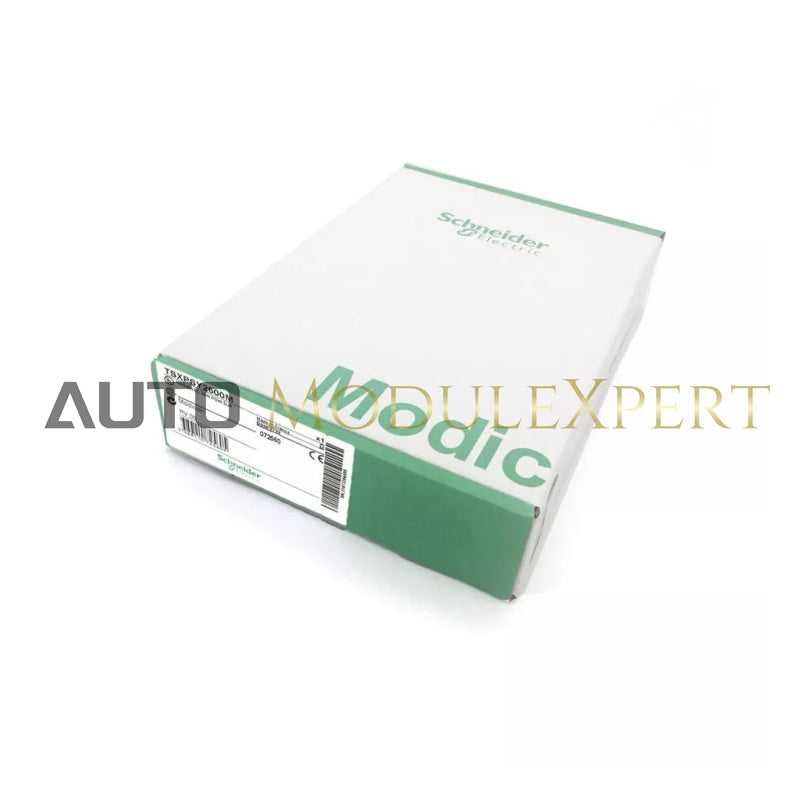

Packaging Information
- Unit Type of Package 1: PCE
- Number of Units in Package 1: 1
-
Package Dimensions:
- Height: 2.36 in (6.0 cm)
- Width: 7.09 in (18.0 cm)
- Length: 10.24 in (26.0 cm)
- Package Weight: 21.8 oz (619.0 g)
