Description

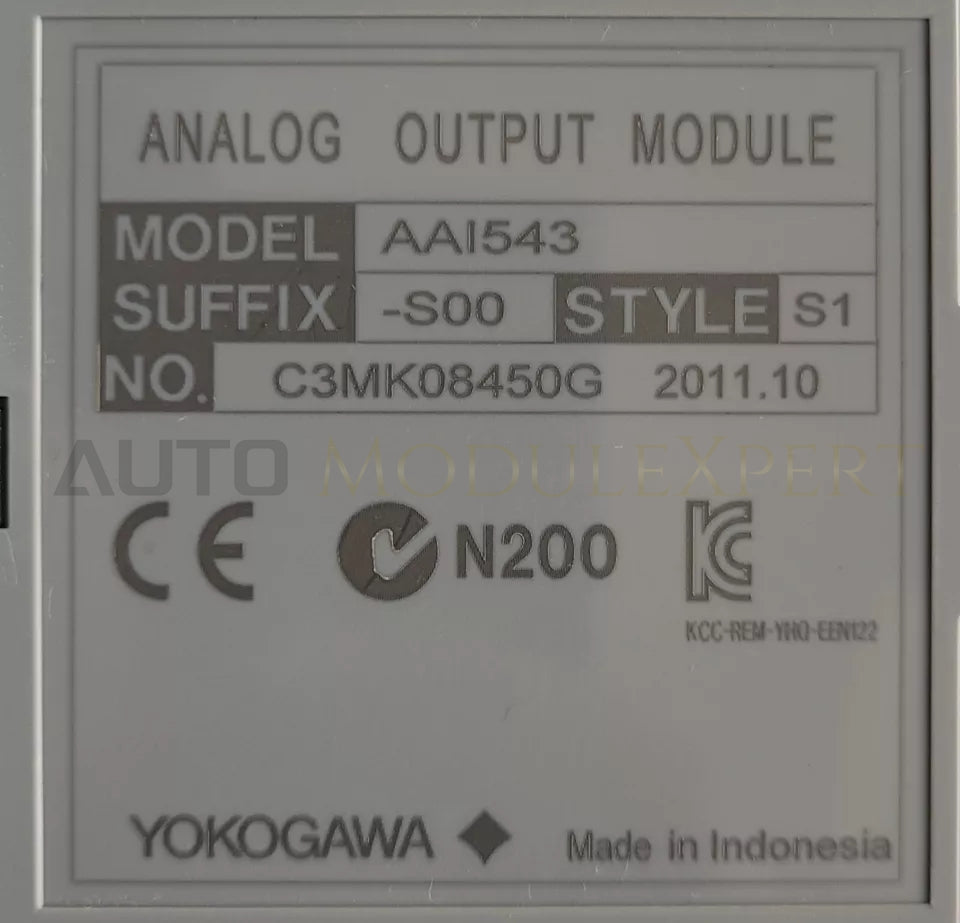

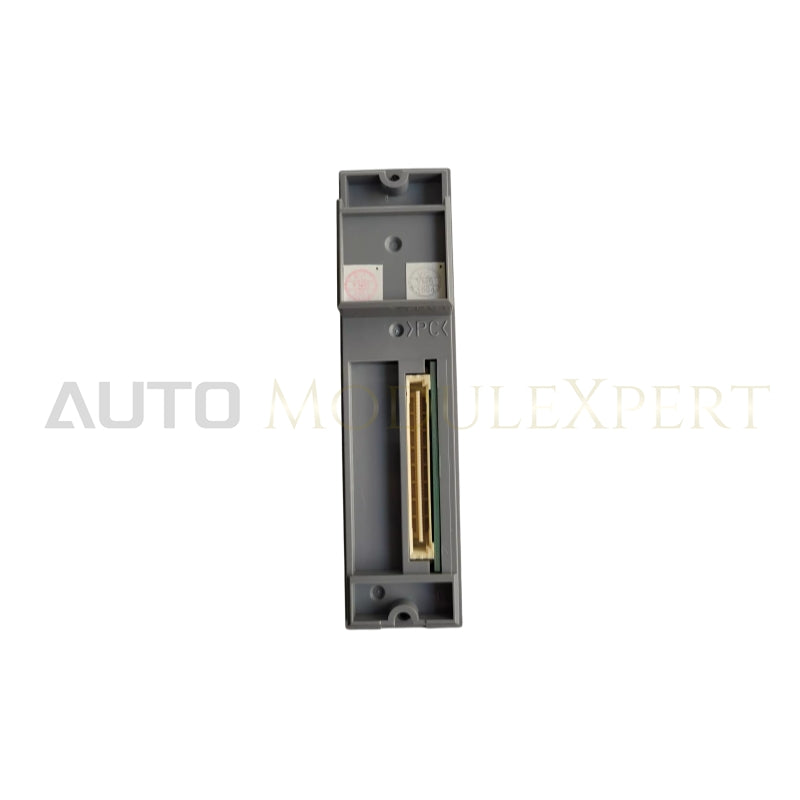

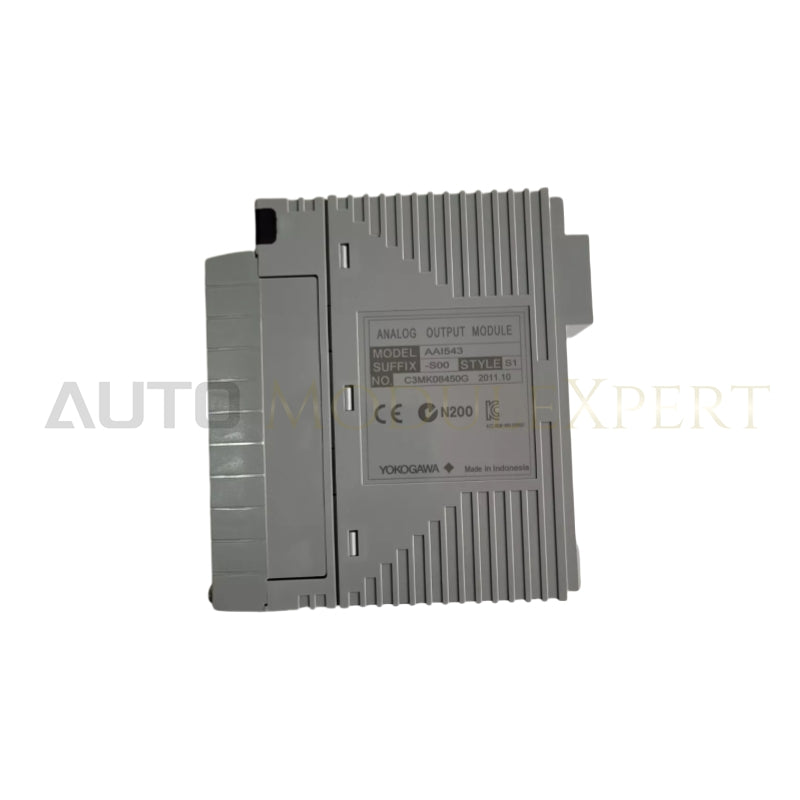

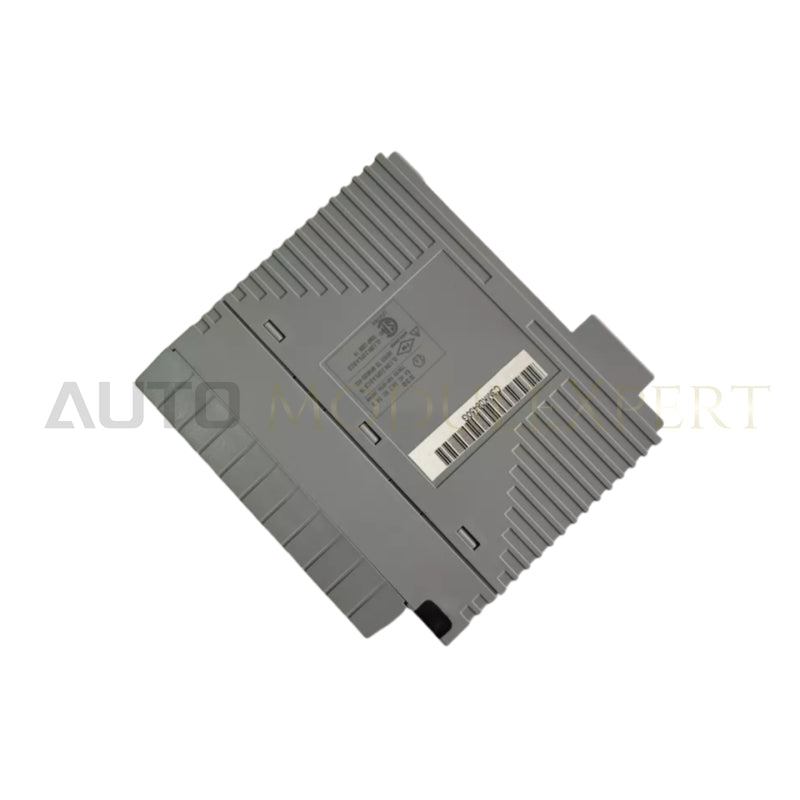

The YOKOGAWA AAI543-S00 is a 16-channel analog input module designed for the CENTUM CS 3000, VP, and STARDOM control systems. This module is engineered to deliver precise and reliable data acquisition for various industrial applications. It accepts a wide range of input signals, including voltage and current, making it versatile for different types of sensors and measurement devices. The AAI543-S00 provides high-resolution data with 16-bit A/D conversion, ensuring accurate representation of analog signals. Additionally, it supports a variety of diagnostic functions to enhance system reliability and maintainability. The module is built with robust hardware that ensures stable performance even in harsh industrial environments. Its compact design allows for efficient use of space within control cabinets.
Features
- 16 Channels: Accommodates multiple inputs, increasing system flexibility.
- 16-bit A/D Conversion: Provides high-resolution and accurate data acquisition.
- Wide Input Range: Supports various signal types, including voltage and current.
- Diagnostic Functions: Includes self-diagnosis and failure detection for enhanced reliability.
- Robust Design: Ensures stable operation in harsh industrial conditions.
- Compact Form Factor: Optimizes space within control cabinets.
Technical Specifications
- Number of Channels: 16
- Input Signal: 4-20 mA, 1-5 V, 0-10 V, -10 to +10 V
- A/D Conversion: 16-bit resolution
- Input Impedance: 250 Ohms (for current input)
- Isolation: Between channels and system
- Power Supply Voltage: 24 V DC (20.4 to 28.8 V DC)
- Power Consumption: 6 W
- Operating Temperature: -10 to +55°C
- Storage Temperature: -20 to +70°C
- Dimensions: 107.5 mm x 94 mm x 32.8 mm
- Weight: 0.4 kg
