Overview

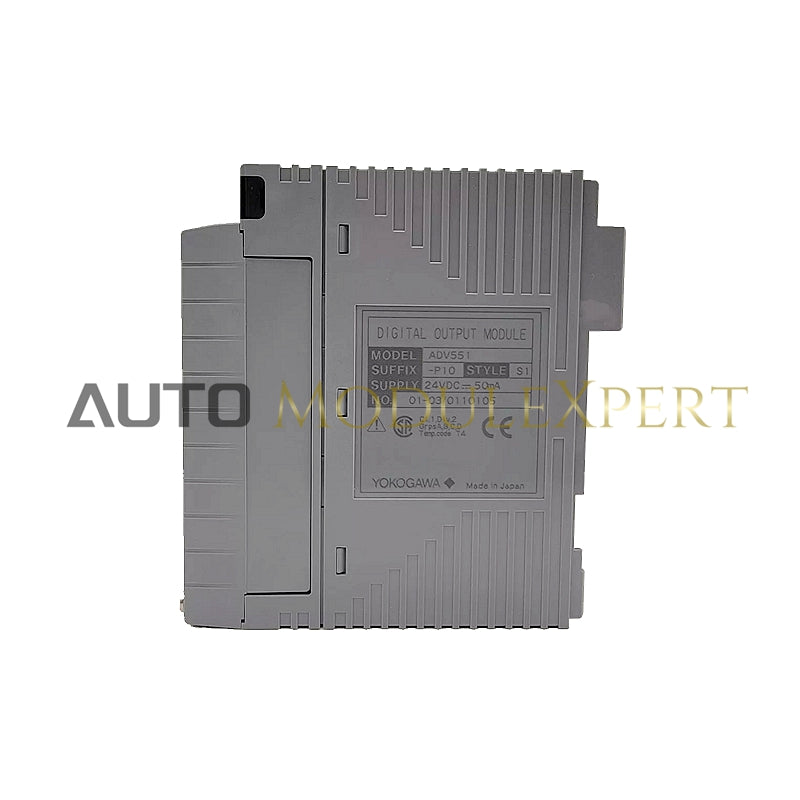

The YOKOGAWA ADV551-P10 is a digital output module designed for use with Yokogawa’s CENTUM CS and CENTUM VP control systems.
Technical Specifications
- Model Number: ADV551-P10
- Number of Output Channels: 32
- Rated Applied Voltage: 24 V DC
- External Power Supply Rating: 24 V DC, 50 mA
- External Power Supply Voltage Range: 20.4 to 26.4 V DC
- Output ON Voltage Maximum Value: 2 V DC
- Leak Current Maximum Value When Output OFF: 0.1 mA
- Output Format: Current sink
- Maximum Load Current: 100 mA/channel, 26.4 V
Withstanding Voltage
- Between output signal and system: 2 kV AC, for 1 minute
- Between commons: 500 V AC, for 1 minute (common minus (–) side every 16-channel)
Functions
- Status Output: ON/OFF status output function
- Pulse Width Output: One-shot pulse width output function
- Time-Proportioning Output: Time-proportioning ON/OFF
Output Response Time
- Status Output: 3 ms or less
- Mixed Status and Pulse Outputs: 10 ms or less
Pulse Width
- Pulse Width Range: 8 ms to 7200 s
- Pulse Width Resolution: 8 ms (but ON/OFF delay of maximum 1 ms is added)
Maximum Current Consumption
- 5 V DC: 700 mA
- External Power Supply: 60 mA
Weight
- Approximate Weight: 0.20 kg
