Overview

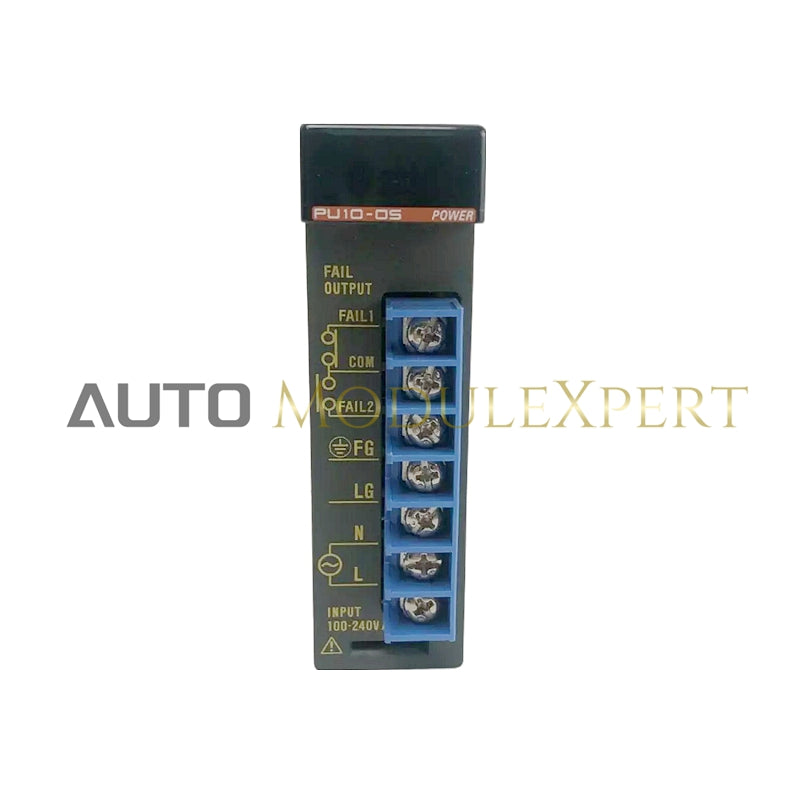

The YOKOGAWA F3PU10-0S Power Supply Module is a reliable and efficient power source designed for use in industrial automation and control systems. It provides a stable and regulated DC voltage output for powering various electronic components and devices.
Technical Specifications
- Supply Voltage: 100-240 V AC, single phase, 50/60 Hz
- Supply Voltage Fluctuation Range: 85-264 V AC, 50/60 Hz
- Power Consumption: 35 VA
- Inrush Current: 20 A max. (120 V AC, Ta=25°C)
- Rated Output Voltage: 5 V DC
- Rated Output Current: 2.0 A
- Insulation Resistance: 5 MΩ or more at 500 V DC (between external AC terminals and FG terminal)
- Dielectric Strength: 1500 V AC for 1 minute (between external AC terminals and FG terminal)
- Allowable Momentary Power Failure Time: 20 ms (Standard Mode)
- Noise Immunity: 1500 Vp-p
- External Dimensions: 28.9 (W) x 100 (H) x 83.2 (D) mm
- Weight: 190 g
Environment Specifications
-
Surrounding Air Temperature Range:
- Operating: 0 to 55°C
- Storage: -20°C to 75°C
-
Surrounding Humidity Range:
- Operating: 10 to 90% RH (non-condensing)
- Storage: 10 to 90% RH (non-condensing)
- Surrounding Atmosphere: Must be free of corrosive gases, flammable gases, or heavy dust.
