Overview

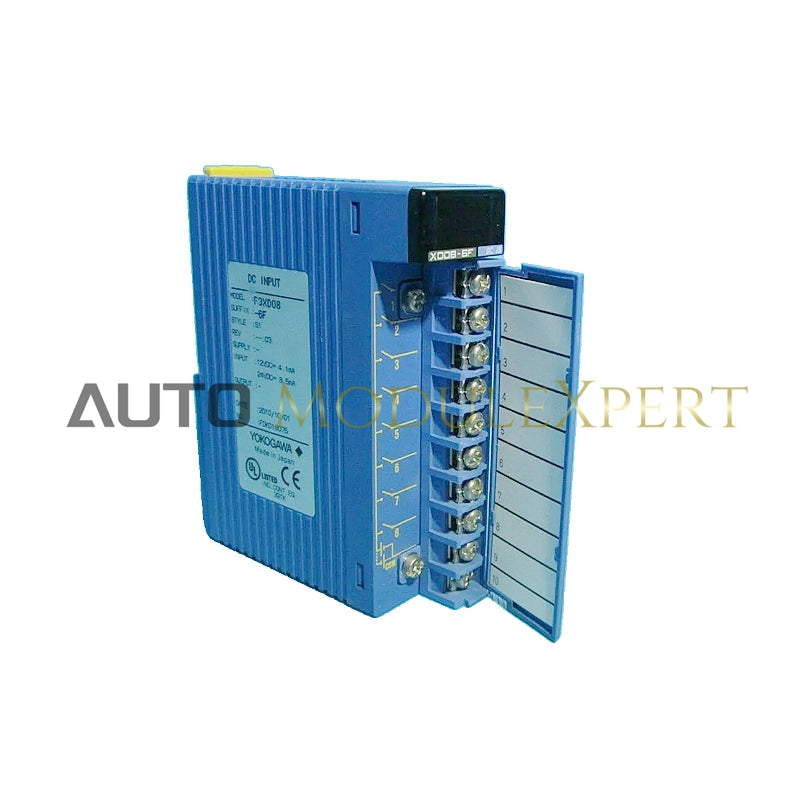

The YOKOGAWA F3XD08-6F DC Input Module is a versatile device designed to provide reliable and accurate digital input capabilities for industrial automation and control systems. It offers a high number of input channels, flexible configuration options, and robust isolation for reliable operation.
Technical Specifications
- Model: F3XD08-6F
- Input Type: DC voltage (sink/source)
- Number of Inputs: 8
- Isolation Method: Photocoupler isolation
- Rated Input Voltage: 12-24 V DC
-
Rated Input Current:
- 4.1 mA/point (12V DC)
- 8.5 mA/point (24V DC)
- Operating Voltage Range: 10.2-26.4 V DC
Operating Voltage/Current:
- ON: 8.0 V DC min., 2.6 mA min.
- OFF: 3.4 V DC max., 1.0 mA max.
- Maximum Ratio of Inputs Turned On Simultaneously: 100%
Input Response Time:
- ON to OFF: Input sampling time can be specified for 5 steps: Always (0μs), 62.5μs, 250μs, 1ms, and 16ms.
- OFF to ON: Input sampling time can be specified for 5 steps: Always (0μs), 62.5μs, 250μs, 1ms, and 16ms.
External Connection
- Connection Type: 10-point terminal block, M3.5 screw
- Configuration: 8 points/common
Interrupt
- Specification: Can be specified for each input point
Current Consumption
- Current Consumption: 40 mA (5V DC)
Weight
- Weight: 130 g
