Overview

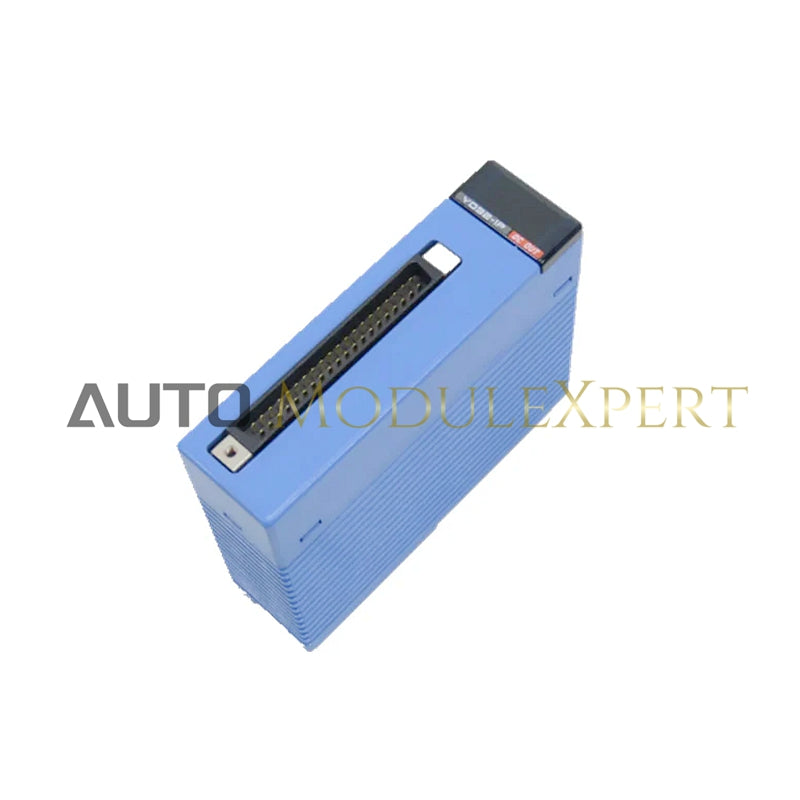

The Yokogawa F3YD14-0N is a transistor output module designed for industrial control systems. It provides 16 transistor outputs, which can be used to control various external devices or processes. Its robust design includes photocoupler isolation to ensure reliable operation and protection in industrial environments.
Technical Specifications
- Number of Outputs: 16
- Output Voltage: 24 V DC
- Output Current: 7 mA per point
- Output Resistance: 3.4 kΩ
-
Response Time:
- ON to OFF: 1 ms
- OFF to ON: 1 ms
- Isolation Method: Photocoupler isolation between input terminals and internal circuit
- Withstand Voltage: 500 V AC for 1 minute
- Current Consumption: 100 mA (5 V DC)
- External Dimensions: 28.9 mm (W) x 100 mm (H) x 83.2 mm (D)
- Weight: 130 g
