Overview

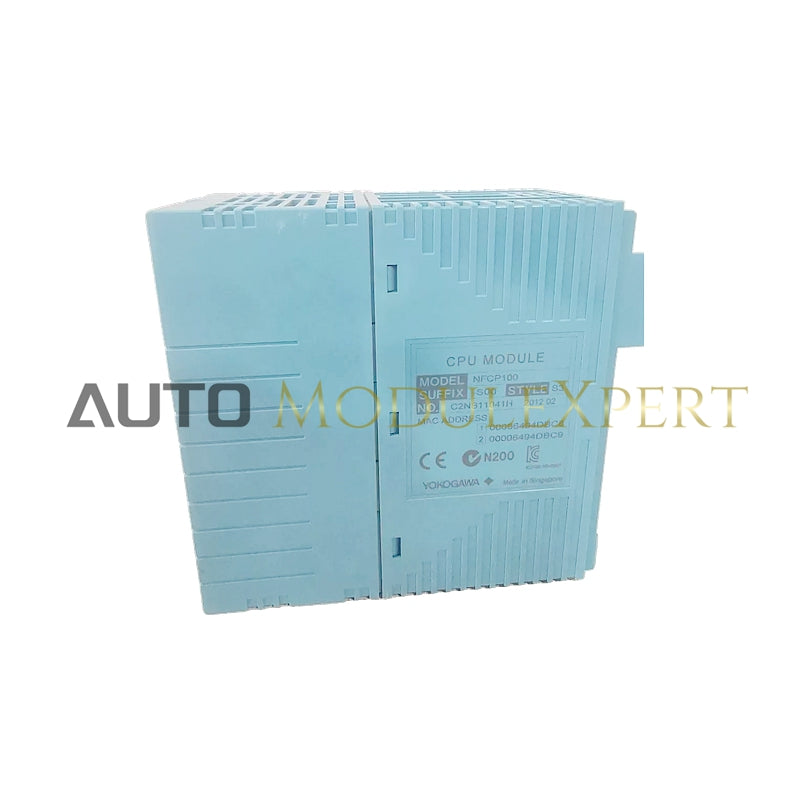

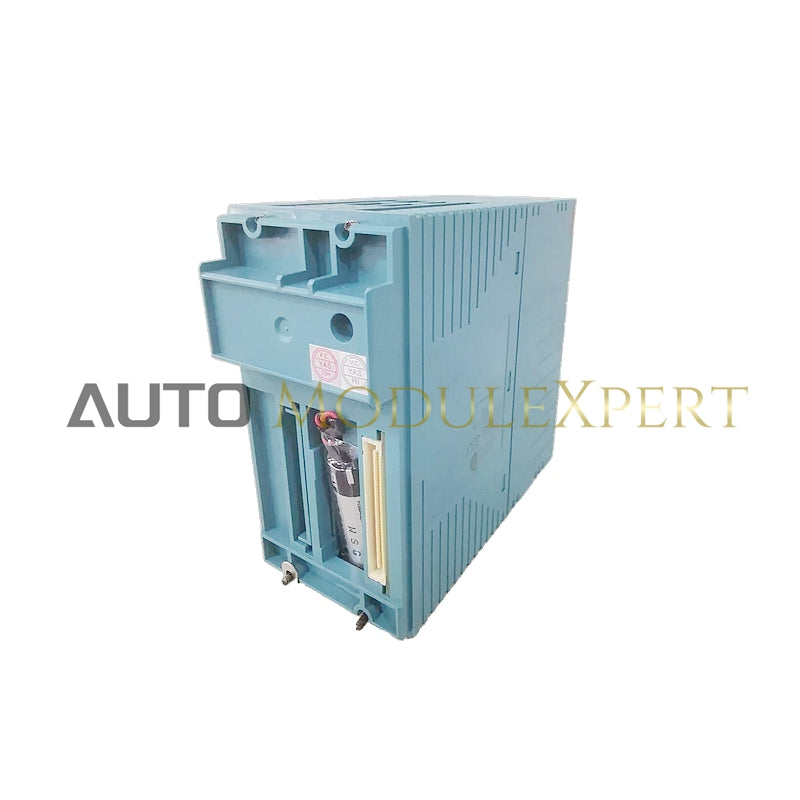

The Yokogawa NFCP100-S00 is a CPU module designed for use in various industrial control applications. It provides central processing and control functions for the Yokogawa Centum CS and Centum VP systems.
Technical Specifications
- Manufacturer: Yokogawa
- Model(s): Yokogawa Centum CS - Centum VP
- Processor: MMX-Pentium 166 MHz
-
Memory:
- Main: 128 MB with ECC
- Static RAM: 1 MB with ECC, backed up by battery
- System Card: 1 slot
-
Serial Port:
- 1 RS-232-C port: D-sub 9 pins, male
- Communication Method: Full duplex
- Synchronization: Asynchronous
- Baud Rate: 0.3, 1.2, 2.4, 4.8, 9.6, 14.4, 19.2, 28.8, 38.4, 57.6, or 115.2 kbps
-
Network Interface:
- 2 Ethernet ports: 100/10 Mbps, 100BASE-TX or 10BASE-T, RJ45 modular jacks
- I/O Interface: SB bus (duplex)
- RAS Features: Watchdog timer, temperature monitor, etc.
- Battery: 2700 mAH lithium battery
-
Display:
- 3 LEDs for CPU status indication
- 2 LEDs for LAN status indication
- Switches: Reset, shutdown
-
Power Supply:
- Supply Voltage: 5 V DC ±5%
- Current Consumption: Max. 1800 mA
- Duplex Configuration: Possible
- Weight: 0.7 kg
-
Size:
- Dimensions (W x H x D): 65.8 x 132 x 145.7 mm
- Occupying Slots: 2
