Overview

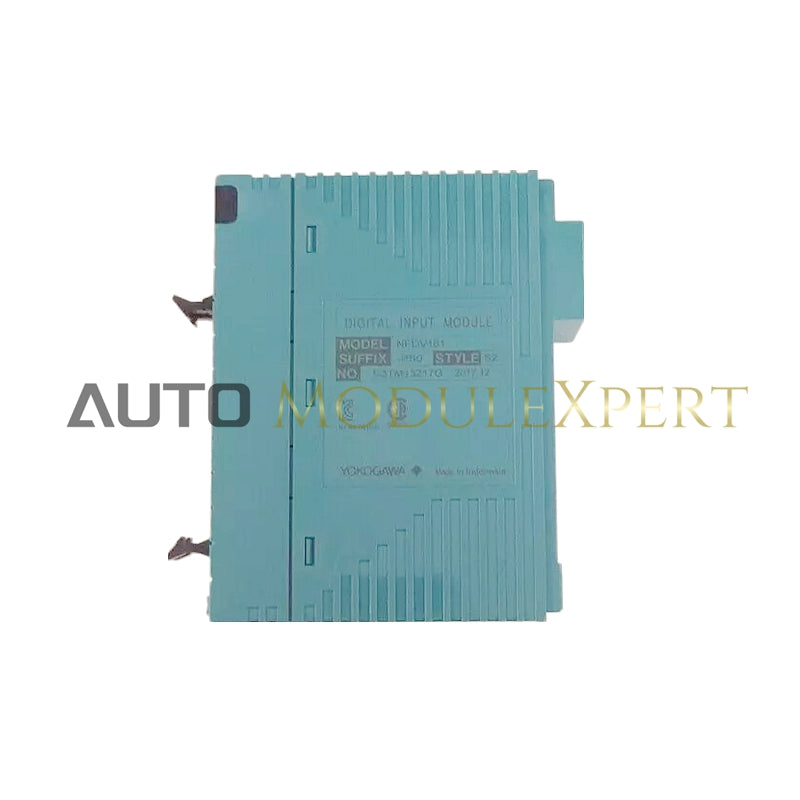

The NFDV161-P50 is an isolated input module designed for industrial applications. It offers robust performance for various monitoring and control tasks, supporting a wide range of input signals and ensuring reliable operation.
Technical Specifications
-
Number of Input Channels: 64, isolated
-
Rated Input Voltage: 24 V DC
-
Input ON Voltage: 20 to 26.4 V DC
-
Input OFF Voltage: 5.0 V DC or less
-
Input Current (at Rated Input Voltage): 2.5 mA ±20% per channel
-
Instantaneous Allowable Maximum Input Voltage: 30.0 V DC
-
Withstanding Voltage:
- Between input signal and system: 2000 V AC for 1 minute
- Between commons: 500 V AC for 1 minute, common minus (-) side every 16-channel
-
Functions:
- Status input
- Push button input
- Function for detecting ON/OFF status
- Function for counting the push button edge
-
Input Response Time: 8 ms or less (for status input)
-
Minimum ON Detection Time: 20 ms (for push button input)
-
Maximum ON/OFF Cycle: 25 Hz (for push button input)
-
Maximum Current Consumption: 550 mA (5 V DC)
-
Weight: 0.3 kg
-
External Connection: MIL connector cable
