Overview

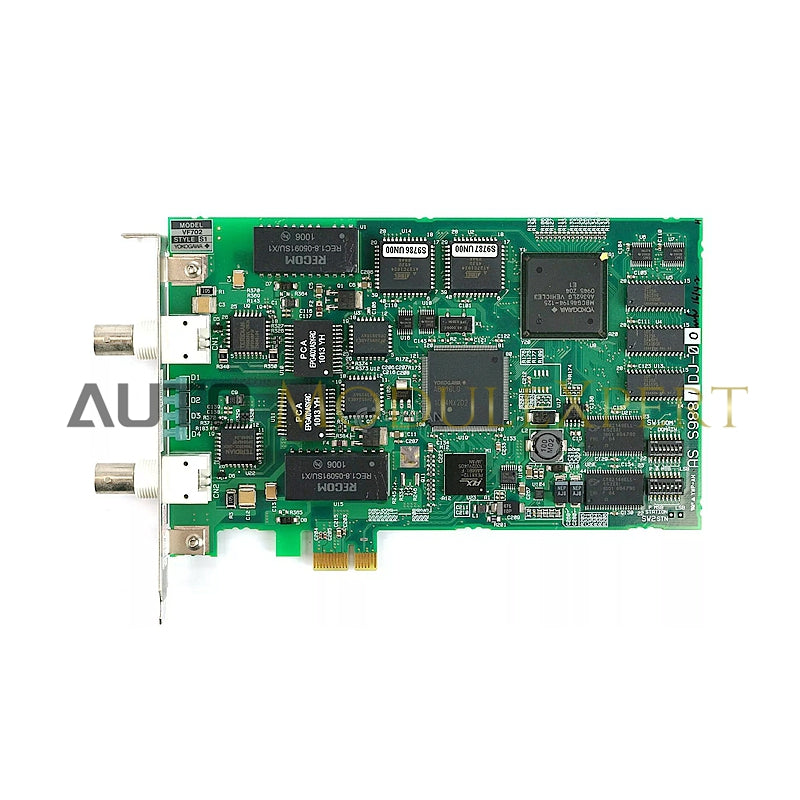

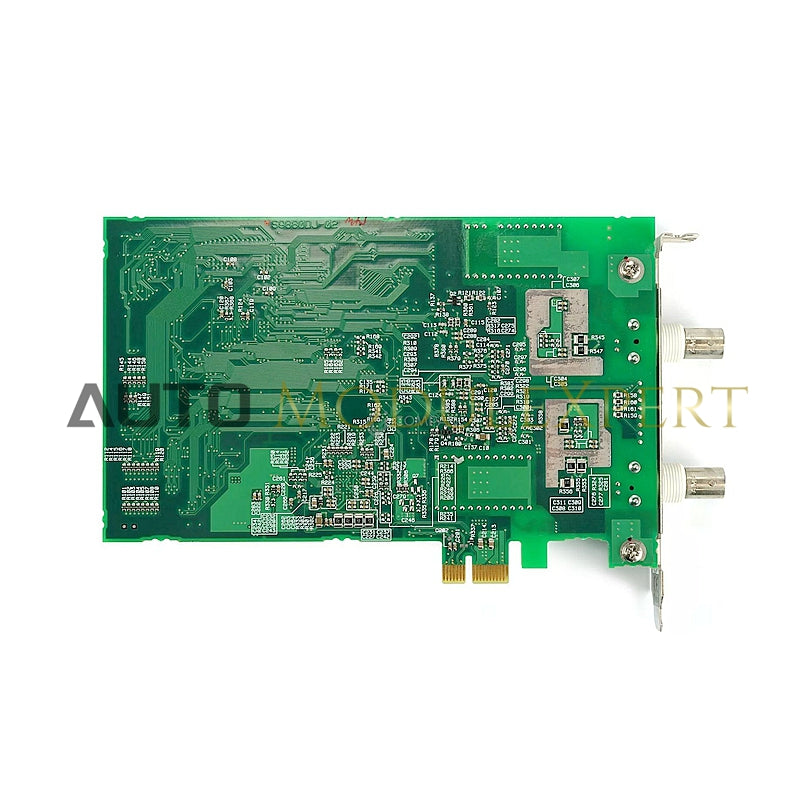

The YOKOGAWA VF702 is a specialized network interface card designed to connect a control system to a 10BASE-2 Ethernet network. This card is primarily used in industrial automation applications where reliable and high-speed data transmission is crucial. The VF702 provides a bridge between the high-speed PCI Express bus within a computer and the slower, but robust, 10BASE-2 physical layer.
Technical Specifications
Physical Interface
- Connection Method: Coaxial cable with Model YCB146, T-type connector
- Transmission Standard: 10BASE-2
- Connector: BNC
- Maximum Cable Distance: 185 meters (when using 10BASE-2 cable only)
PCI Express Interface
- Compliance: PCI Express CEM Specification 1.0a
- Link Width: x1
- Link Speed: 2.5 GT/s
- Slot Compatibility: x1 to x16
- Power Supply: 3.3V ± 9%
- Maximum Current Consumption: 2.4A
Physical Characteristics
- Weight: Approximately 0.15 kg (excluding T-type connector)
- Dimensions: 22 mm (width) x 126.5 mm (height) x 193.54 mm (depth)
Environmental
- EMC Standards: CE Marking, C-Tick Marking
Indicators
- RCV Lamp: Indicates the reception of signals on the control bus.
- SND Lamp: Indicates the transmission of signals on the control bus.
