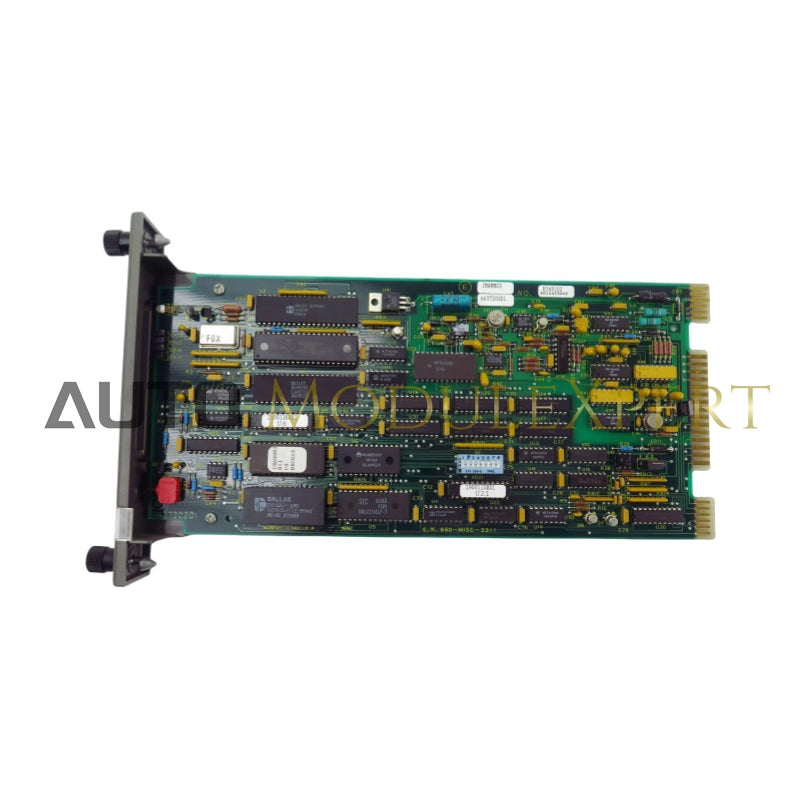

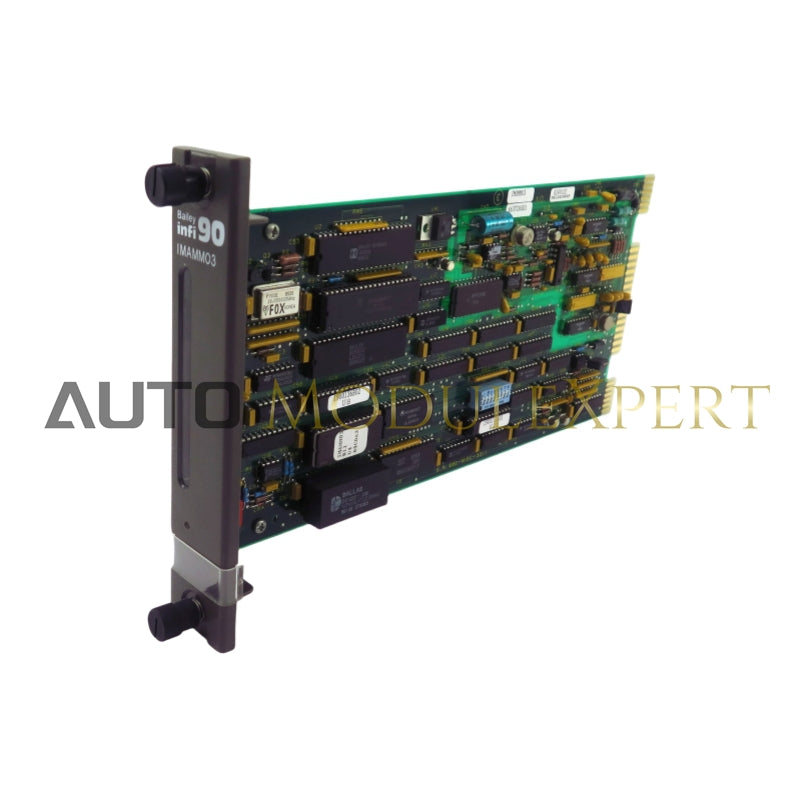

Bailey Infi 90 IMAMM03 - Analog Master Module
Model Type:
- Bailey Infi 90 Analog Master Module
Manufacturers:
- ABB, Bailey
Models:
- ABB Bailey Infi 90
- ABB Bailey Infi 90 and Net 90
Specifications
Memory:
- Random Access Memory (RAM): 24 kbytes
- Read-Only Memory (ROM): 36 kbytes
- Battery-backed RAM (BATRAM): 6 kbytes
Power Requirements:
-
Voltage:
- +5 VDC (±5%)
- +15 VDC (-2.5%, +5%)
- -15 VDC (+2.5%, -5%)
-
Current (Maximum):
- 825 mA (+5 VDC)
- 150 mA (+15 VDC)
- 40 mA (-15 VDC)
-
Power Dissipation (Maximum):
- 4.13 watts (+5 VDC)
- 1.88 watts (+15 VDC)
- 0.45 watts (-15 VDC)
Inputs (Maximum):
-
Type:
- Up to 64 from 4 IMASM01 or 8 IMASM02/03/04
-
Input Span:
- -10 to +10 VDC
- ±5 VDC (Maximum)
-
Common Mode Voltage Range:
- ±50 VDC
-
Common Mode Rejection:
- With IMASM01: -54 dB (±5 VDC Maximum)
- With IMASM02: -75 dB (±50 VAC at 60 Hz peak)
- With IMASM03/04: -100 dB (±250 VDC Maximum)
-
Normal Mode Rejection:
- With IMASM01/02/03/04: -120 dB (±250 VAC at 60 Hz peak)
- Input Impedance: 10 MΩ
Accuracy (at 25°C / 77°F):
-
Without Slave Accuracy:
- IMASM01: ±0.01% of span (typical)
- IMASM02/03/04: ±0.025% of span (maximum)
-
With Slave Accuracy:
- IMASM01: 0.1% of allowable input span
- IMASM02/03/04: 0.05% of 200 mV input span using an external calibration source
-
Cold Junction Accuracy:
- ±0.125% of 200 mV input span (using internal calibration source)
-
Aging Effect:
- 0.025%/year
-
Temperature Effect:
- ±0.00035%/°C (±0.00019%/°F)
Additional Specifications:
- A/D Resolution: 16 bits (guaranteed 15 bits)
-
Guaranteed Linearity:
- IMASM01: -100 dB (typical), -65 dB (minimum)
- IMASM02/03/04: -85 dB (typical), -65 dB (minimum)
-
Cross Talk:
- With IMASM01: -100 dB (typical), -65 dB (minimum)
- With IMASM02/03/04: -85 dB (typical), -65 dB (minimum)
Dimensions & Shipping Information:
-
Dimensions:
- 7.0" x 2.0" x 13.0" (17.8 cm x 5.1 cm x 33.0 cm)
-
Weight:
- 0 lbs 12.0 oz (0.3 kg)
Additional Information:
- Tariff Code: 8538907080
- Country of Origin: United States
