Overview

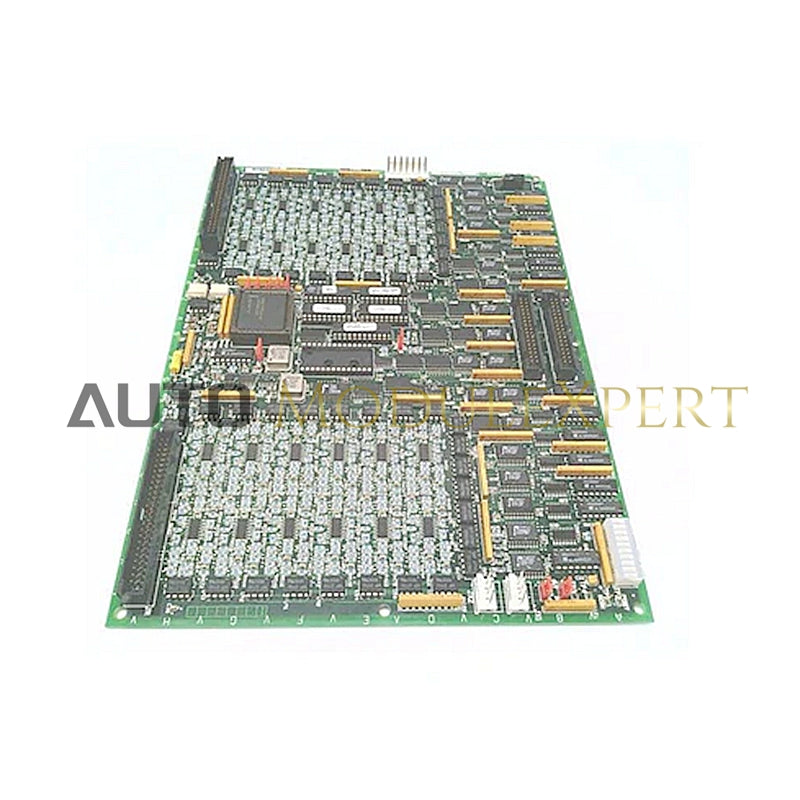

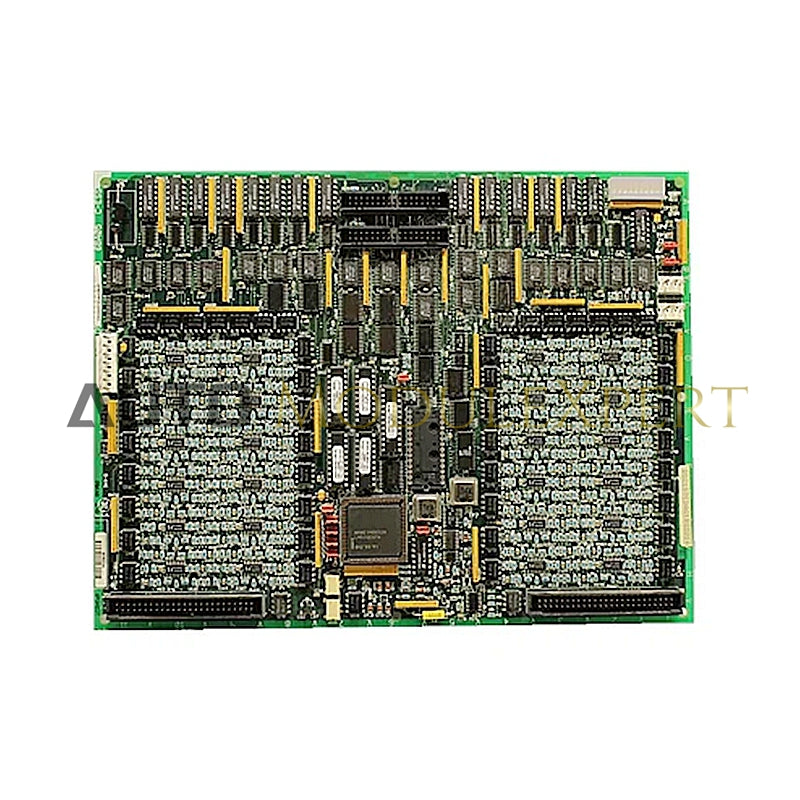

The DS200TCDAH1BHD Digital I/O Board is part of General Electric's Mark V Turbine Control System Series. It is a legacy product designed to handle digital input and output functions, incorporating GE's Speedtronic control system technology, which was introduced in the 1960s.
Technical Details
- Manufacturer: General Electric
- Product Series: Mark V
- Functional Part Number: DS200TCDAH1BHD
- Functional Description: Digital I/O Board
Hardware
-
Jumpers:
- 8 jumpers for configuring the board
- Jumper IDs: JP1 to JP8
-
LEDs:
- 1 LED on the side of the board
- 1 block of 10 LEDs for monitoring
-
Connectors:
- 2 x 3-pin connectors
- 2 x 50-pin connectors
Installation Tips
-
Jumper Configuration:
- Before installation, document the jumper positions from the old board.
- Set jumpers on the replacement board to match the old board's configuration.
-
Factory Default:
- Jumpers are set to default positions when shipped.
- Some jumpers are not customer-configurable and must remain in the factory position.
