Overview

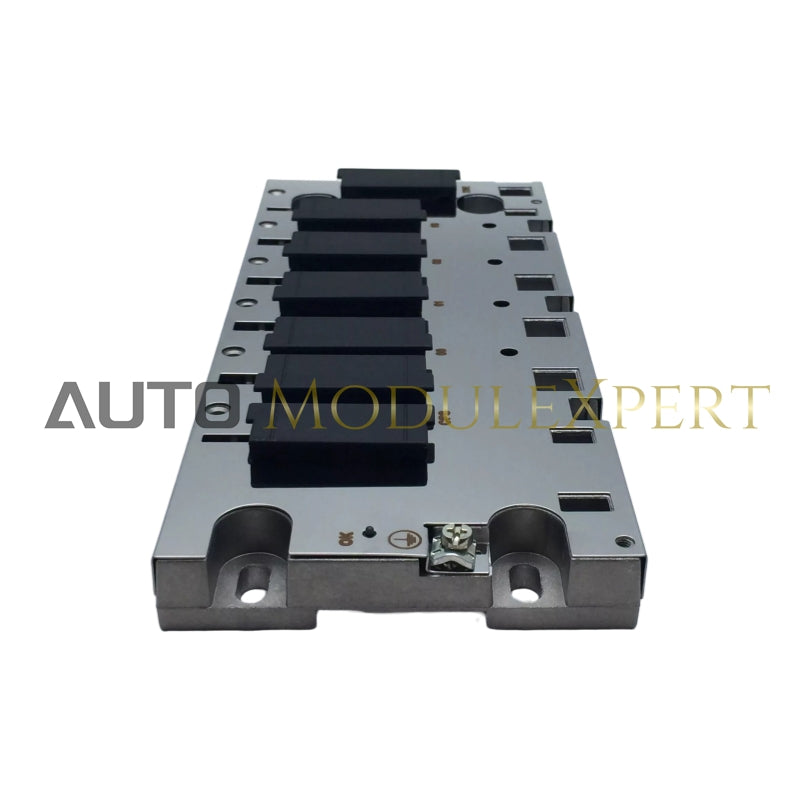

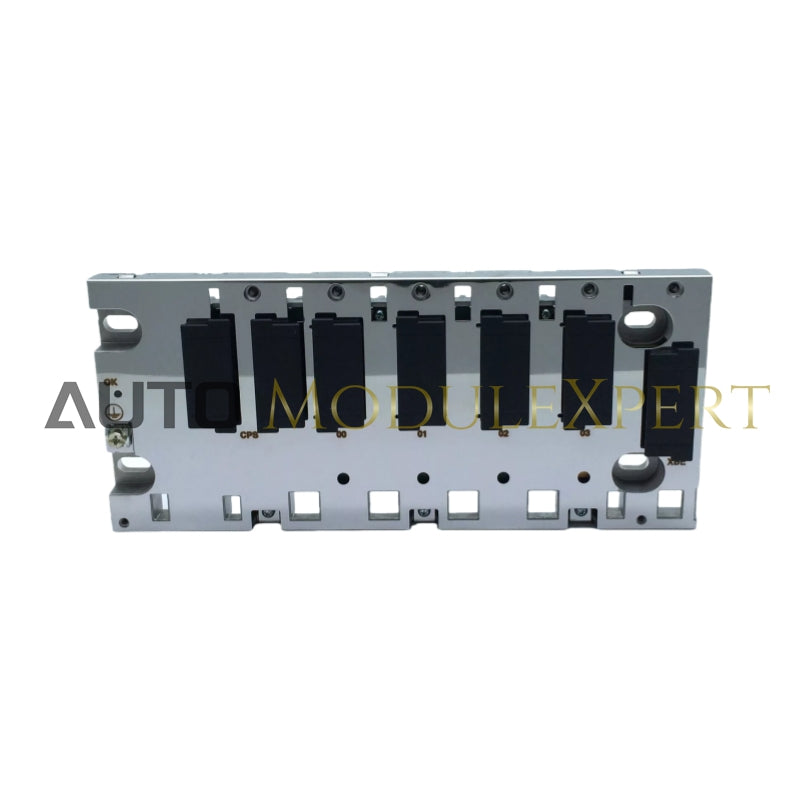

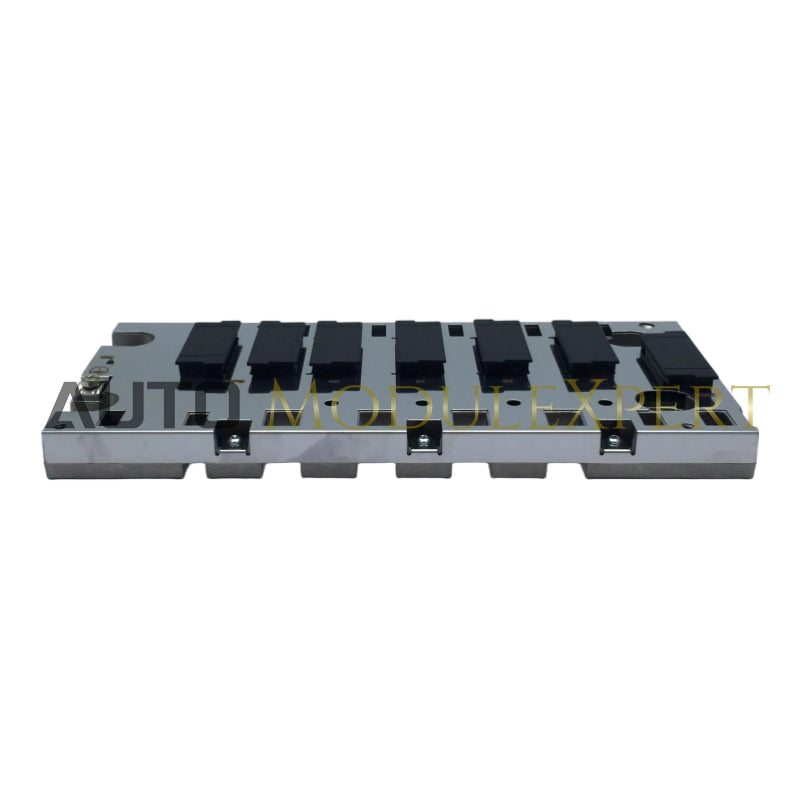

The Modicon X80 Ethernet Backplane Rack is part of the Modicon X80 range, designed as an accessory for the Modicon M580 and M340 Programmable Automation Controllers (PAC). This backplane features a 4-slot dual Ethernet and X-bus architecture, providing flexibility for mixed module configurations. It offers robust performance, high quality, and is based on the latest technology innovations. With its 2000000 hours MTBF, the product is highly reliable for medium to large process applications.Specifications
- Main Range: Modicon X80
- Accessory Type: Ethernet Backplane Rack
- Slots: 4 (Ethernet and X-bus connectors for mixed modules)
-
Compatibility:
- I/O module
- BMX processor
- Specific application module
- BMXCPS power supply
- BME processor
-
Fixing Mode:
- 4 screws (0.17–0.25 in / 4.32–6.35 mm)
- 4 M6 screws
- Clips (35 mm symmetrical DIN rail)
- Electrical Connection: 1 connector (XBE) expansion module
-
Current Consumption:
- 49 mA at 3.3V DC
- 118 mA at 24V DC
-
Power Consumption:
- 162 mW at 3.3V DC
- 2.8 W at 24V DC
- MTBF Reliability: 1,588,025 hours
- Net Weight: 0.705 kg (1.554 lb)
- IP Protection: IP20
- Operating Temperature: 0–60°C (32–140°F)
- Relative Humidity: 5–95% (without condensation)
-
Standards Compliance:
- 2014/35/EU (Low Voltage Directive)
- 2014/30/EU (Electromagnetic Compatibility)
Ordering and Shipping Details:
- Category: US1PC3418160
- Discount Schedule: PC34
- GTIN: 3595864174037
- Returnability: Yes
- Country of Origin: France
Packaging Information:
-
Package 1 (PCE):
- Number of Units: 1
- Height: 6.6 cm (2.60 in)
- Width: 15.0 cm (5.91 in)
- Length: 32.5 cm (12.80 in)
- Weight: 702.0 g (24.76 oz)
-
Package 2 (S04):
- Number of Units: 13
- Height: 30.0 cm (11.81 in)
- Width: 40.0 cm (15.75 in)
- Length: 60.0 cm (23.62 in)
- Weight: 10.086 kg (22.24 lb)
